8 Gang Toutch Switch Panel - JOYHO Automatic Dimmable Panel, On-Off Led Multifunction Switch, Pod Electronic fuse System Circuit Control Box with Harness and Stickers for RV Marine Car Vehicles Truck
About this product
*8 GANG SWITCH PANELS - Operating voltage: 12V; maximum power rating: 1200W; maximum current rating: 60A. It can control 8 LED lights and fully operate your boat marine accessories and other electronic equipments at the same time. It has high sensitivity, stability and strong anti-interference ability.
*Safety Protection - Multi-protection system such as Overload protection and resettable 100 Amp circuit breaker will providing high safety performance. Reverse polarity protection, over-voltage protection and over-current protection, providing all connected lights & accessories work safely.
*ALL IN ONE DESIGN - Adopting safe IGBT technology instead of traditional relay designed,the more compact led switch panel control box only has a 3 x 4 footprint totally space saving and suitable for all 12V/24V DC device such as marine, car, truck, off-road, ATV/UTV, boat, yachts and Caravans etc.
*Backlits Automatic Dimmable - Newest 8 gang marine switch panel have automatic dimmable feature, the backlight brightness of the switch panel will change according the brightness of environment. The brighter the environment, the brighter the panel.
*BUY WITH CONFIDENCE - 2 years quality assurance and 24 hours good after-sales service. feel free contact us for technical, installation and use. If you are not 100% satisfied with your purchase, simply contact us for a replacement or refund.
Description
FEATURES:
- Multi dimensional design, simple and fashionable, light weight.
- The length is 115mm, the width is 66mm, the structure is compact and does not occupy the installation space.
- Various signs can be customized by personal style.
- PVC soft material button surface, use 50000 times without fracture.
- The front of the product has IP65 advanced protection, which is completely rainproof and dustproof,will not result in loss of function.
- A red button is designed in the middle to turn the systm on and off with one button to face the emergency calmly.

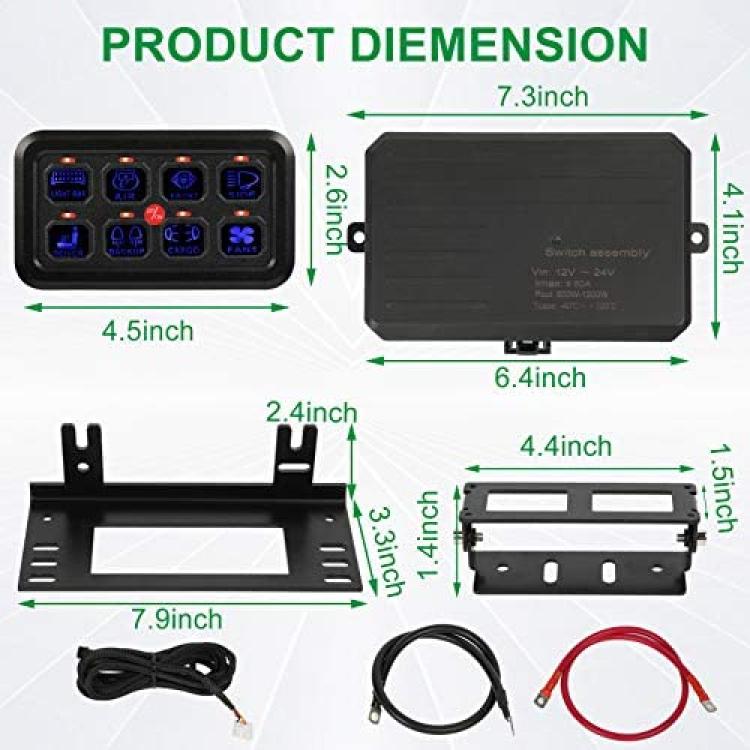

SPECIFICATIONS:
- Panel Size: 4.5*2.6*0.5 inch
- Circuit Box Size: 7.54*1.3*4.1 inch
- Panel Material: High quality ABS
- Circuit Box Material: Die-case aluminum
- Input Voltage: 12V / 24V DC
- Maximum Power: 600W at 12V / 1200W at 24V
- Maximum Current: 60A
- Operating Temperature: - 40° C ~ + 150° C
- Maximum Instantaneous Current: 100A
How to connect the red and white cables?
1. Connect the red cable to the width lamp. If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
2. Connect the white cable to a momentary push button to adjust through three different brightness levels of the switch panel. if you just want to have the most brightness switch panel, you can disconnect it.

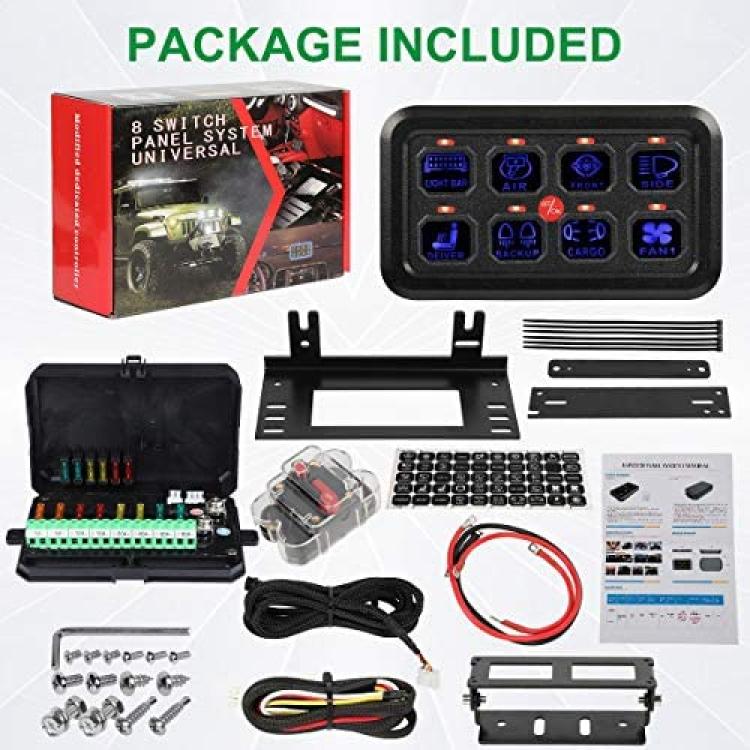

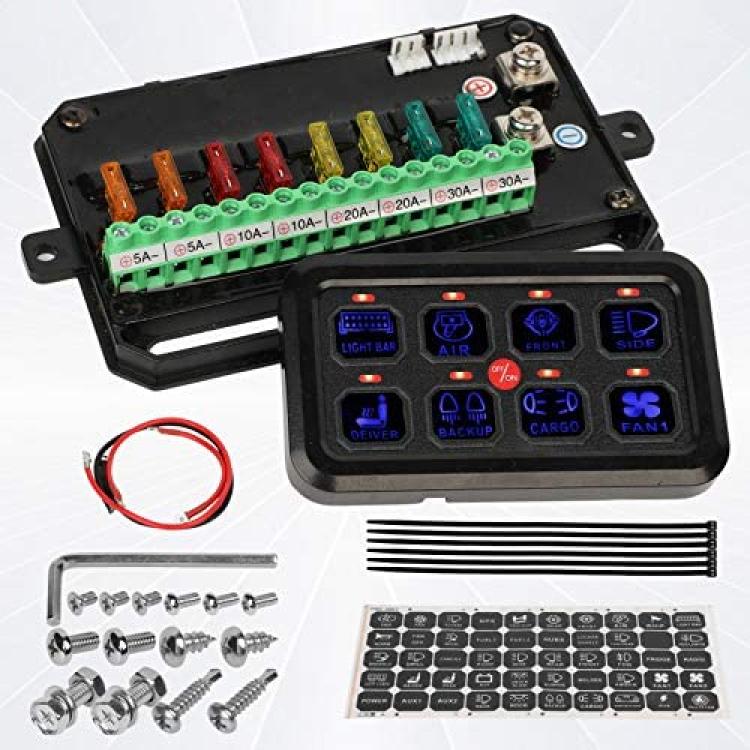

What is in the box:
1 x 8 Gang Switch Panel Screen
1 x Circuit control box

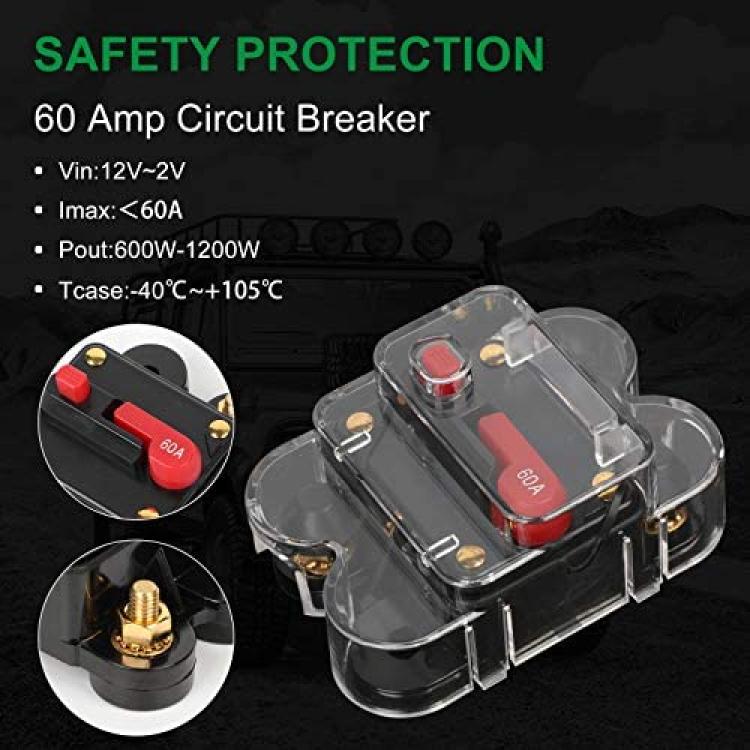

1*60A circuit breaker
10 x cable tie
50 x Self-Adhesive Label
1 x User Manual
Necessary Mounting Brackets
screw sets & wires
We offer 2 Years Warranty and superior after-sales service?if you are not 100% satisfied with your purchase, simply contact us for a replacement or refund. Wish you a happy shopping.
