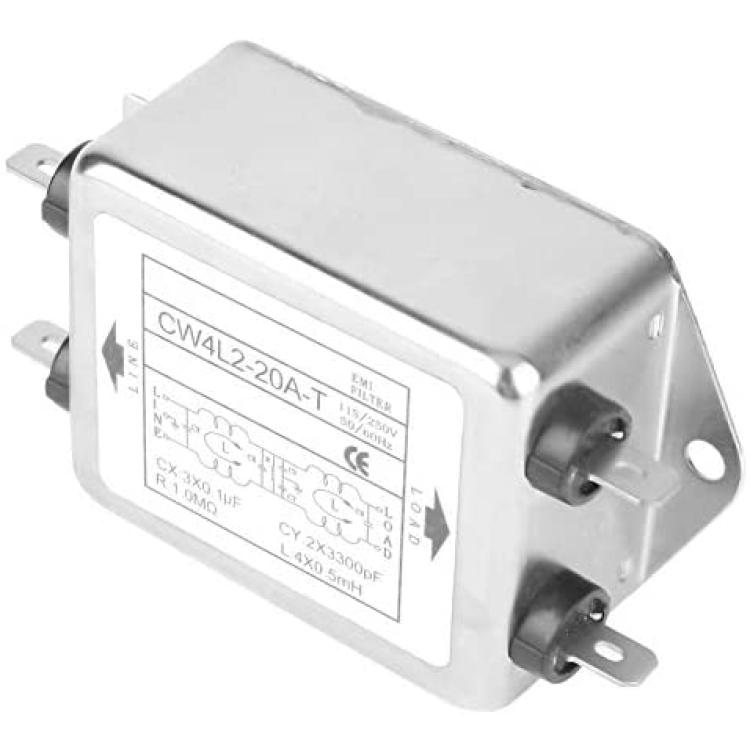

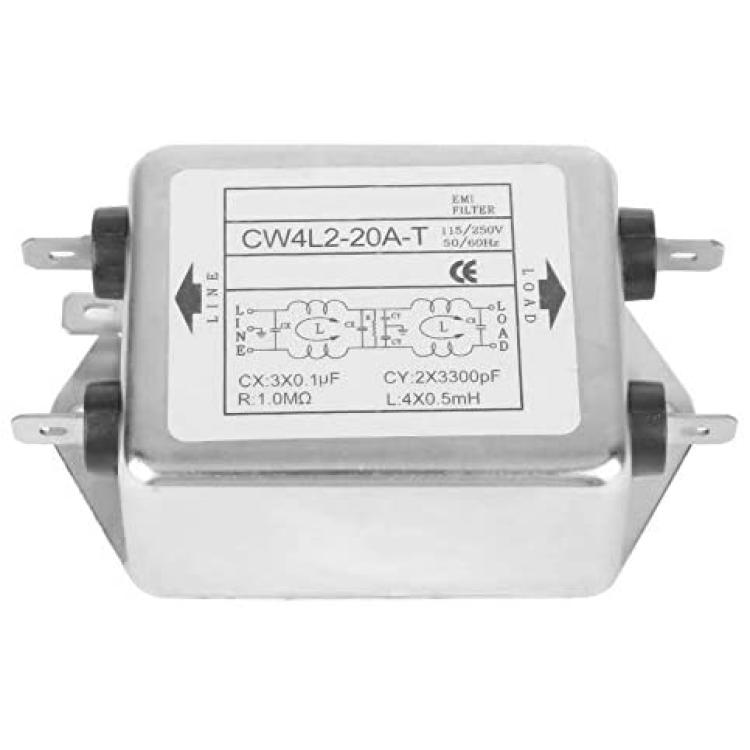

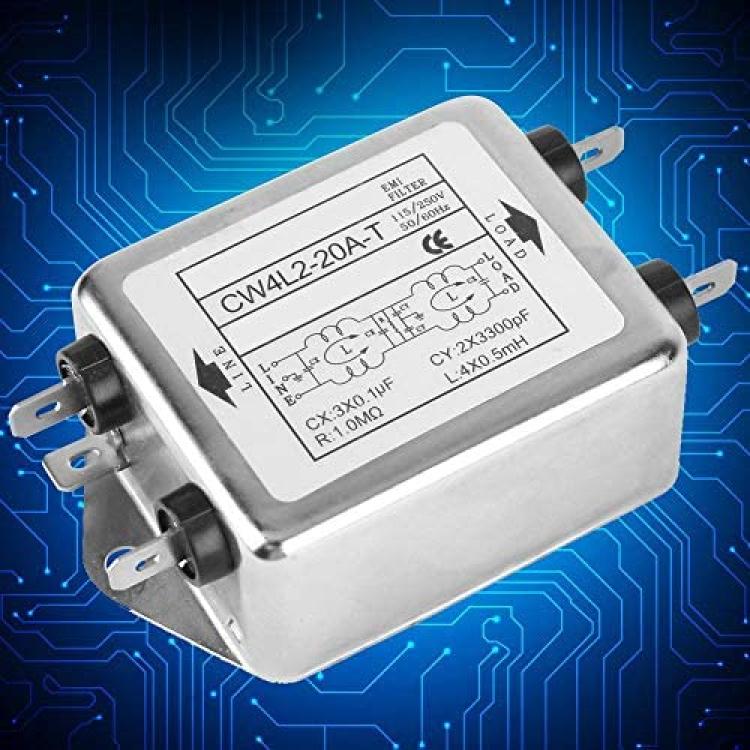

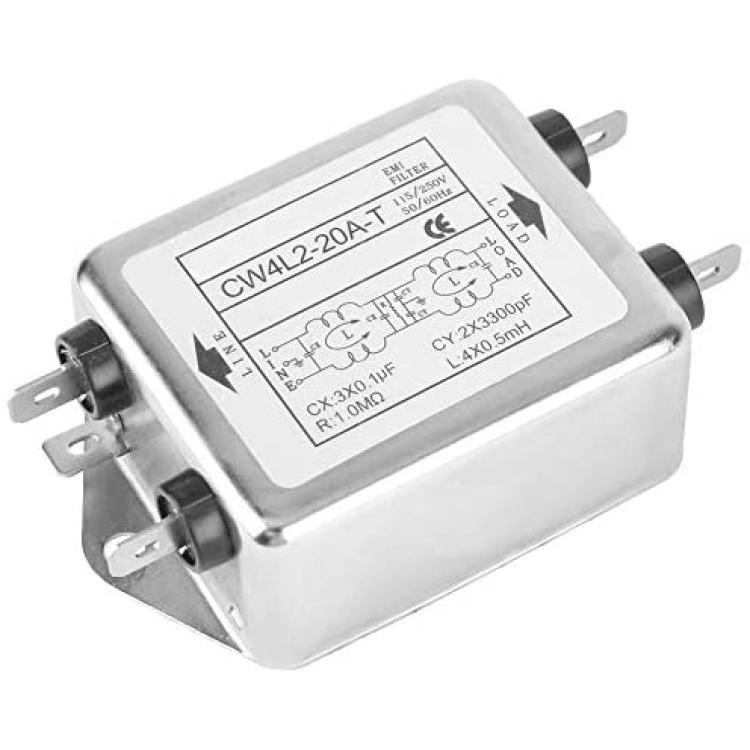

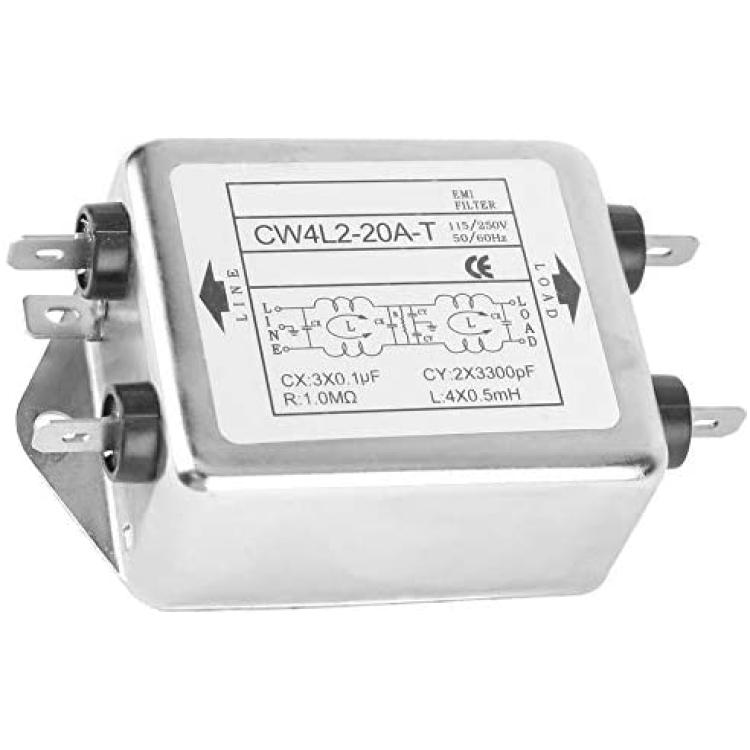

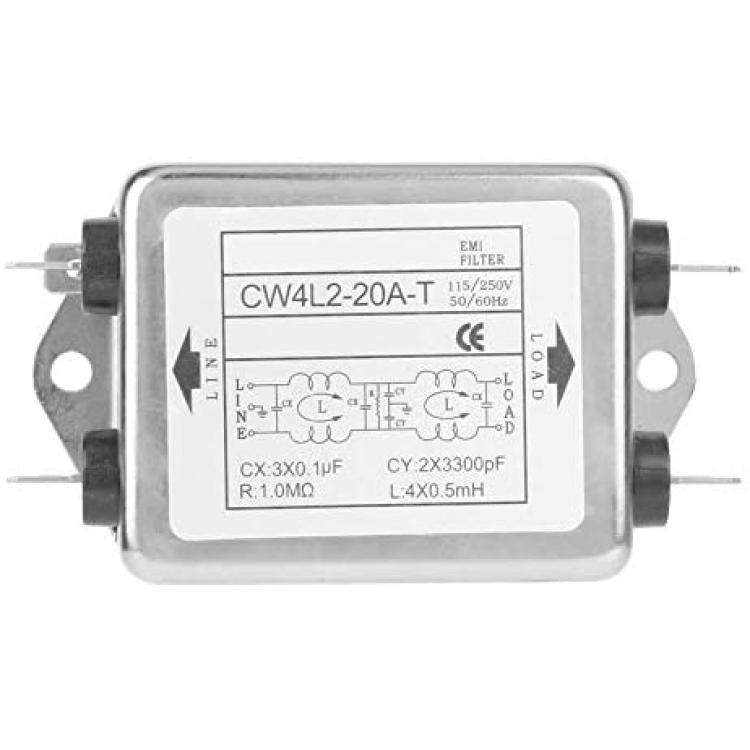

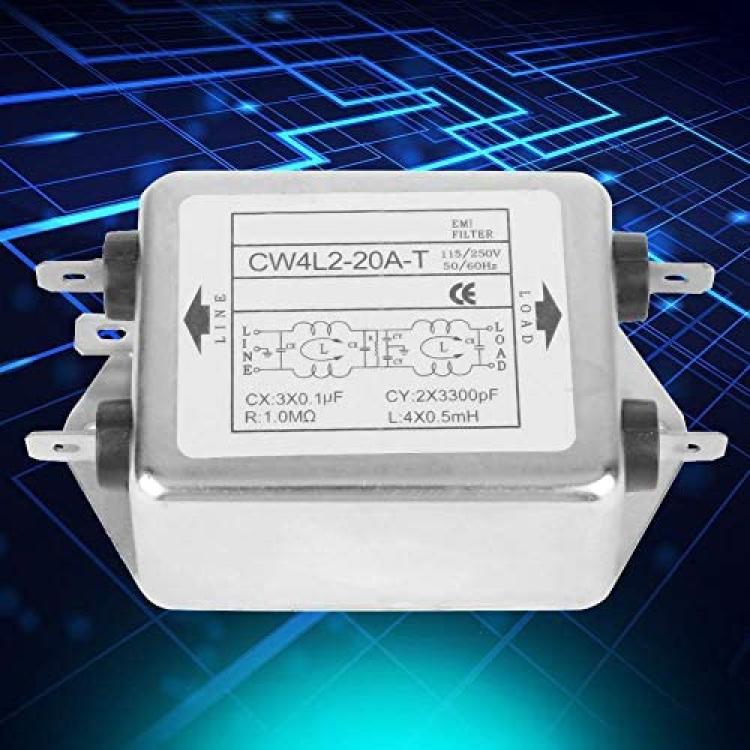

FTVOGUE CW4L2-20A-T Power Line EMI Filter Terminal High Performance Power Purifier Noise Suppressor 115V/250V 20A 50/60Hz

FTVOGUE CW4L2-20A-T Power Line EMI Filter Terminal High Performance Power Purifier Noise Suppressor 115V/250V 20A 50/60Hz

Product Code: HSM45665
Availability: In Stock

US$8.84

- +

For Bulk Order, Get Better Price.

About this product

*✿ The biggest effect of the filter is to improve the stability of the equipment and prolong the service life of the equipment.

*✿ Only if the interference source on the electric path corresponds with the filter frequency, it have the best effect.

*✿ Applications: digital equipment, computers and peripherals, measuring instruments, factory automation equipment, office automation equipment, such as copy and fax machines.

*✿ High performance power supply EMI filter for most digital devices (especially switching power supplies) for suppressing continuous and intermittent pulse interference.

*✿ Good common mode and differential mode suppression characteristics, suitable for white household appliances with inverter and inverter for control system.

Description

Specification:
Rated voltage: 115/250V
Working frequency: 50/60Hz
Rated current: 20A
Withstand voltage test: 1450V DC 2sec (line to line L to L)
Withstand voltage test: 1500V AC 2sec (line to ground L to G)

Package list:
1 * Power Filter

Note:
The actual product color may deviate from the photo due to light.
There may be a slight deviation in the measurement of product.
