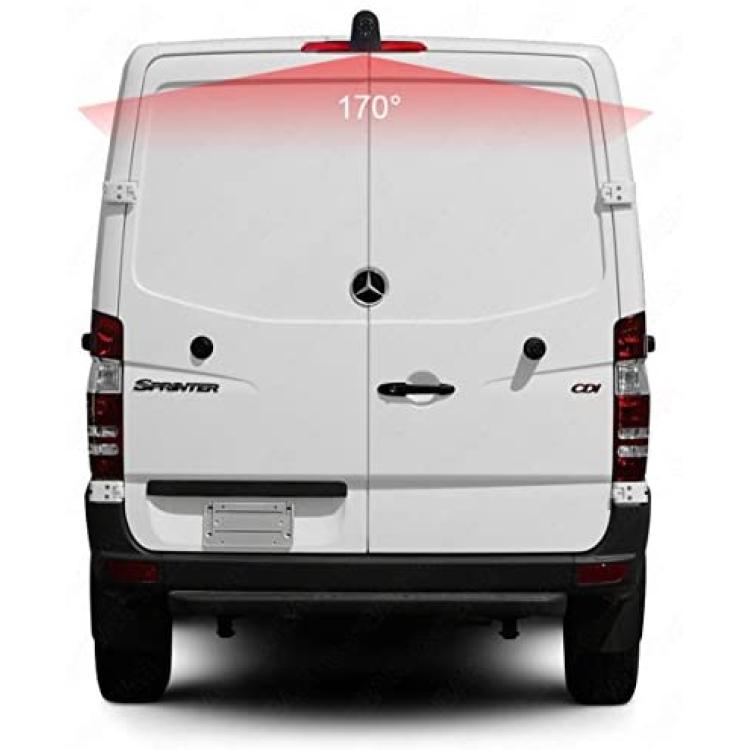

Car Third Roof top Mount Brake lamp Camera Brake Light Replacement Rear View Backup Camera for Mercedes Sprinter W906 Transporter 2006-2018/ VW Crafter Transporter 2006-2016

Dear customer,Please must check the camera size and appearance before place a order, see if can fit your car license plate lamp place size and appearance! Because the same car model in different countries may have some difference,please check the camera size and compare the installation of your car carefully to avoid mistake.

This product could fit for all below models as expected:

Mercedes Sprinter (W906) from 04/2006

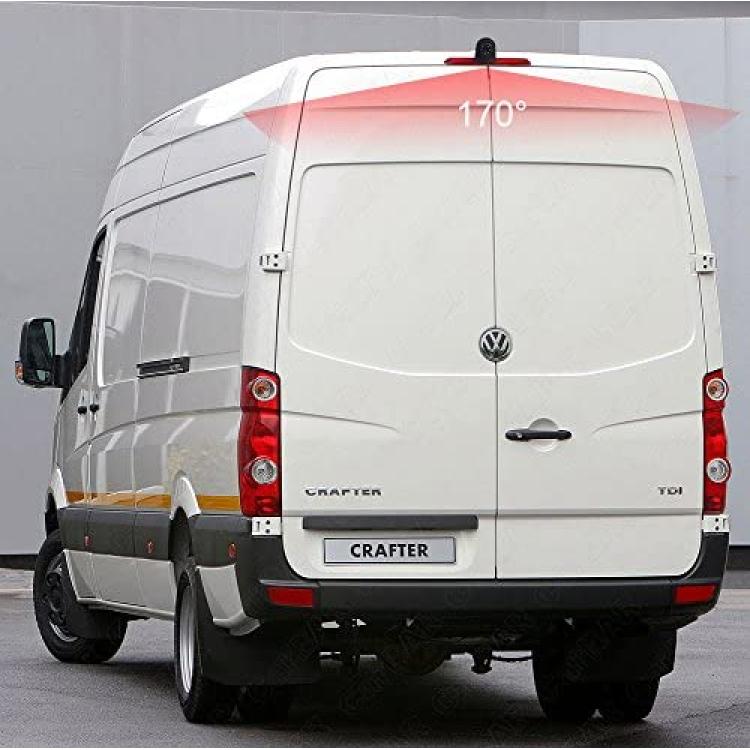

VW Crafter (2EC1 / 2EC2 / 2EKE1 / 2EKE2 / 2EKZ) from 04/2006

Technique Parameter:

1. TV system: NTSC (if you need PAL, please leave a message)

2. Resolution: 480/520 TV lines

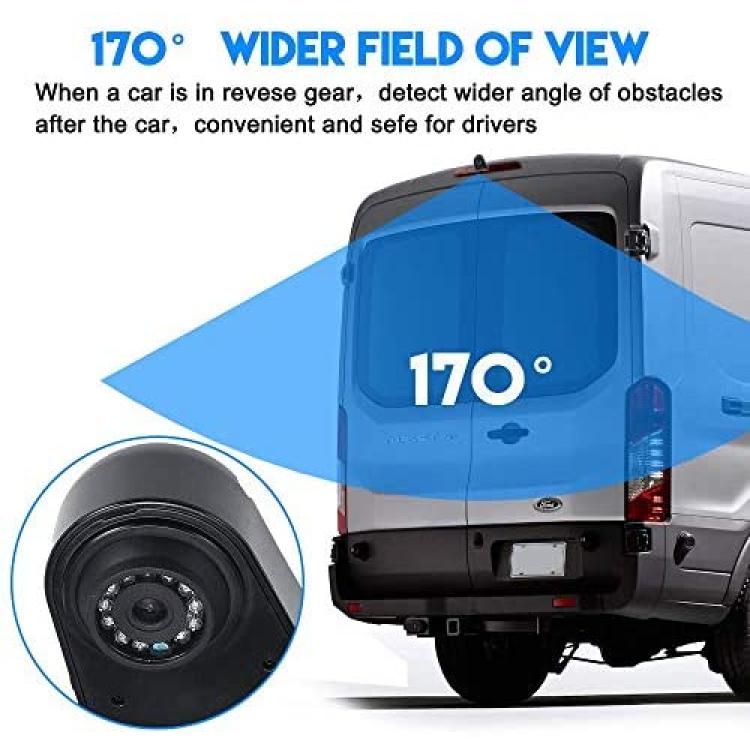

3. Lens angle:170°

4. S/N ratio: more than 48db(AGC-OFF)

5. Video Color: Colorful

6. Video Output: 1.0Vp-p,75?

7. Image Device: 1/4 inch color

8. Sensing area: 5.78 x 4.19mm

9. Sync. system: internal

10.Power supply: DC 12V

11,White Balance: Auto

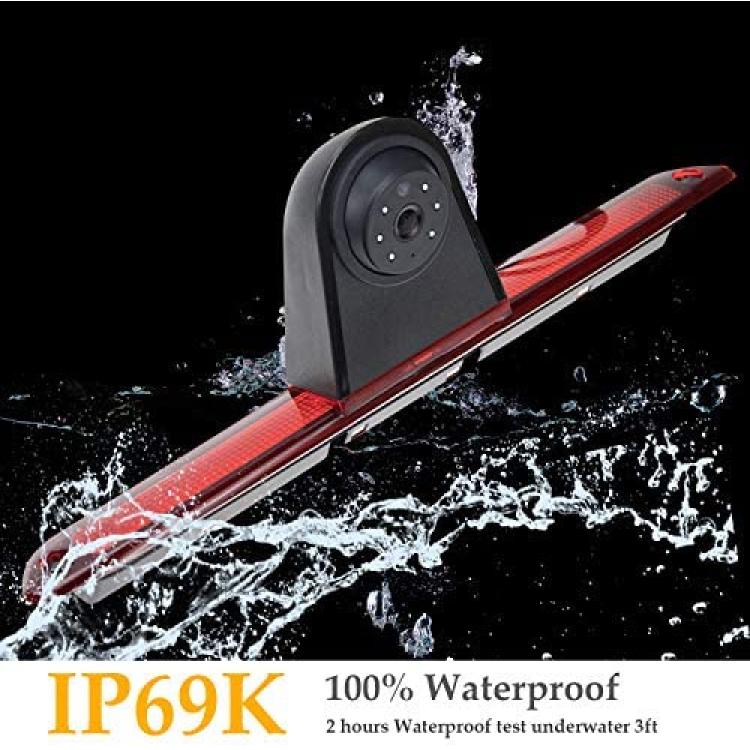

12.Waterproof Class: ip 66

13.Effective pixels: 628 x 586 Pixels

14.Electronic Shutter: 1/60-1/10000 seconds

15.Current Consumption: ?150mA

16.Current consumption: 90mA Max

17.Storage temperature:-40°C to +60°C, RH95% Max

18.Minimum illumination:0.3Lux/F1.2

19.Operating Temperature:-30°C to +50°C, RH95%

Package Content:

1 x CCD CAR Camera

1 x 6M video cable

1 x 1M power cable

1 x User Manual
