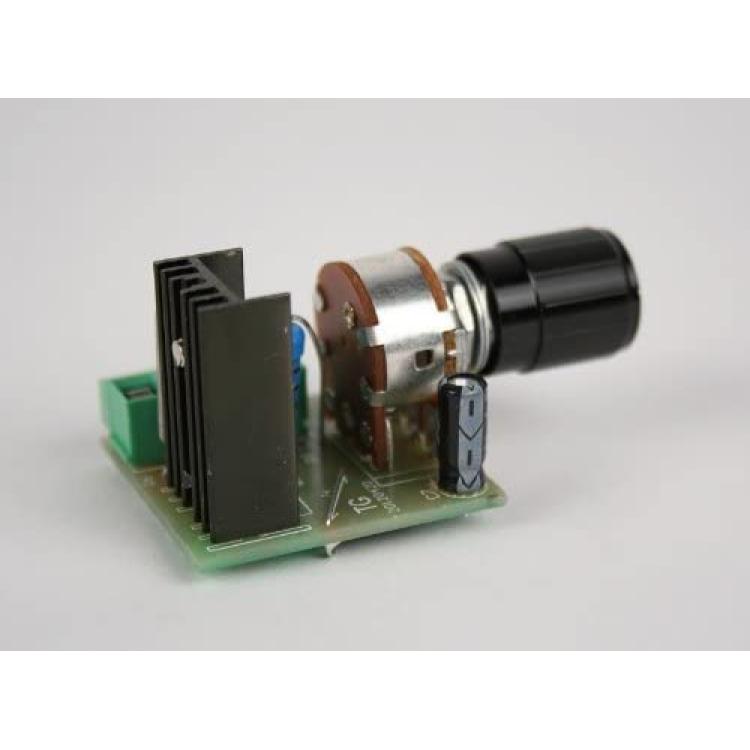

Pilot 24 Volt LED PWM Dimmer, 7 Amp Capacity, DC Lighting Dimmer Controller for LED Incandescent Auto RV Marine Aircraft Interior Lighting
Availability: In Stock
About this product
*Finally an easy-to-install, on/off switch and dimmer controller for interior lighting inside your RV, Truck, Auto, Boat or Aircraft.
*24 Volt Pulse Wave Modulation (PWM) Electronic Dimmer for DC Lighting Applications and DC motor controller

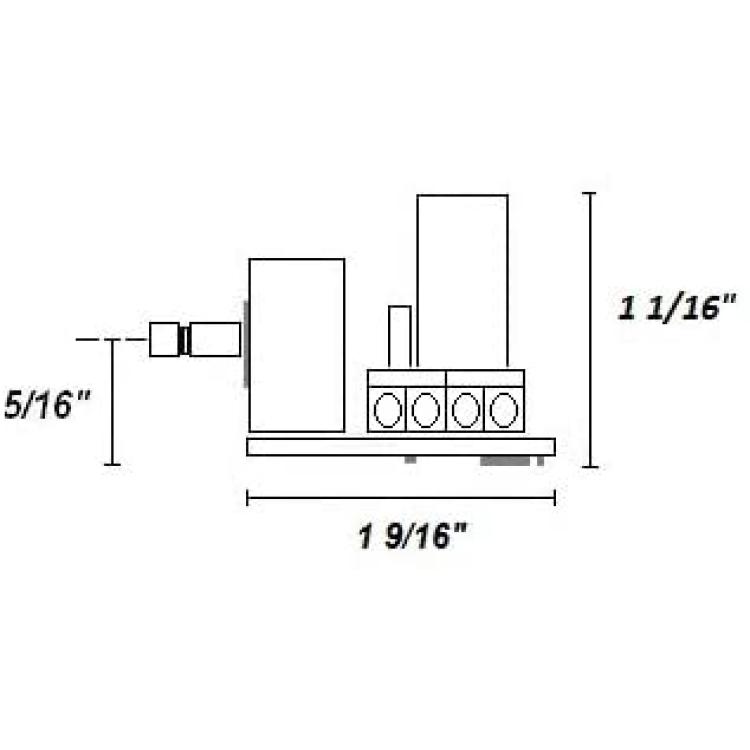

*Self-contained 1.75" x 1.2" format. 9/32 (7mm) shaft and screw-down input and output terminals
*Integrated on/off switch with smooth control rheostat; high-quality push-on knob
*7.0 Amp Capacity (168W at 24VDC) Dimmer with precise PWM control of LED and Incandescent Lighting
Description

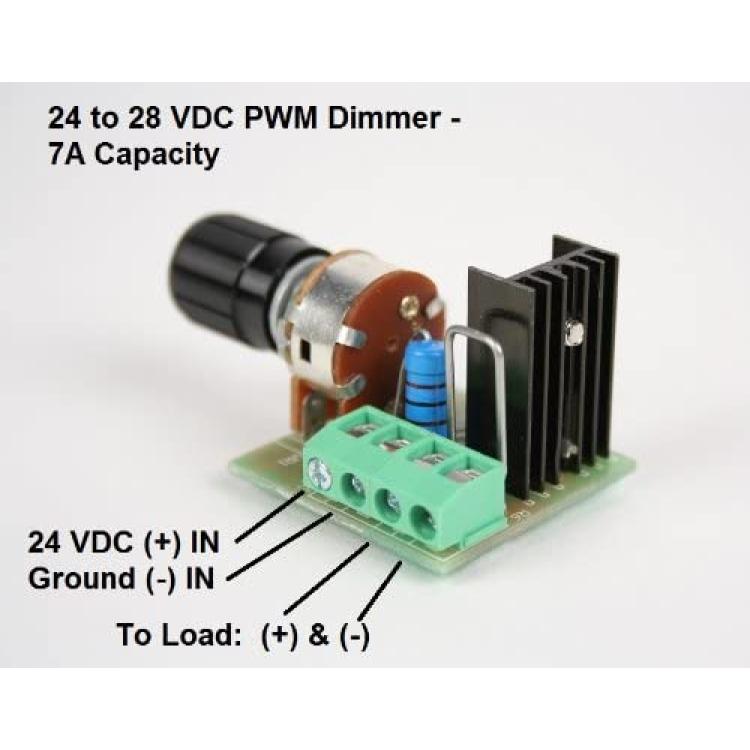

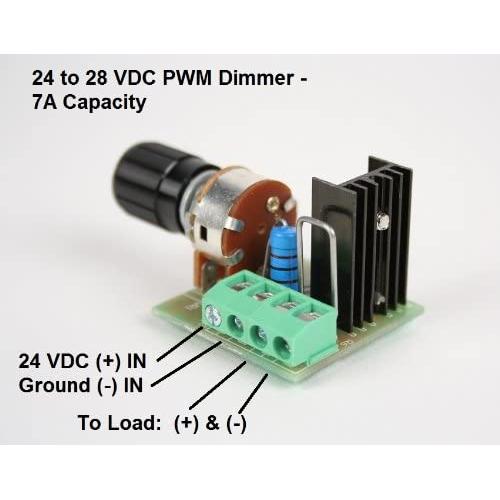

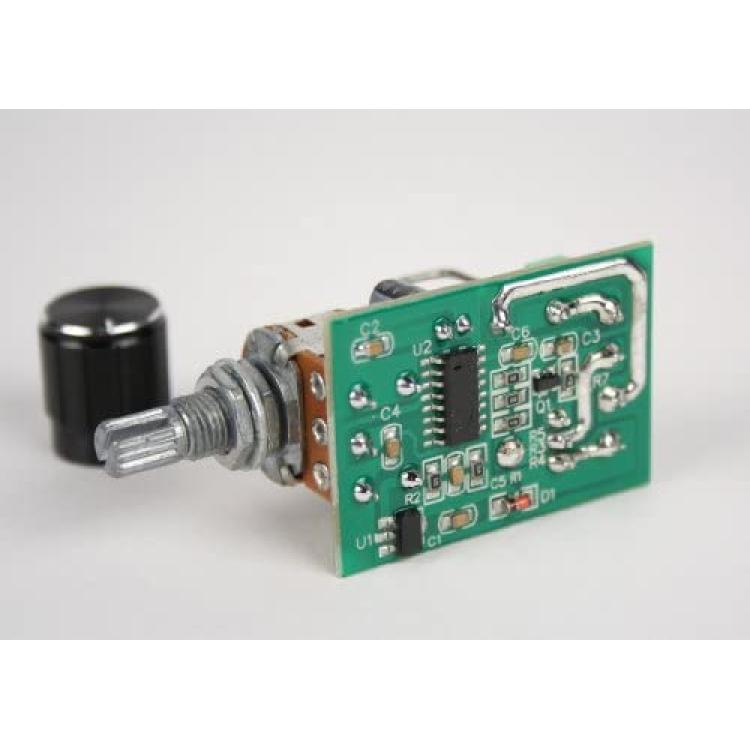

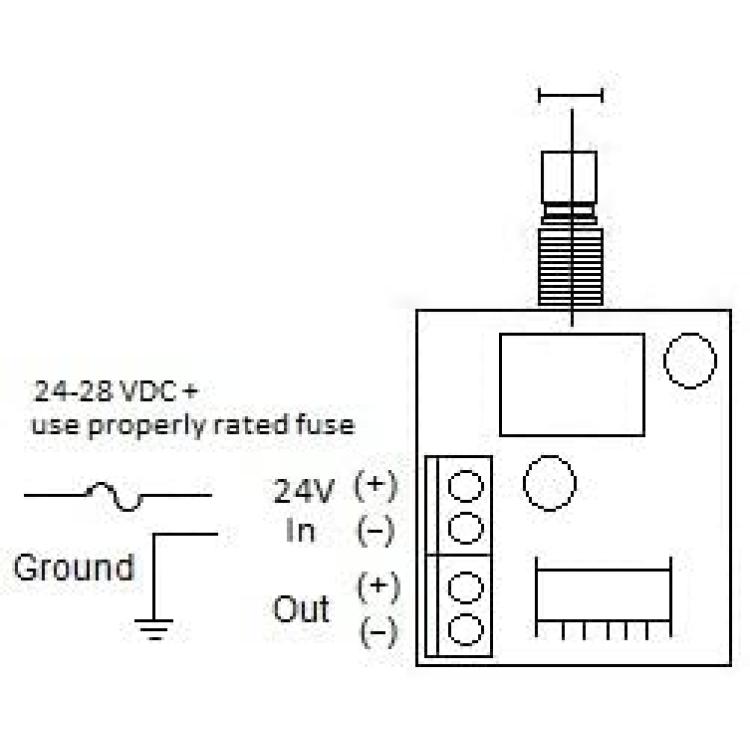

This self-contained 24VDC dimmer and on/off switch is designed for precise control of interior accent lighting in your auto, truck, RV, boat or aircraft. This version includes a 7 AMP Capacity and built-in Over-Current protection, that prevents damage to the dimmer, even if loads exceed the dimmer's capacity. With a 9/32 (7.144mm) shaft and easy screw-down terminals, you can install this controller in minutes. Its PWM (pulse width modulation) design is the preferred method to control LED lighting for light strips, map lights, under panel, baggage or utility lighting. It supports up to 168 Watts (at 24 VDC) so you can use this controller for many low current LED products. The dimmer ships direct from us with an instruction manual to assist your installation. Note that the dimmer should always be used with an in-line fuse between your power source and the dimmer, to protect your lighting devices and the dimmer. The dimmer's design includes reverse polarity and over-current and protection and it's circuit board is conformal coated to help insulate the circuit from surrounding metal and wires. Easy to install and use - ideal for many different applications.
