OKAY MOTOR 102MM Drive By Wire Electronic Throttle Body w/Gasket for 05-15 Chevrolet LS2 LS3 LS6 LS7 LS9 Engine C6/Z06 LSXR Intake Manifold SD102MMELB
Availability: Pre-Order, Inquiry Price
About this product
*102mm Drive By Wire DBW Throttle Body w/Gasket for GM LS Nick Williams LSXR Intake Manifold Design
*Part #: SD102MMELB, SD102MMEL, EL102TB-B, 146102B
*No harness required on LS2/LS3/LS7 applications, Harness required for LS1 based cars

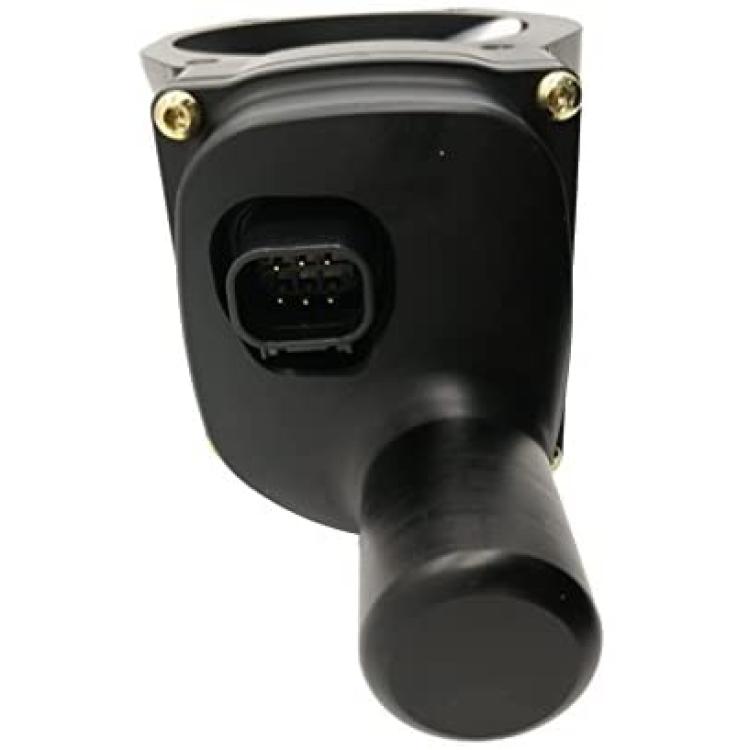

*They use a 6-pin late model connector that works with late model wiring harnesses, Notes: Some modifications may be required if this throttle is not installed with a FAST LSXR 102mm intake manifold.
*Aftermarket Product with Premium Quality, 180 days Warranty
Description
102mm Drive By Wire Throttle Body For GM LS Nick Williams LSXR Intake Manifold Design
Notes :Â
This throttle body will not fit the original intake manifold.Â
Designed for LSXr intake manifolds with drive-by-wire throttle bodies only. Tuning is required.
Throttle Body Finish: Black anodized
Throttle Body Material: Billet aluminum
Throttle Body Style: Multi-port injection, MPI
Bore Diameter (mm): 102.00mm
1. CNC precision machined billet throttle bodies made exclusively for Scoggin Dickey to meet
the demands for increased airflow on the "drive-by-wire" LSX performance engines.Â
2. The 102mm throttle body requires an aftermarket intake to fit the larger diameter throttle blade.
3. The 6-pin late model connector works with 2010 and newer Camaro (F-Body),Â
2005 and newer Corvette (Y-Body), and Chevy/GMC pickups 2007 and later with the 6-pin wiring harness.Â
Tuning is required for installation
This 102mm LS3/L92/LS7/LSXR (Electronic) Throttle Body, Will work on modified LS1/LS2/LS6 engines also.Â
This throttle body accepts the LS2/LS3 stock throttle body harness.Â
This is a great addition to the FAST LSXR 102mm Intake Manifold.Â
This throttle body has a 4.23" OD, so you'll want to use a 4.25" coupler.
LS1 Vehicles require adapter harness. Harness allows the use of a LS2 throttle body on an LS1 vehicle.
This product is modified for higher boosted cars by a third party. And it will work on (modified):
2009-2015 CTS V (needs adapter if using stock upper pulley)
2012-2015 Camaro ZL1 (needs adapter if using stock upper pulley)
2010-2015 Camaro
2008-2011 Pontiac, G8 GT/GXP, (Needs to have the Power steering Pump relocated)
2005-2013 Corvette, C6/Z06
2005-2007 CTS-V, (LS2 Only)
2005-2011 Trailblazer SS
2005-2006 Pontiac GTO, (LS2 Only) and (Needs to have the Power steering Pump relocated)
