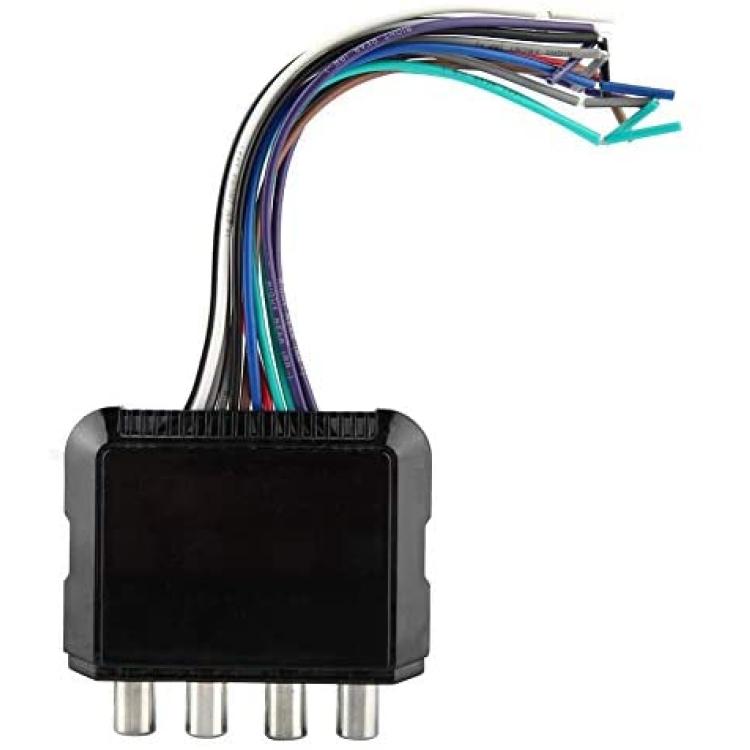

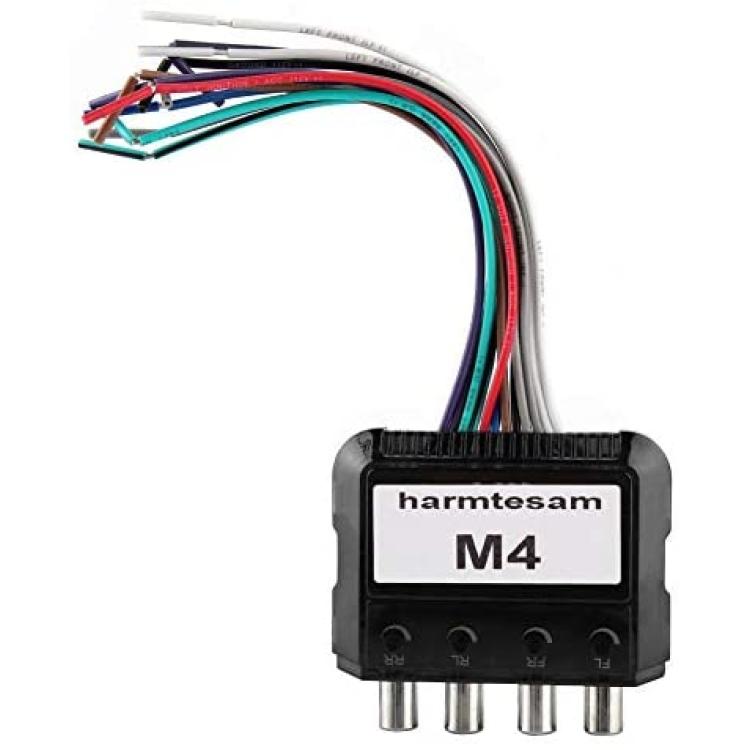

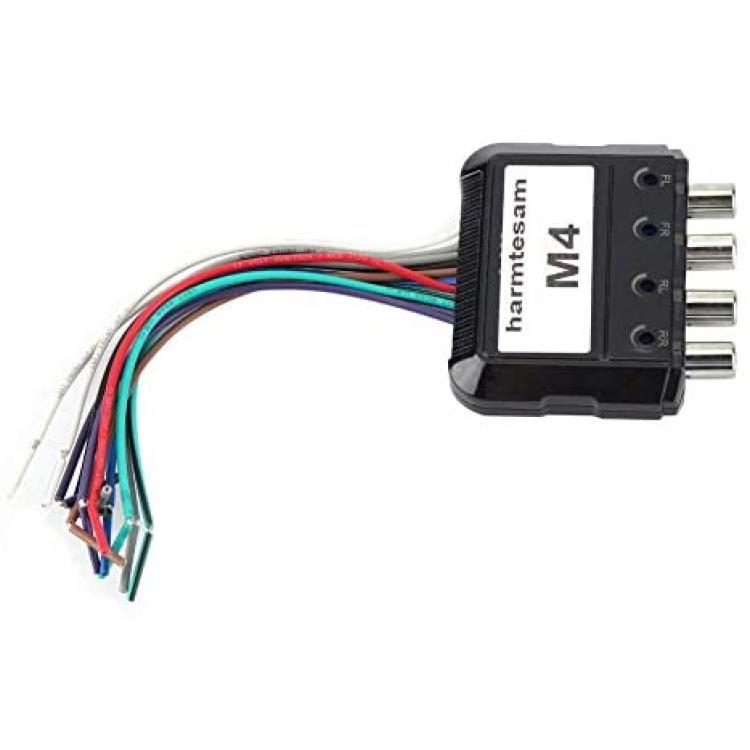

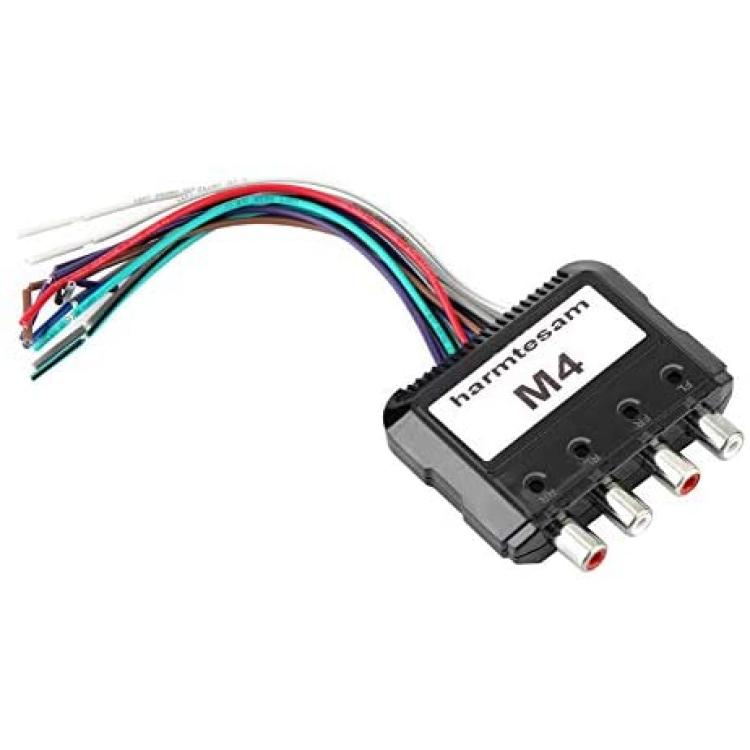

Acouto 4-channel car audio, Car Stereo Subwoofer 4 Channel High to Low Audio Converter with Power Amplifier Control Wire
About this product

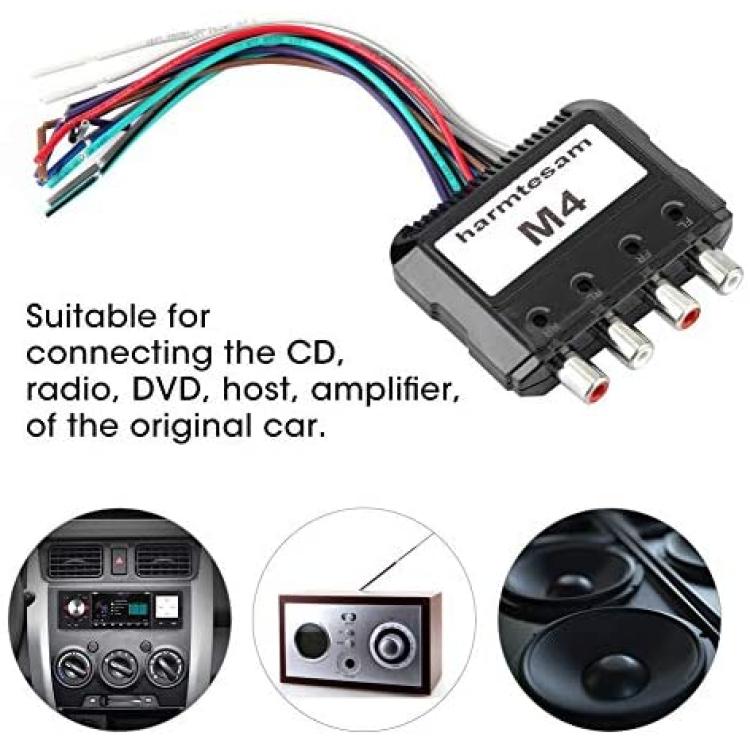

*【Wide Use】It is suitable for connection of CD of original car, radio, DVD, the body, amplifier.
*【High Sound Quality】The cable is manufactured in a durable structure, so there is no need to worry about the interruption of sound, static electricity, or the deterioration of quality at important events.
*【Multi-channel】We convert high audio signal of speaker to low-pass with 4-channel high-low audio converter for luxury cars.

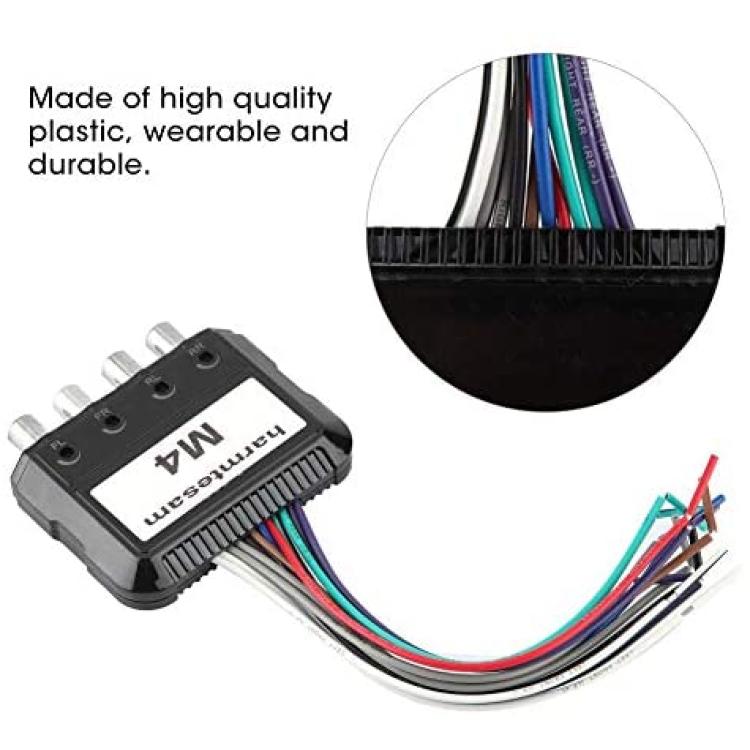

*【New】Made of high quality plastic, 100% brand new, strict pre-sale inspection.
*【Easy Operation】 Plug and play without using software or drivers.
Description
wiring:Â
Gray wire ------- Connect the anode of the right front channel of the host.
Gray and black lines ------ Connect the cathode of the front right channel of the host.
White wire ------ Connect the host's left front channel anode.
White and black ------ Connect the left front channel cathode of the host.
Purple wire ------ Connects the host's right rear channel anode.
Purple and black wire --- Connect the cathode of the right rear channel of the host.
Green wire ------- Connect the host's left rear channel anode.
Green and black wire ------ Connect the left rear channel cathode of the host.
Red wire ------ connect the anode of the power wire
Black wire ------ Connect the anode of the power wire (earth wire)
Brown wire ------ Connect the ground wire if there is noise, disconnect if there is no noise.
Blue line ------- 12V power amplifier control output line (connected to power amplifier control line interface)
Specification:Â
Condition: New
Material: Plastic
Color: Black
Wire: 12 wires
Package weight: about 144g / 5.1oz
Package ListÂ
1 * high to low audio converter
