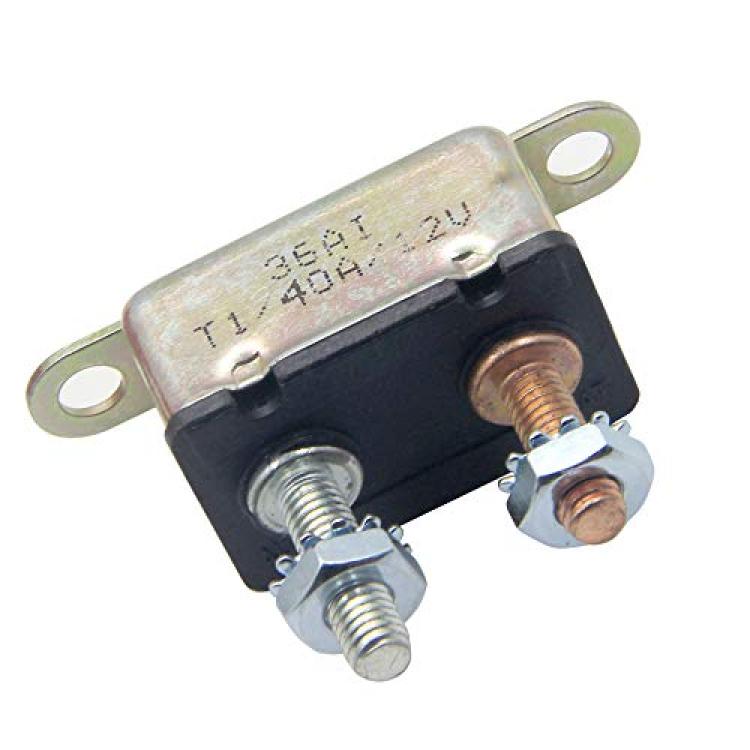

RKURCK 12V 40A Circuit Breaker, 10-32 Stud Bolt Terminals Bracket Auto Reset for Automotive RV Marine Boat with Plastic Cover 40 Amp
Availability: Pre-Order, Inquiry Price
About this product
*Type I Heavy Duty Circuit Breakers 40 Amp, Apply to 6-28V DC application
*Automatic Reset - resets automatically but will continue to trip (cycle on and off) until fault is corrected
*10-32 stud bolt terminals, plastic base, metal housing, and lengthwise metal mounting bracket
*Red circuit breaker boot insulates your circuit from shorting out by protecting it from the elements in power leads and automotive applications
*Widely used in heavy-duty and truck applications, off-road vehicles winch, yachts, ATV, RV, special vehicles and ships electrical control
Description
Description:
? Stud Type I Resettable Circuit Breaker 40 Amp
? Mounting Style: In-Line Bracket Heavy-duty housing cover
? Push-to-reset operation only disconnects when tripped
? IP64 water resistant boot protects against dust and splashing water
? For use in electric brake set ups, auto, caravans and more
? One copper post and one plated terminal
? Battery side connects to the copper side and the plated side connects to your accessories generally take the place of a fuse but with the advantage of resetting itself,Ideal in applications where what is being connected could have a short circuit or a momentary short.

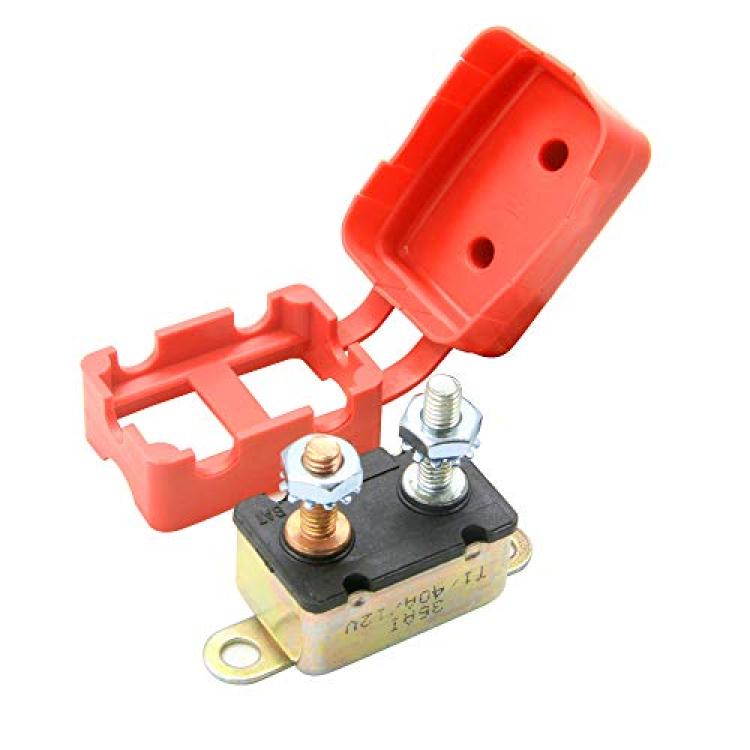

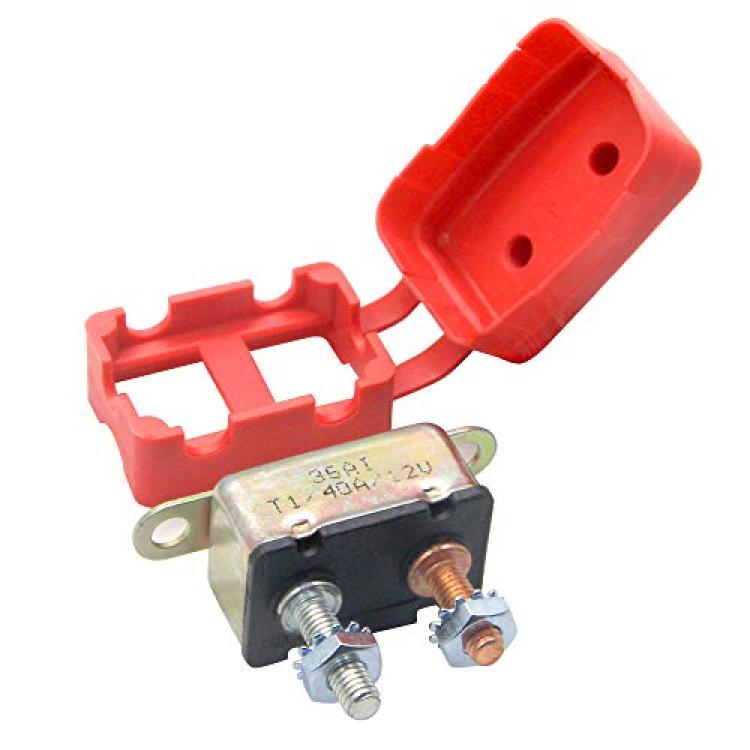

? The red circuit breaker boot insulates your circuit from shorting out by protecting it from the elements in power leads and automotive applications.
Specifications:
- Meterial: metal and plastic
- Reset Method: Type I - Automatic
- Voltage 6-28V DC
- Reset Type T1, Auto Reset
- Interrupt Capacity 2.5kA @ 12V DC
- Dimension 1.248 x 0.693 x 0.8 inch
- Termination #10-32 thread
- Body Metal Cabinet
- Mounting Parallel (Lengthwise) Mounting Bracket
- Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)
- Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)
- Battery chargers, trucks, buses, RVs, trolling motors, etc
- Regulatory Sepcification SAE J553; SAE J1171; UL1500
Package included:
2 x Screw Nuts
1 x Red boot Cover
1 x Automatic Reset Circuit Breaker
