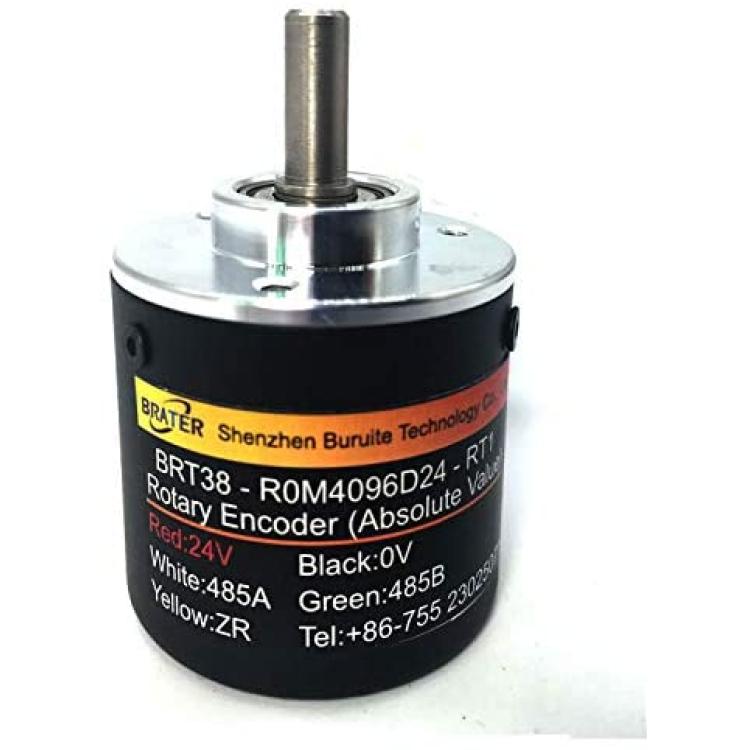

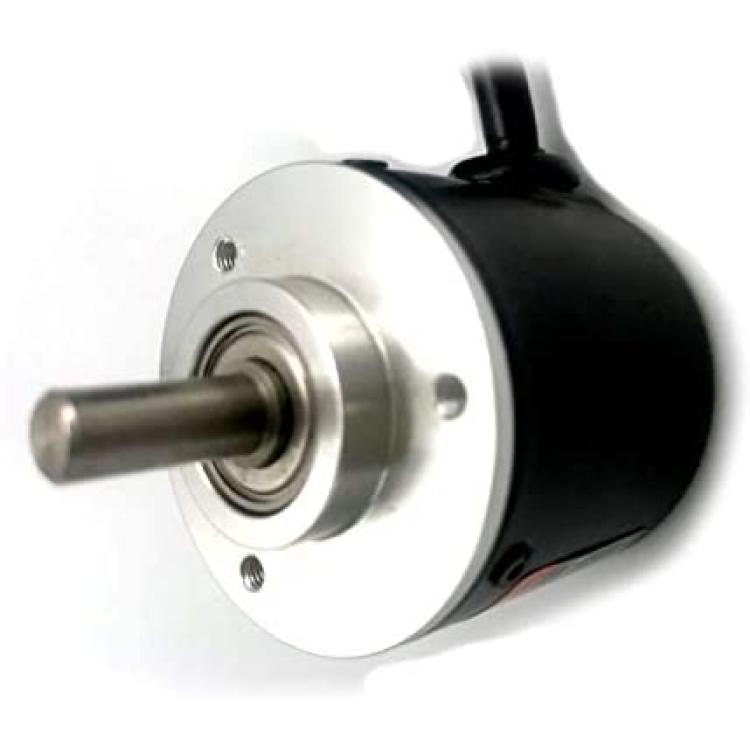

brater Rotary Absolute Rotary Encoder BRT38-C0M1024D24-RT1 24 Turns Power-Off Memory Non-incremental Style Gear Mechanical Structure no Power Supply 2 Years Warranty
Availability: Pre-Order, Inquiry Price
About this product
*● RS485 digital alternating signal output, the digital output signal has multi-turn value and single-turn absolute value.
*● Adopt standard ModBus-RTU communication protocol, support popular software such as Kingview, Intouch, FIX, synall, etc., and realize data communication with equipment and systems of international famous brands such as AB, Siemens, Schneider, and GE.
*● The full-scale true multi-turn encoder composed of precision reduction gears does not require counting, battery, or power-off memory; any position within the range is unique, even if there is interference or power-off movement, the number of turns will not be lost .
*● A simple multi-turn encoder with single code disc + precision reduction gear, multi-turn is 5099 turns, single-turn is 0～1023 absolute value, and the resolution of 0.35 degrees can be achieved within the range.
*● All parameters can be set through the RS485 communication of the computer, and the zero point can be set at any position. Therefore, when the encoder is installed, the device can be left at any position, and the connecting shaft can be fixed without considering the rotation position of the encoder. After the power is turned on, it can be automatically corrected by performing a zero-setting operation at the external lead or through RS485 communication.
Description
Power off memory:
This encoder is an absolute mechanical magnetic encoder. It can achieve multiple turns without using a battery during operation. The position information is mechanically managed by the encoder. Even if the power is cut off and the cable between the motor or driver is removed, the position can still be maintained. information.
Product advantages and information:
· 24 circles, 50 circles, 99 circles, 1287 circles, please contact the seller for more circles
· Smallest volume and multi-turn, high cost performance, high precision
· 10 years of independent research and development and production of brands
· Absolute multi-turn measurement, no battery required, 10, 12-bit resolution
· Power-off memory, high stability
· High-quality after-sales, two-year warranty
Electrical parameters:
1. Working voltage : 5 V
2. Baud rate :9600~115200 (default 9600)
3. Working current :50mA
4. Station number and address:1~127 (default 1)
5. Linearity :0.15% ( 0.5% )
6. Core refresh cycle: 50 uS
7. Electrical life :> 100000 h

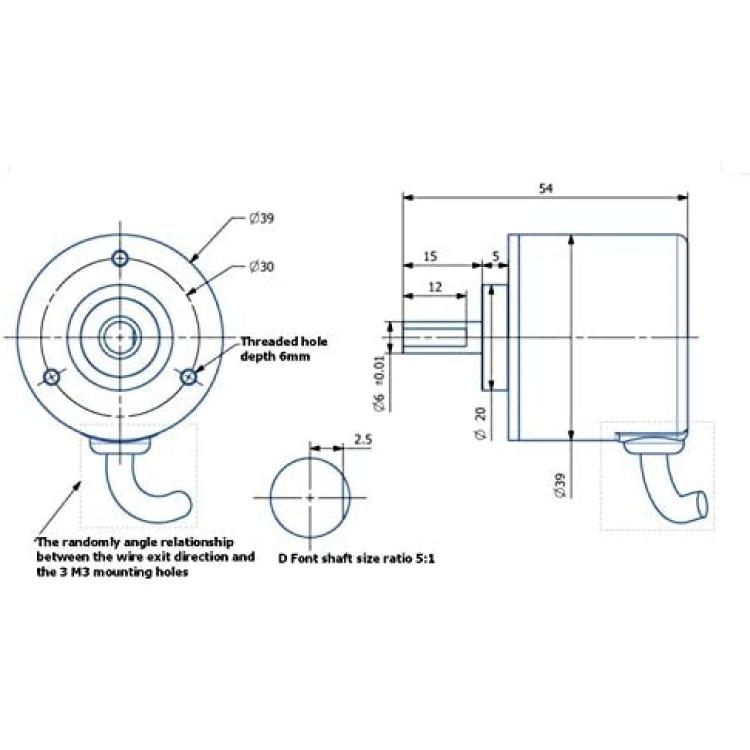

Mechanical parameters:
1. Shell/flange material?Shell/flange material
2. Shaft materialstainless? steel
3. Bearing materialBearing ?steel
4. Maximum load of shaft?20 N axial, 80 N radial
5. Maximum mechanical speed; 680Â rpm
6. Maximum starting torque? 0.006Nm
7.Weight? 150 g (including 1.2m shielded wire)

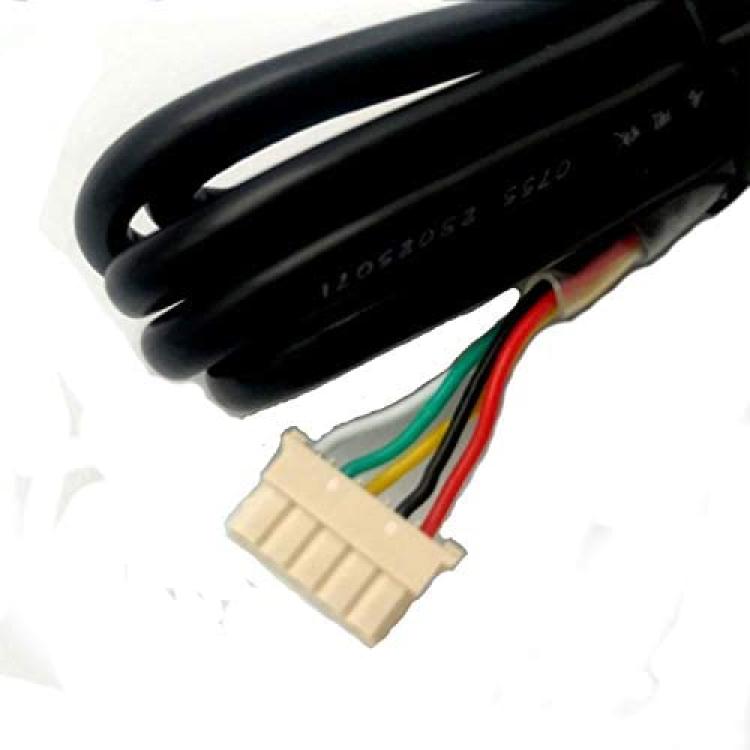

Wiring:
1. Red ?Positive power supply (5V)? Be sure to note before power-on: the voltage value on the encoder label
2. Black? Ground wire (GND)
3. Yellow? Zero setting (ZR)? When the zero wire is grounded for more than 100mS, the encoder position value will return to zero
4. Green: RS485B
5. White: 4Â 85A
Precautions:
·The encoder is a precision instrument, please handle it with care and use it with care, especially do not
