PSEQT 6 Way Bus Bar Terminal Block with Cover & Connectors 150A Ground Power Distribution for Car Boat Trailer RV (1Pcs)

Product Description

PSEQT 6 Way Bus Bar Terminal Block with Cover & Connectors 150A Ground Power Distribution for Car Boat Trailer RV (1Pcs)

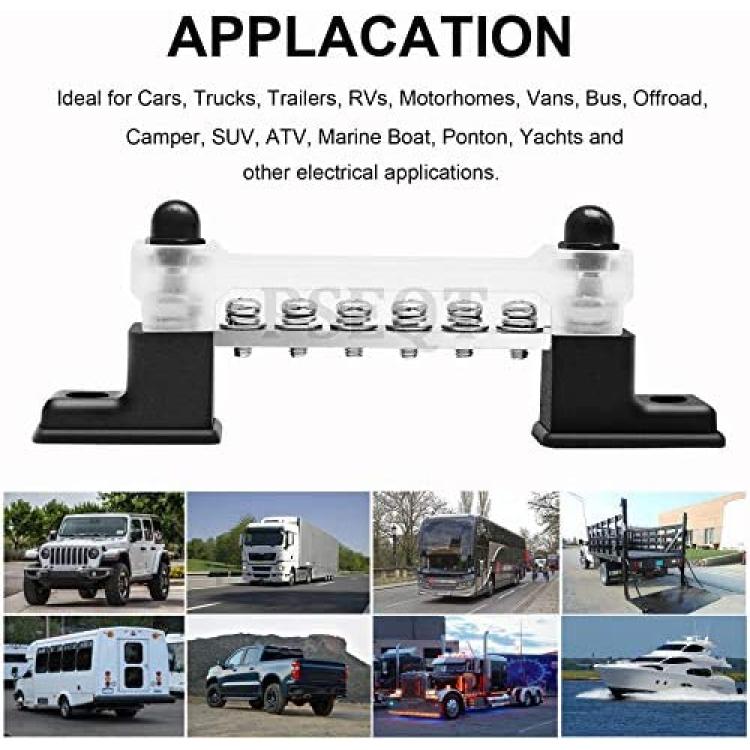

Application:
1. Perfect for all types of power and ground distribution.
2. Widely work in automobiles, vessels, devices or other electrical applications.
3. Fit for building electrical appliances, low-voltage power cabinets, distribution boxes, lighting boxes and other multi-channel power distribution equipment.

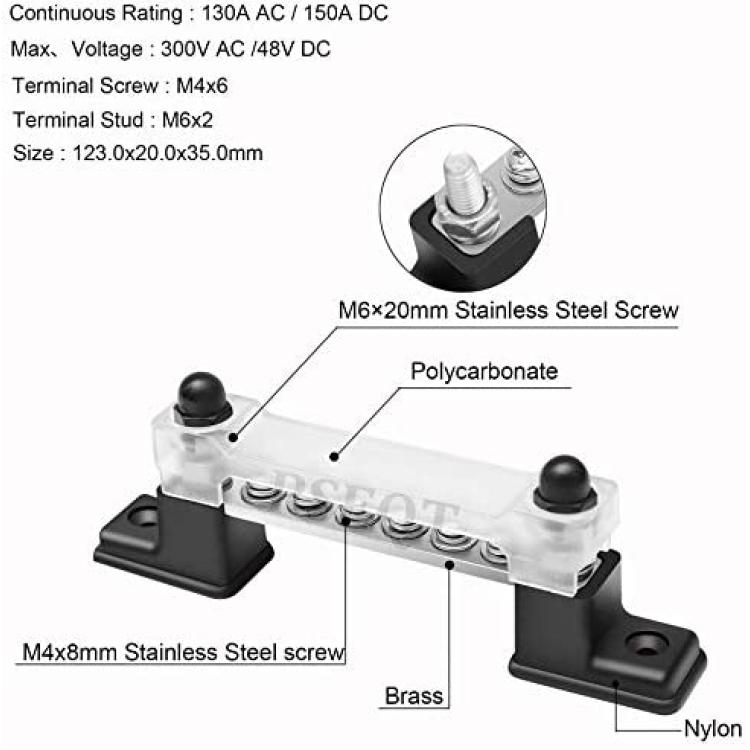

Specifications:
Item Type: 6 Terminal Single Row Bus Bar with Cover

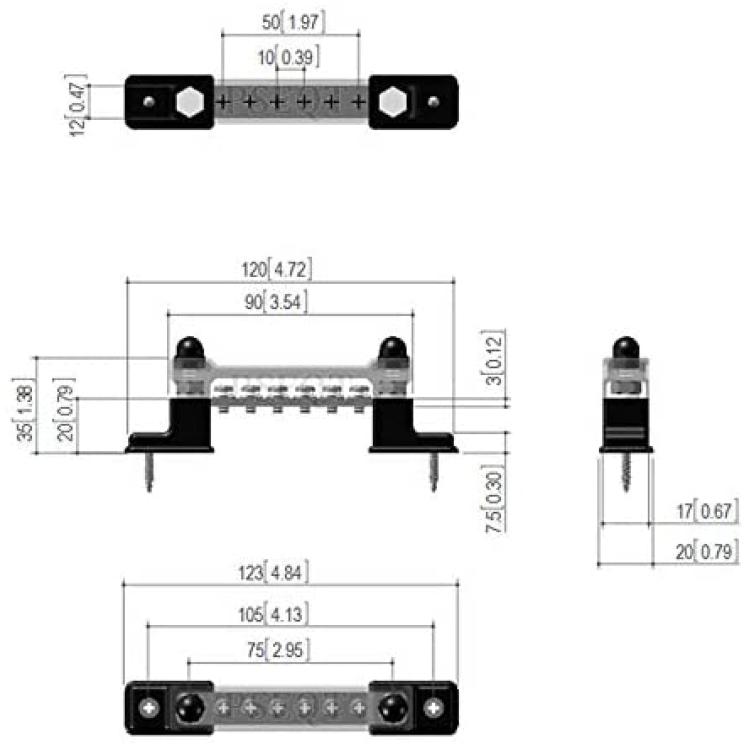

Size: 123mm x 20mm x 35mm (4.84'' x 0.79'' x 1.38'')
Number of Terminal Screw: M4 x 6
Number of Terminal Stud: M6 x 2
Continuous Rating: 130A AC/150A DC
Max Voltage: 300V AC/48V DC
Bus Material: Brass
Screw Material: Stainless Steel Screw

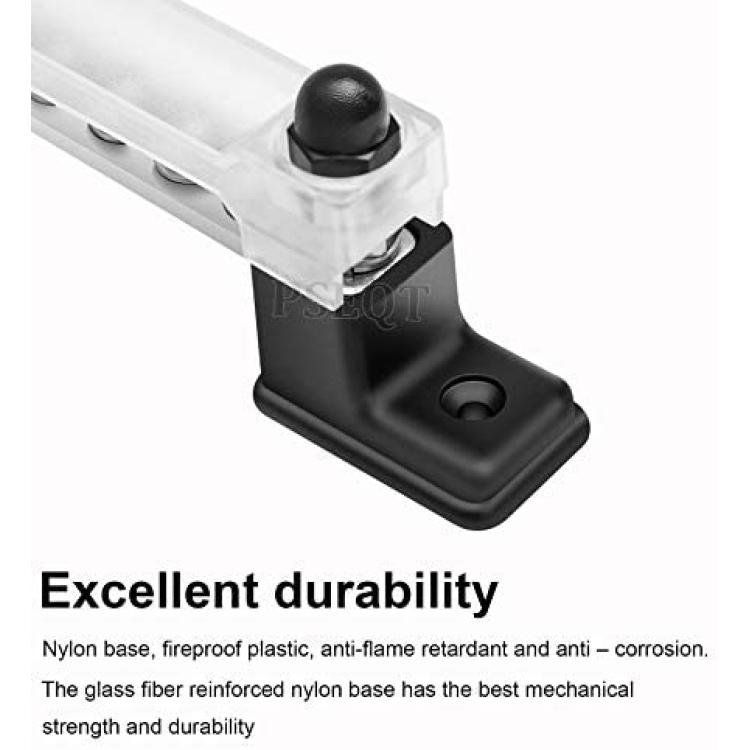

Base Material: Black Nylon

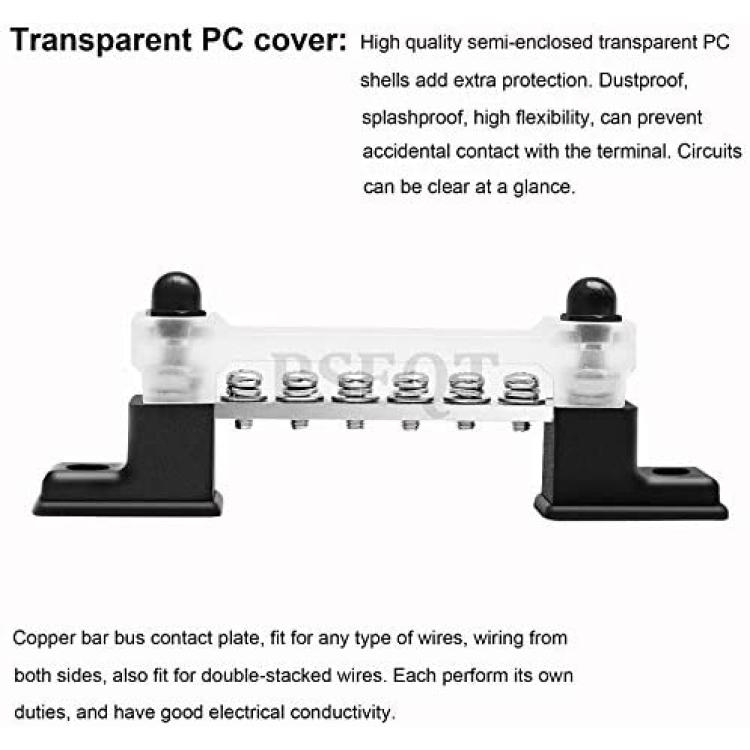

Protective Cover Material: Polycarbonate

Features:
1. 6 Terminal Single Row Bus Bars make mess wires neat and orderly. Keep wiring clean and separated.
2. Bus bars are a way of connecting incoming lines, which increase contact area, cut down energy consumption and reduce temperature rise.
3. Compared with the traditional wiring, it has good versatility and strong practicality. Safe, reliable, time saving and convenient.
4. Nickel-copper plated bus contact plate has good conductivity and low contact resistance.
5. Polycarbonate protective cover and stainless-steel screw have good heat and corrosion resistance.

Installation:
Easy to install. There are two screw holes at both ends of the bus bar, use M4 screws to fix it in place.

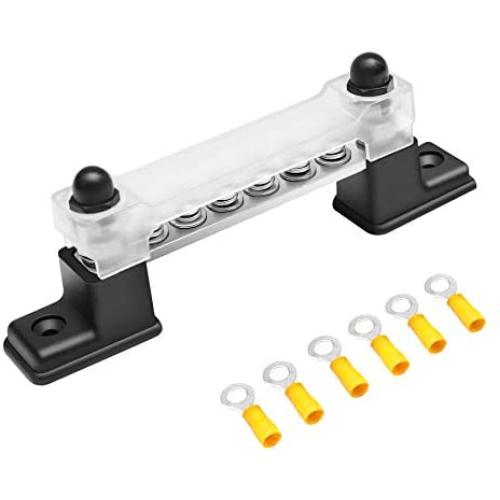

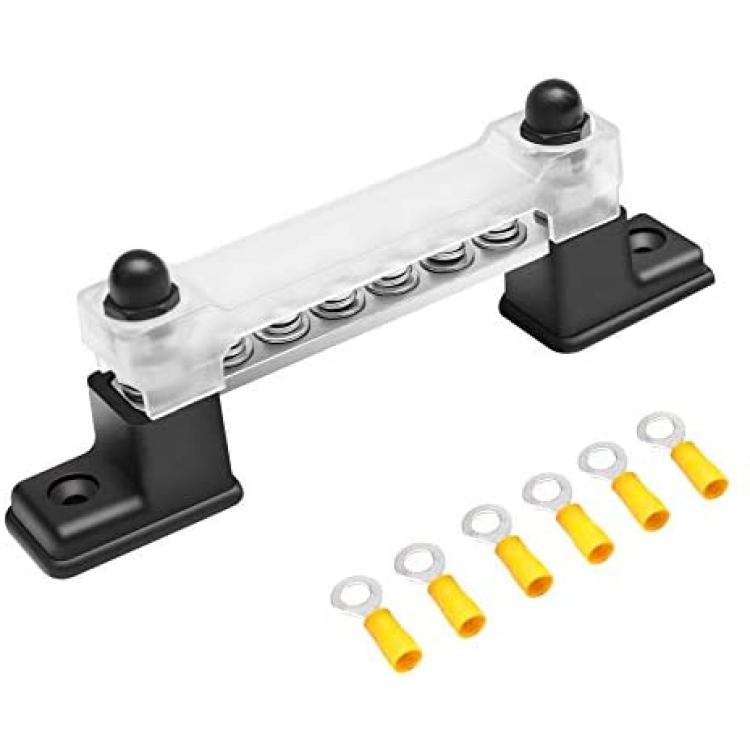

Packages:
1 x 6 Terminal Single Row Bus Bar
1 x Polycarbonate Transparent Cover
2 x Screws
6 x Yellow Connectors
