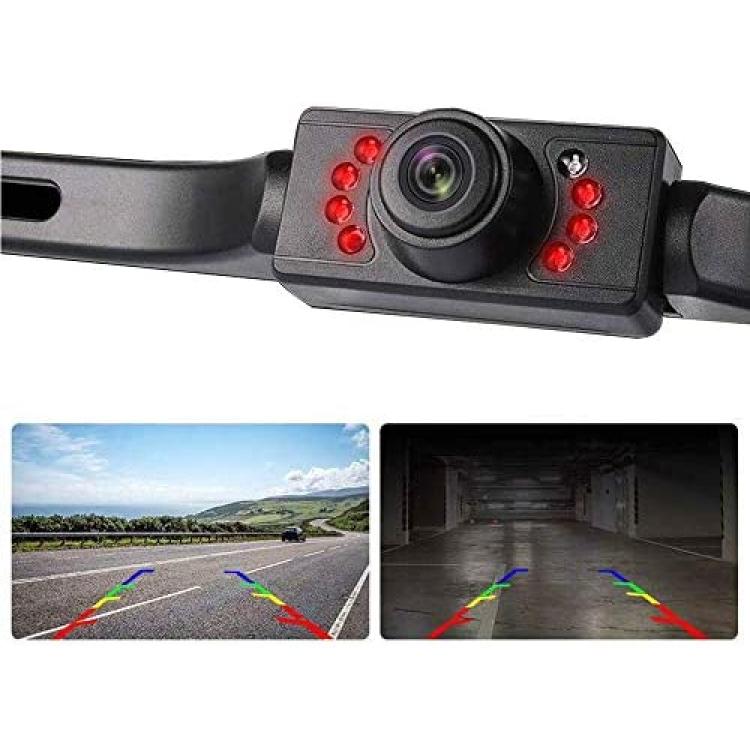

Car Rear View Camera High Definition Universal Auto Parking Reverse Vehicle Backup Camera with 170 Degree Viewing Angle Waterproof

Easy Installation:
1. Mount the camera to your car's license plate area, back window, or any other suitable place
2. Adjust the lens of the camera to its best position.
3. Connect power wire to your vehicle DC 12V power system.
4. Connect the video output (yellow) of the camera to the display in your vehicle.

Specifications:
-Camera size:23*22*22 mm
-Lens Angle: 170 degree
-Image device: Hi-definition Color CCD
- Sensor:PC7070
- Effective pixels:756*720 pixels
-TV system: PAL
-Power Voltage: DC 12V
- The backlight compensation: to be automatic
- Water resistance: IP67
-Shock Strength: 6.8G
- Operation Temperature: -30 to +80 RH 95% Max


Package Content:
-1 X Car Rear View Camera
-1 X DC power cable(1.5M)
-1 X AV/DVD cable (6M)

Notes:
- All Red heads for "+" postive and black for "-" negative
- Connection Details are showed in picture.
