SVS-6 (Universal Smart Video Switcher) - Video Interface - NAV-TV

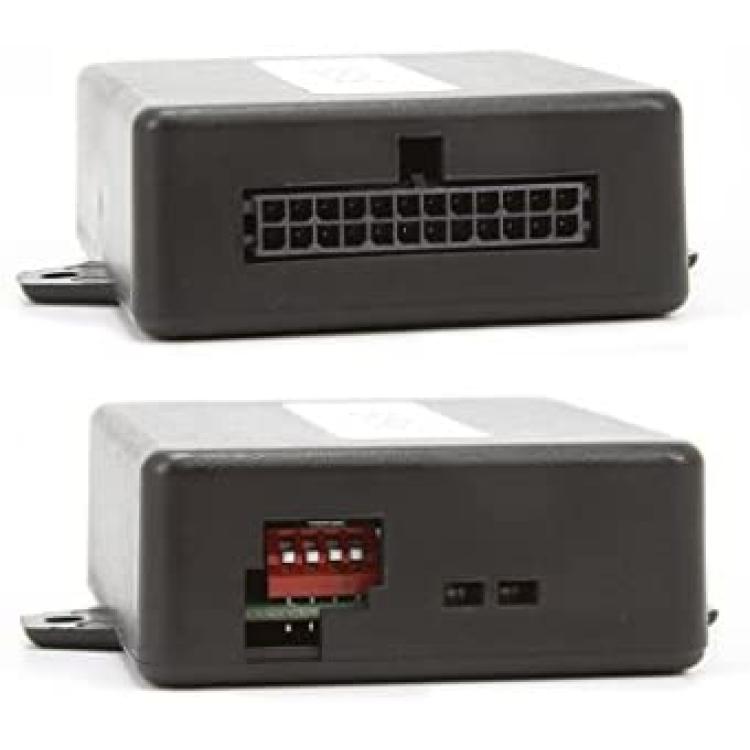

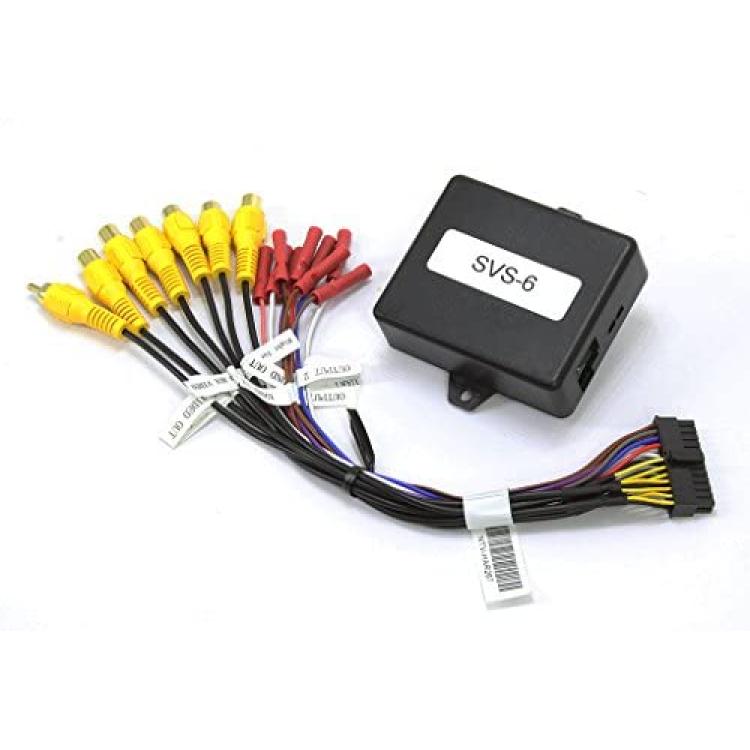

The SVS-6 is a truly unique and universal video input module that connects to ANY full color LCD screen equipped with a composite video input (and wired reverse-camera trigger) for adding front, rear, blind spot cameras (turn signal cams) as well as 2 additional video inputs (including one auto video-sensing input). All cameras are triggered from wired inputs and this module is designed for use with OEM or aftermarket radio screens. Note: OEM radios require additional parts.

Connection Type: Wire triggers, built-in video switching

Plug and Play: No

Activation: Wire triggers (all video inputs and force cam)

Video Inputs: 6 composite (5 cameras + 1 AUX video)

Video Outputs: 1 composite (to existing RVC input only)

Audio Inputs: None

Audio Outputs: None
