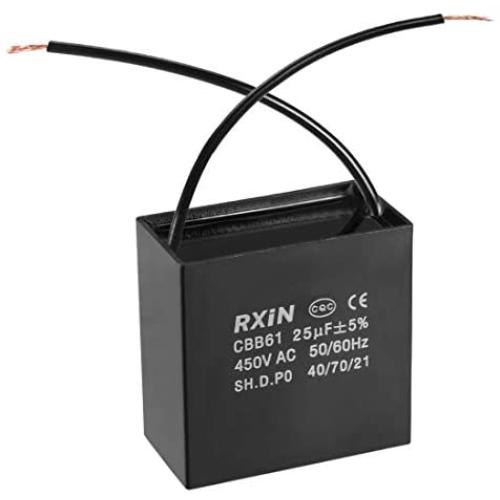

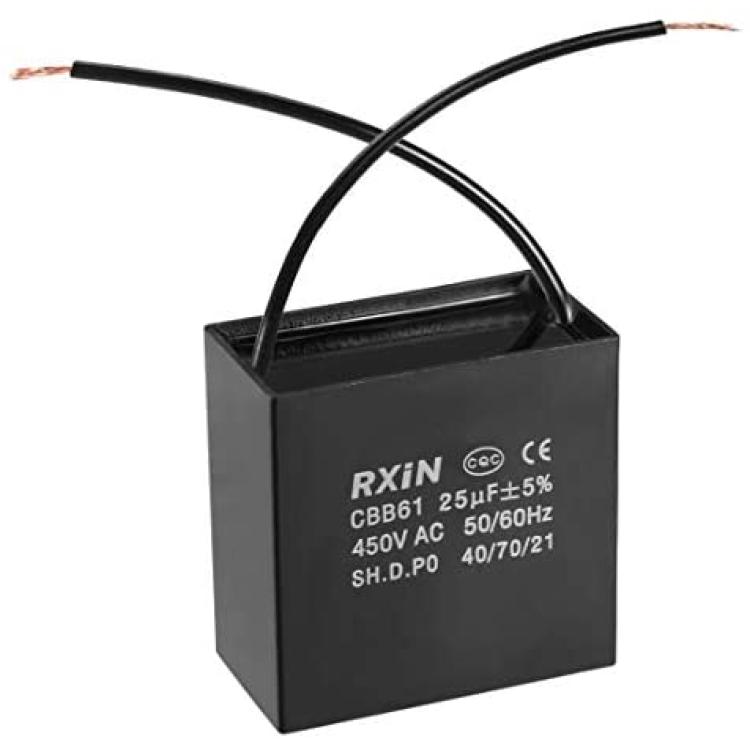

uxcell Ceiling Fan Capacitor CBB61 25uF 450V AC 2 Wires Metalized Polypropylene Film Capacitors 58x31x57mm for Water Pump Motor Generator
About this product
*[Material] - Made of metallized polypropylene film sheet with plastic shell
*[Specification] -Rated Capacity: 25uF; Tolerance: ±5%; Rated Voltage: 450V AC; Cover Size: 58x31x57mm / 2.3x1.2x2.2inch; Rated Frequency: 50/60Hz; Temperature Range: 40/70/21
*[Working Environment] - This CBB61 capacitor is applied to starting and working of single-phase motor in 50Hz/60Hz AC electric power system
*[Application] - The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc
*[Note] - If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one
Description
Features:
This CBB61 run capacitor has low loss, excellent electrical performance and long service life.
The CBB61 capacitor is widely used for electric fan, range hood fan, air exchange fan, pump, motor, generator, etc.
Note: If the ceiling fan works slowing down or cannot work or cannot work at different speeds as it used to, please check the CBB61 ceiling fan capacitor first. The capacitor may be burnt out or weak, you need to replace it with a new one.
Specifications:
Model: CBB61
Material: Polypropylene Film
Rated Voltage: 450V AC
Rated Capacity: 25uF
Tolerance:±5%
Rated Frequency:50/60Hz
Lead End: 2 Wires

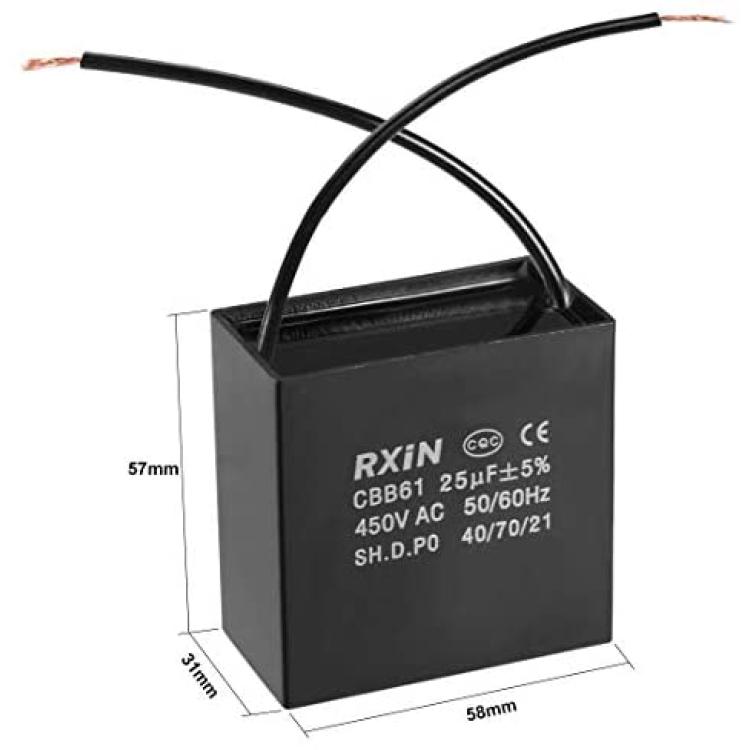

Size: 58*31*57mm
Climatic Category: 40/70/21
Operating Temperature Range: -40?~70?
Package Includes:
1 x 450V AC 25uF Capacitor
