1 inch Aluminum Alloy Motorcycle Handlebar Headlight Switch Waterproof On/Off Fog spot Light Switch for 12V Motorcycles,Motorbike,Scooter
Availability: In Stock
About this product

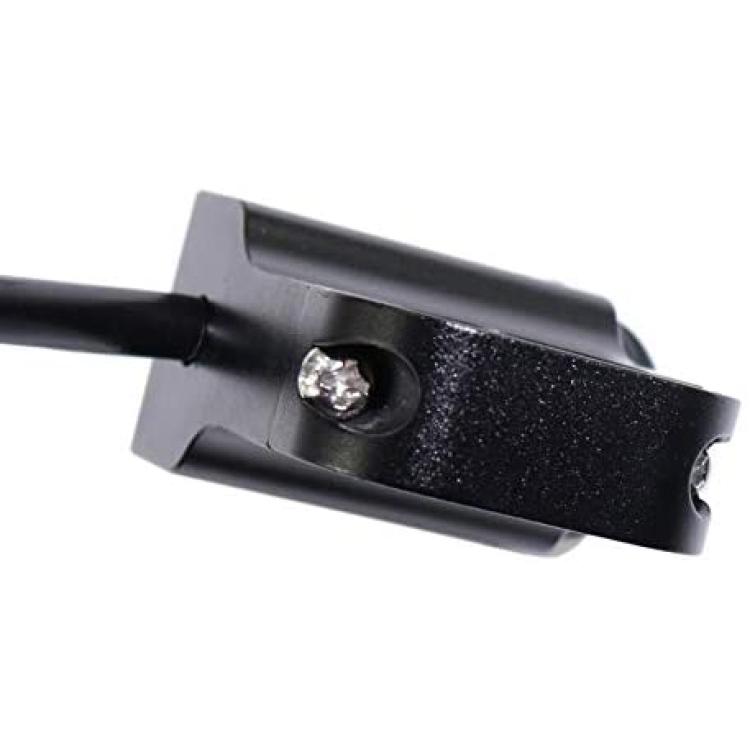

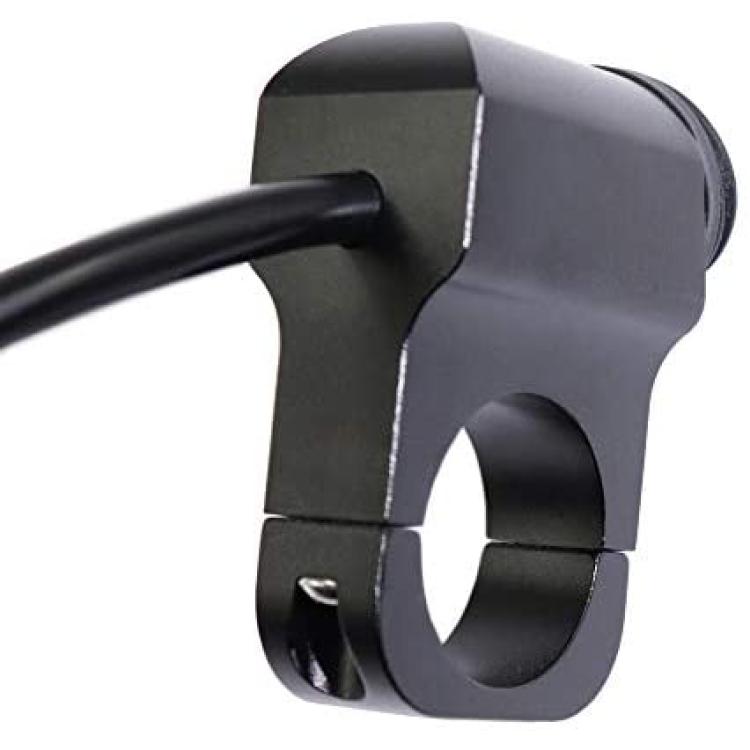

*Case Material :aluminum-alloy,Mounting Holder apply for Grips, Diameter:25mm/1.0"
*Suitable for all 12V battery installation motorcycles,motorbike,scooter
*Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use

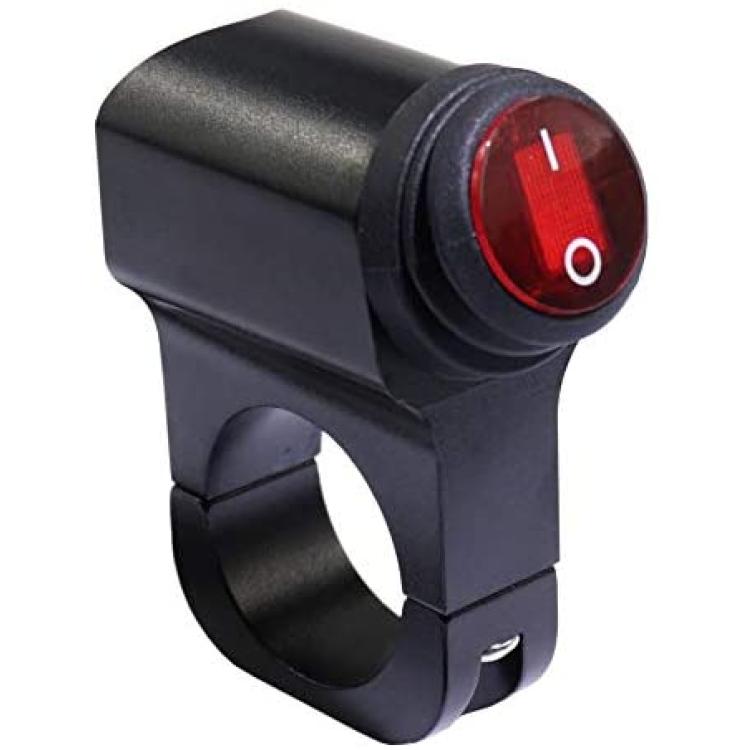

*The product has the pilot lamp,when the switch turn on,the pilot lamp will be lighting,or,the lamp will off
*Connection:Blue(positive).Brown(negative).Black(connect to the equipment,positive)
Description
Specification:
Product weight: 2.64 oz
Maximum acceptable current: "16A, according to 12V calculation, 16A can be used with the maximum power of 12V*16A=192W lighting or equipment can be used, according to the current use of the rated current, Switch contact and wire will not be obvious, more secure. " Size: 23MM in diameter can be installed handlebar, handlebar standard is 22MM wide, 25MM*35MM high
Shell color: black

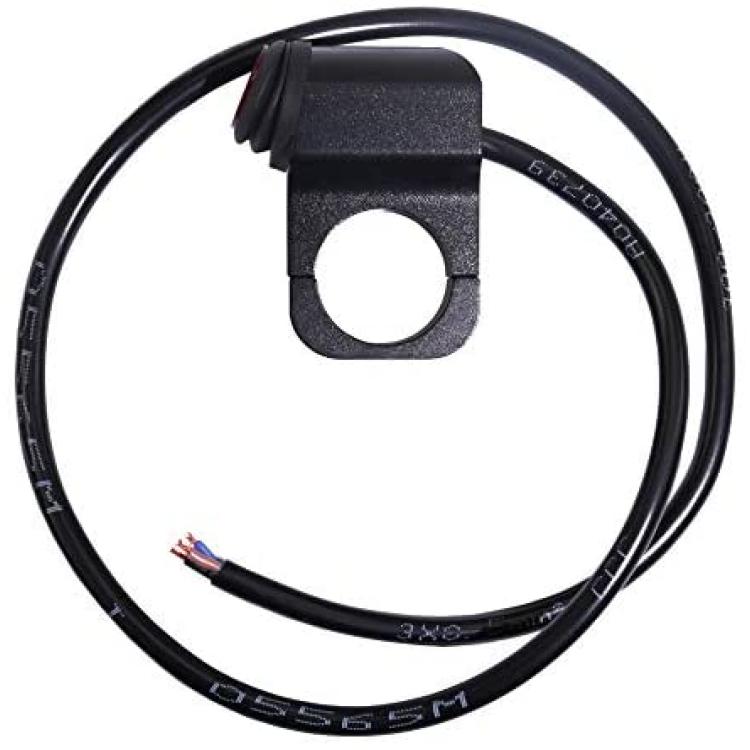

Line length: switch with lamp lamp switch are 3 line, line length 50CM
Switch material: shell using aluminum alloy material,
the color of the shell with the most expensive anode blasting process, understand the most expensive to know.
there are CCC and UL certification, quality assurance.
Operating voltage: 12V (universal all with a fixed motorcycle), the electric car would like to install, then 12V input is also possible.
Note: with the indicator light switch, switch on when the lights are on, off the lights off

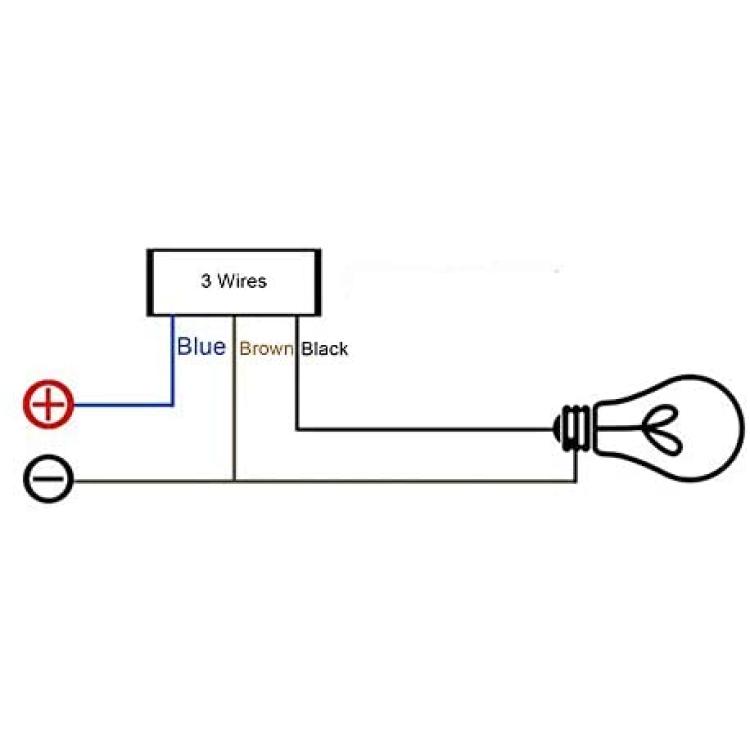

Connection method: blue connection battery positive pole, brown then battery negative pole, black connection equipment (controlled) cathode.
Whether there is an indicator light : yes
