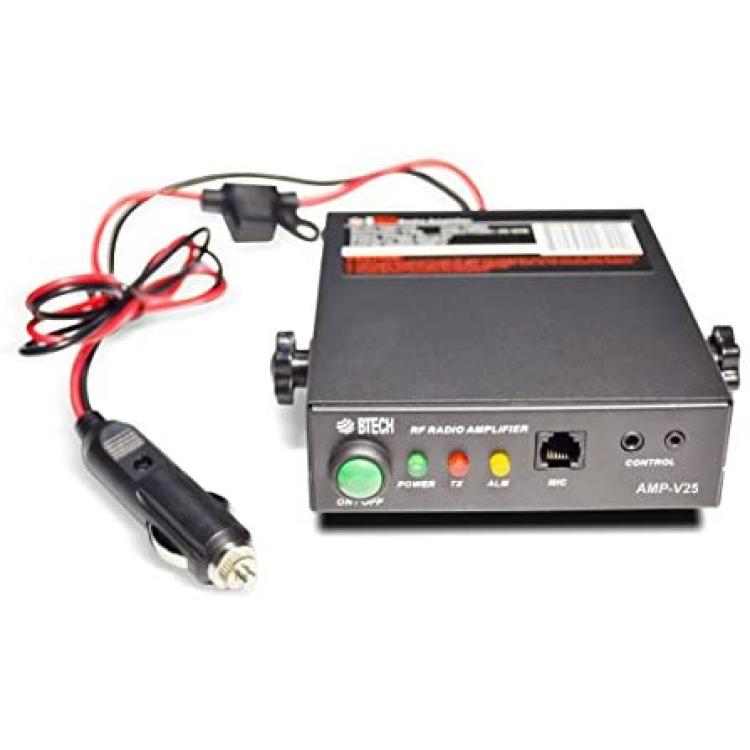

BTECH AMP-V25 Amplifier for VHF (136-174MHz), 20-40W Output (2-6W Input), Analog and Digital Modes, Compatible with All Handheld Radios: BTECH, BaoFeng, Kenwood, Yaesu, ICOM, Motorola
About this product
*NO ADDITIONAL COST: You pay $0 for repairs – parts, labor and shipping included.
*COVERAGE: Plan starts on the date of purchase. Malfunctions covered after the manufacturers warranty. Power surges covered from day one.
*EXPERT TECH HELP: Real experts available 24/7 to help with set-up, connectivity issues, troubleshooting and much more.
*PRODUCT ELIGIBILITY: Plans cover products purchased in the last 30 days.
*EASY CLAIMS PROCESS: File a claim anytime online or by phone. Most claims approved within minutes. We will send you an Amazon e-gift card for the purchase price of your covered product. In some cases, we will replace or repair it.
Description
Technical Details:
Frequency range:
? AMP-V25 : 136 – 174 MHz
Power supply: 13.8 VDC (15%), 5.5 A maximum
Input RF power: 2 - 6W (10%)
Output RF power: 20 - 40W
Size: 5.5-in D x 4.5-in. W x 1.4-in. H (40 mm D x 115 mm W x 36 mm H)
Net weight: 1.8 lbs. (800 g)

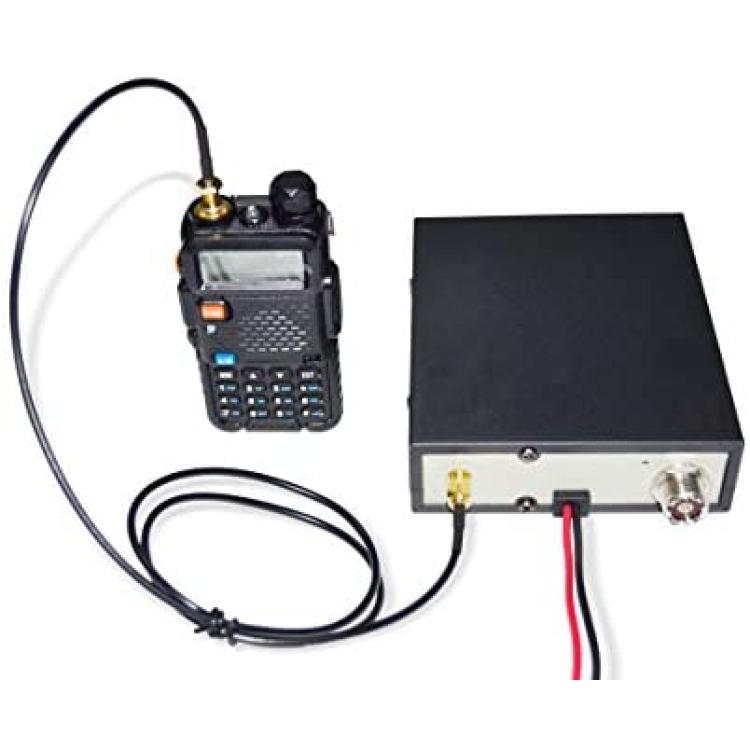

The BTECH AMP-25 Series is designed to work with any BaoFeng or BTECH handheld transceivers, but it will also work with any handheld radio that outputs 2 W – 6 W with the appropriate cable. With the included Radio to Amplifier RF Cable, the amplifier will also work with Wouxun transceivers, some TYT transceivers, and some Kenwood transceivers. If the supplied cables do not connect to your radio, you will need to use adaptors or build cables with the appropriate connectors.

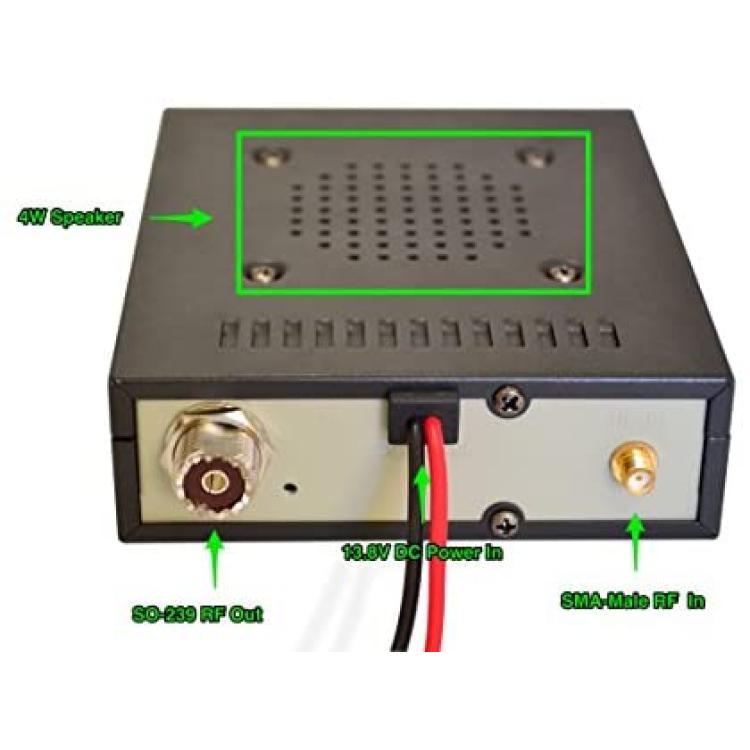

Your BTECH AMP-25 amplifier does not include an antenna. It is very important to not transmit without an antenna or dummy load connected to the ANT connector on the rear panel of the amplifier.
Transmitting without an antenna or dummy load may cause harm to the radio equipment.
When choosing an antenna, make sure that it is suitable for the bands you plan on transmitting and receiving on. For example, if you plan on transmitting on 145MHz, make sure that the antenna you select has an SWR of 1.5:1 or less on that frequency. Using an antenna with an SWR greater than 1.5:1 could damage the amplifier.
If you plan to use a magnetically-mounted (mag-mount) antennas, ensure that the antenna is grounded to a metal surface, such as a vehicle body. Magnetically-mounted antennas do not operate properly without a good ground.
