Description
WAVLINK USB C/ USB 3.0 Docking Station - Perfect Partner for Work
UG69DK5 - With included USB3.0 Type-C and Type-A connectors, this docking station is compatible with any host computers, expanding 1 USB port to 11 different ports. You can easily connect your PC to one 5K (5120 x 2880@60Hz) UHD display (DisplayPort Only) or two 4K (3840x2160@60Hz) HDMI / HDMI+DP displays in both mirror and extended mode, great for your efficient work at home or office.
Single 5K: 5120 x 2880@60Hz
Dual 4K: 3840x2160@60Hz

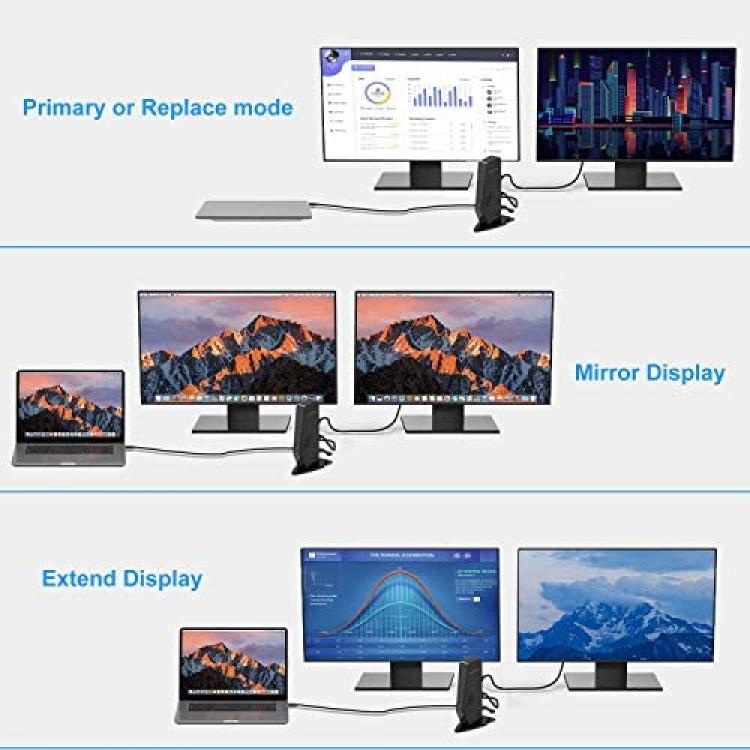

Supported Mode: Primary Mode/ Mirror Mode/ Extended Mode
Displaylink Chipset:
Use Displaylink chipset - DL6950, which has high compatibility, being flexible and versatile for most users.
Please download the latest driver from displaylink:
www.displaylink.com/downloads
3 x Type-A USB 3.0 ports allow you to easily access any USB devices (U-Stick, SSD and more) in 5Gbps data transfer, backward compatible with USB 2.0 and USB 1.0, facilitating your file transfer.
RJ-45 Gigabit Ethernet port supports 10/100/1000 Ethernet, provideing stable full network performance in wired connection, enhancing your user experience
Equipped with Audio Line-out and Line-In Audio Jack (TRRS), this docking station supports almost all currently popular microphone and earphone devices in squeaky-clean sound quality.

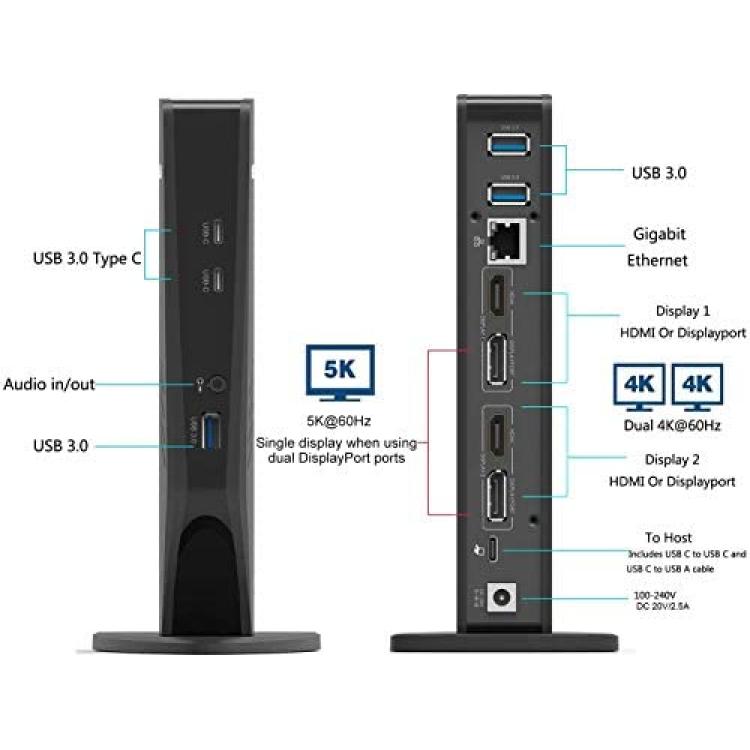

With Dual DisplayPort and Dual HDMI ports, UG69DK7 can provide single 5K (5120 x 2880@60Hz) Diaplayport output and dual 4K (3840x2160@60Hz) HDMI/HDMI+Displayport monitor in both mirror and extended modes, allowing you to enjoy UHD videos or multitask efficiently. Your perfect choice for home office.
Additional video converters are supported but not included in the package.
Wide Compatibility
For Full screen video playback
For Full screen video playback
Supported Operating Systems
WINDOWS
Windows 7, Windows 8, 8.1, Windows 10, Windows Vista is 7.7, Windows XP is 7.6
Unique plastic wire matte vertical designSave more space on your deskFree you from the clutter of cablesAchieve integration between your home decor and the docking stationProcessor: Intel Core i7 2+GHz / AMD Richland A10-575x / AMD Kaveri A10-7400P or better. Memory: 8GBGraphics processor: Integrated or discreet Intel HD 4000, ATI Radeon HD 8650, NVidia GeForce 7xxM graphics processors or better.USB: USB 3.0Disk: 7200RPM or SSDIf playing UHD content (4K), the system must be capable of decoding the 4K video in the graphics processor. Windows XP 64 bit Windows RT platforms Windows Embedded 7 Windows POSReady 2009 Windows 10 IoT Core/ Mobile Mac OS X 10.5 or earlier Android v4.4 or earlier iOS
