Morningstar - ProStar 15A PWM Solar Charge Controller for 12V/24V Batteries, Lowest Fail Rate in The Industry, Built-in Diagnostics, (PS-15M)
Availability: Pre-Order, Inquiry Price
About this product

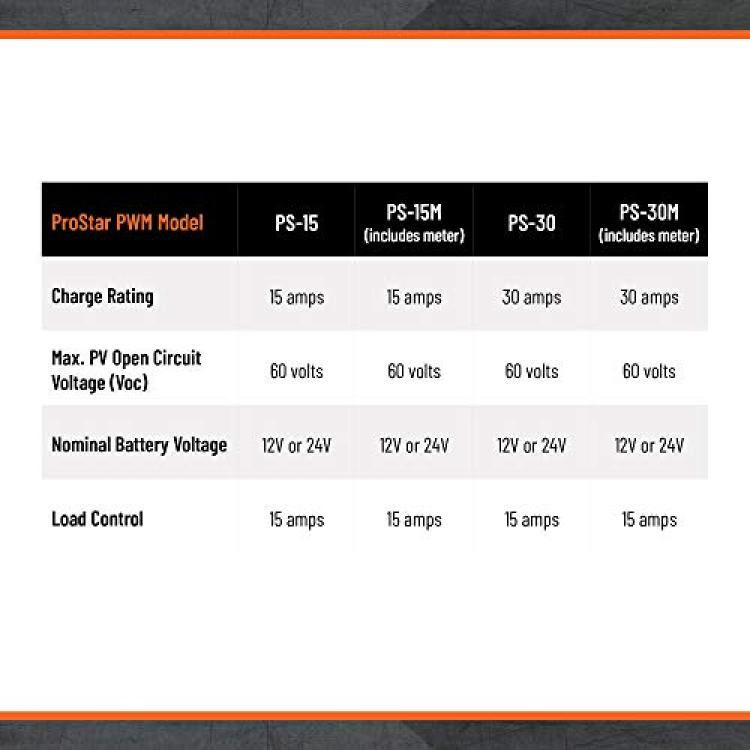

*SYSTEM COMPATIBILITY: Designed for use in mid-sized systems. Max solar/load current: up to 30A (depending on model; see model comparison chart). Low voltage disconnect included. Constant voltage PWM regulation; 4-stage charging
*UNIQUE FEATURES: Load and automatic PV-based lighting control. Charges all battery types including Lithium Ion; has Lithium “fold back” circuitry for safe charging under low temperature conditions. Ideal for use in cloud-connected, networked systems through communications protocols—“speaks” Modbus, and SNMP (with optional EMC-1)
*OVER 20 YEARS OF RELIABILITY : Proven in over two decades of use—and continuously improving with the latest Generation III version. “Own both the latest and the legend in a single controller”
*EXTENSIVE PROTECTION AND DIAGNOSTICS BUILT-IN: Built-in extensive electronic protection against surge, short-circuit, over-current, reverse polarity conditions. Advanced self-diagnostics warns against installation or user errors. Custom programmability, with or without a PC. Data logging- up to 256 days worth
*LOWEST HARDWARE FAILURE RATE IN THE INDUSTRY, BACKED BY A FIVE-YEAR WARRANTY: Most Morningstar products ever built are still in use, some for over 25 years, thanks to smarter digital design, superior internal engineering, and over-spec components. Advanced thermal engineering eliminates cooling fans which can fail, suck in dirt, shorten component life and waste precious energy. The high-impact, durable polycarbonate exterior case illustrates industrial-strength build quality.
Description

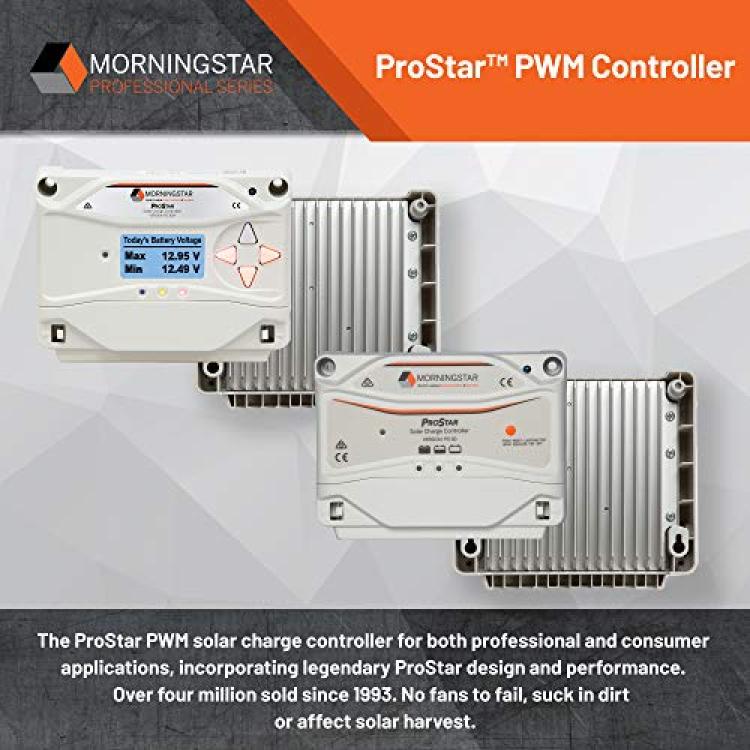

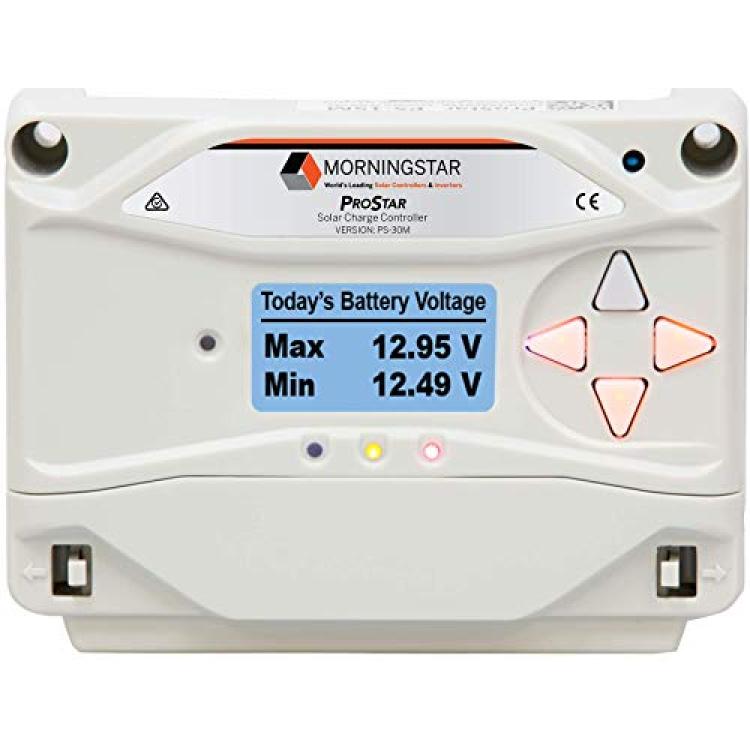

Morningstar ProStar is the world’s leading mid-range solar controller for both professional and consumer applications. These are the "Top of the line" in charge controllers for small systems. The ProStar 15M features "intelligent" charge controlling that will significantly improve battery life and performance. Settings for sealed or flooded batteries, low voltage disconnect, temperature compensation and PWM (pulse width modulation) battery charging. LCD display shows battery voltage, solar amps and load amps. For 12V or 24V systems, rated PV current 15 amps, rated load current 15 amps. Specifications: Model #: PS-15M Battery Vdc (voltage direct current): 12/24 Solar Amps: 15A Load Amps: 15 A Weight: 1 lb./.45 kg Dimensions: 6" x 4.1" x 2.1"/ 152.4 x 104.14 x 53.34 mm Warranty info: 5 year limited warranty from manufacturer
