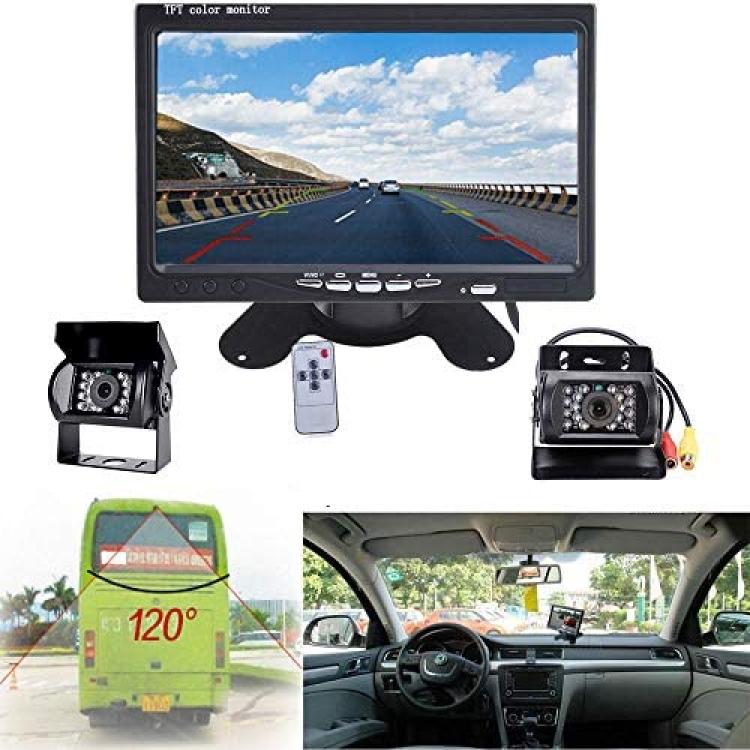

HD Backup Camera and Monitor Kit 7 Inch LCD Rear View Monitor Easy Installation for Cars, Trucks, Pickups, Hard-Wired Dual Waterproof Night Vision Camera Continuous Use Grid Lines

Dual Backup Camera Car Rear View Monitor Kit for Truck Bus RV 18 IR LED Night Vision Rearview Reverse Camera

7" LCD Dual Backup Camera Car Rear View Monitor Kit:
Resolution: 800*480
System: PAL/NTSC auto
Power: DC9V-35V
Power consumption: about 6W
Video: 2 video inputs
Rear view pictures can be overturned by the butons of Up / Down / Left / Right
All functions can be operated by remote control, or buttons on the device

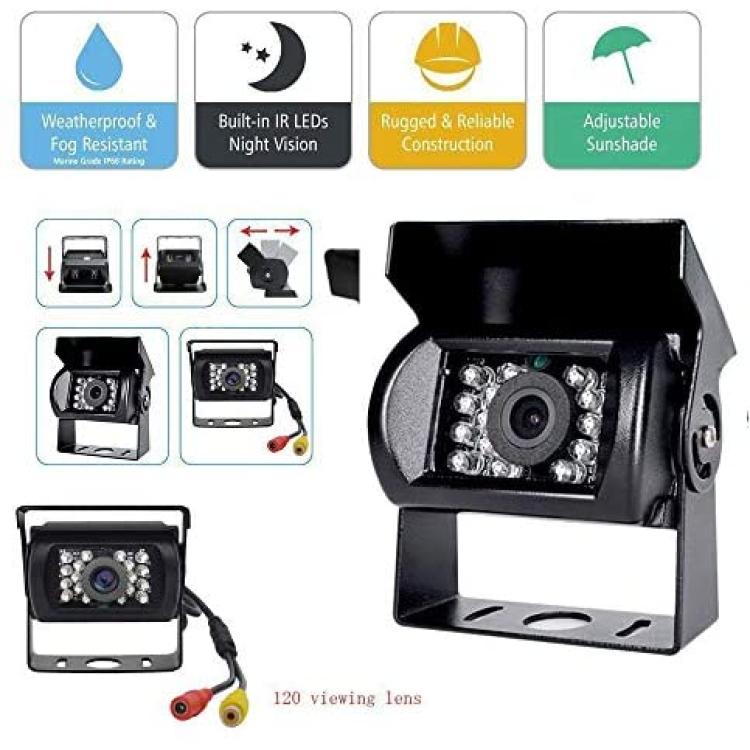

Backup Camera(With guide line):
Image Sensor: 1/3 "SONY CCD
Auto white balance
Lens: F = 2.15mm F4.05
TV Line: 480
View angle : 120 degrees
Operating voltage: 9V-35V
Operating temperature: -20 degree -80 degree

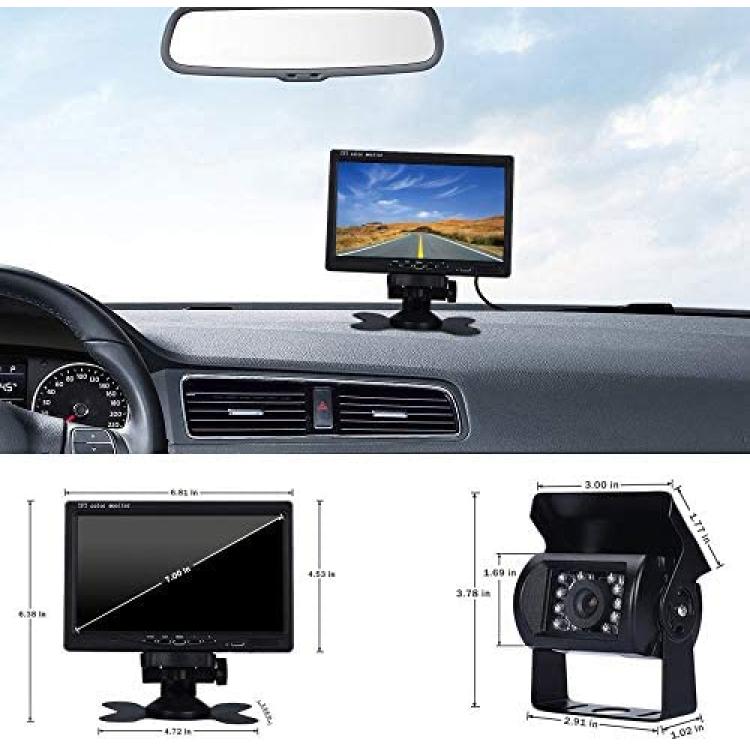

External type: square 26 * 31mm
Output line: power, signal lines, ground
Video Output: Composite video cable (75 Euro)
Operating temperature: -20 degree ~ + 80 degree, RH95%
Storage temperature: -40 degree ~ + 100 degree , RH95%
IP68 waterproof, shockproof, high temperature and high humidity resistance

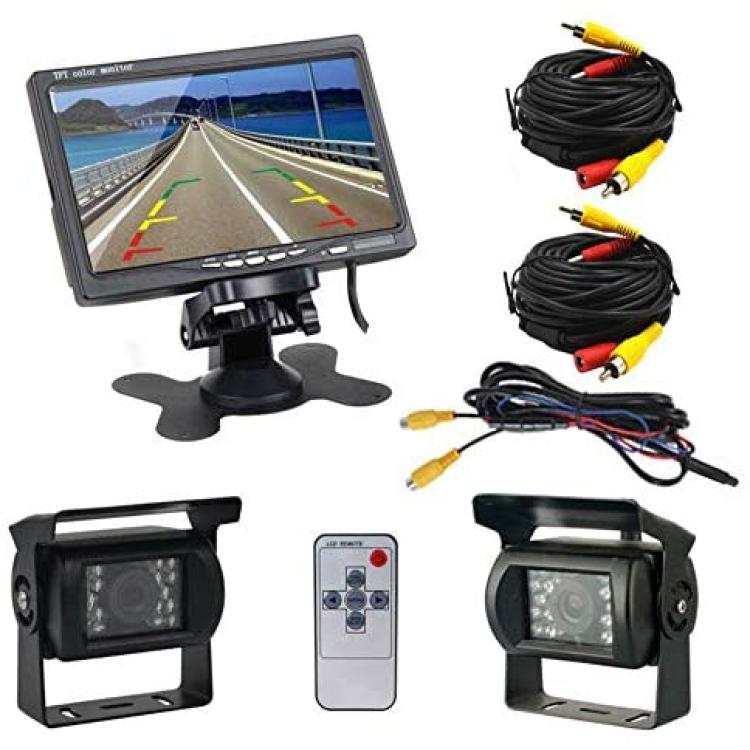

Package Included:
2 x Backup Cameras
1 x 7'' Monitor
2 x10M(33FT) AV Video Cable
1 x Power Cable(20FT)
1 x Remote Controller
1 x Mount Bracket
1 x User Manual


Note: Install is a very easy process.
Two cameras can connect to constant power or backup light source.

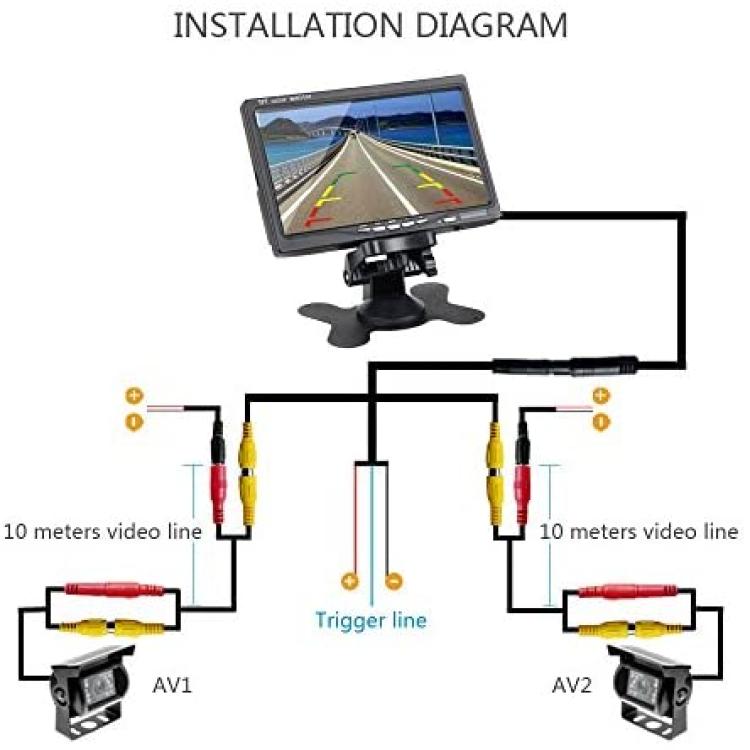

1. Monitor port: The monitor has a red, black and blue (green) cable. The red wire connected to positive 12V, black wire to ground, the green(blue) wire is V2 reverse trigger. You could connect blue wire to backup light positive source. When car shifts into reverse, monitor will show V2 image automatically. If you want 2 cameras full time working, do not connect with blue wire.
Use AV cable to wiring 2 cameras to the monitor directly.

2. Camera Port:Package include 2 power cord, connect camera to backup light power, red wire to positive, black wire to ground. Or use constant 12V/24V battery to power on two came
