Mutoh VJ-1204 / VJ-1304 / VJ-1604 / VJ-1604W / VJ-1608 Printhead - DF-49684

Mutoh VJ-1204 / VJ-1304 / VJ-1604 / VJ-1604W / VJ-1608 printhead (DX5) -DF-49684

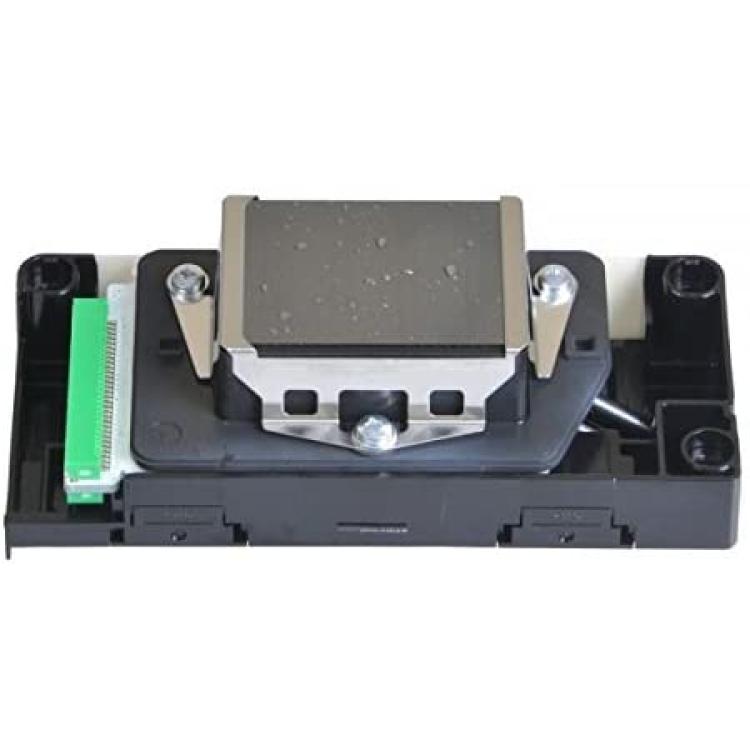

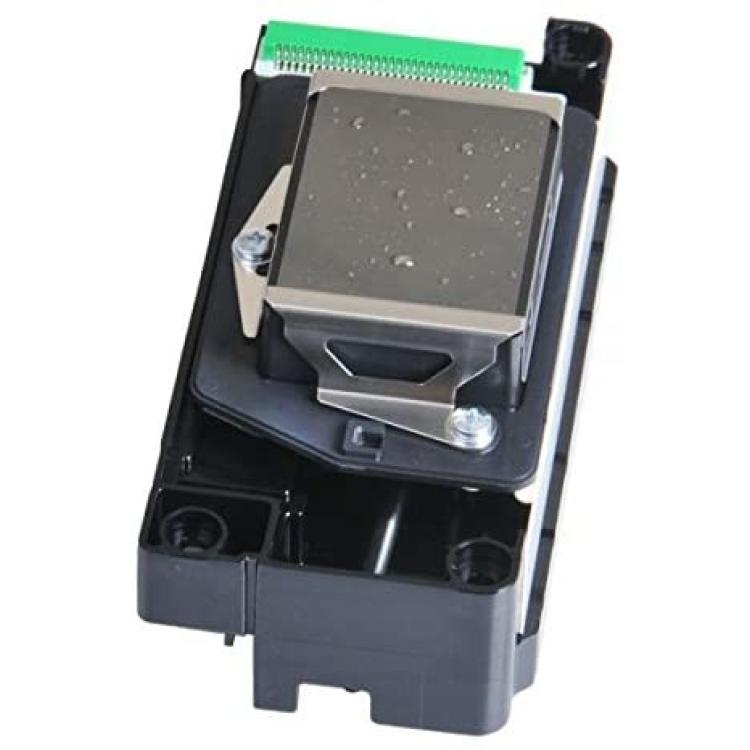

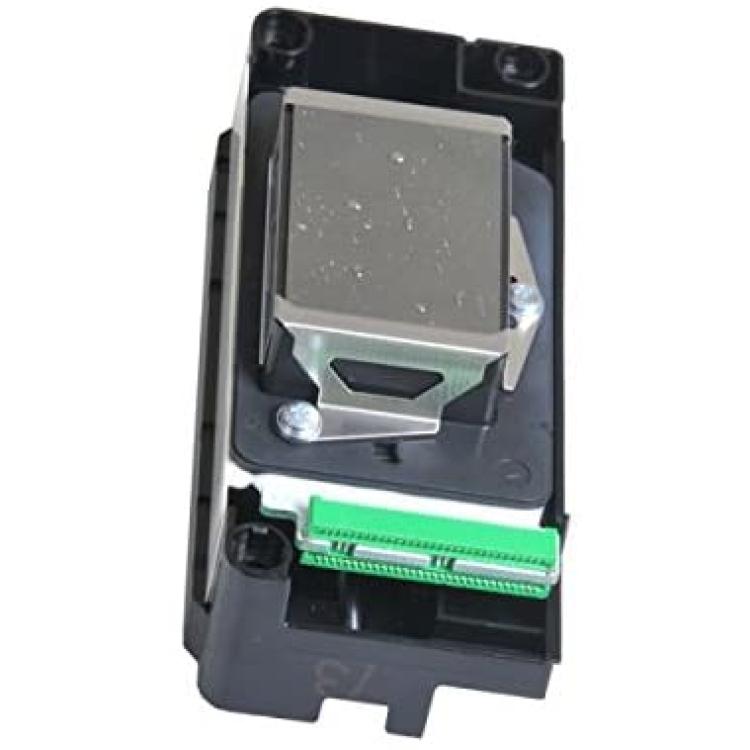

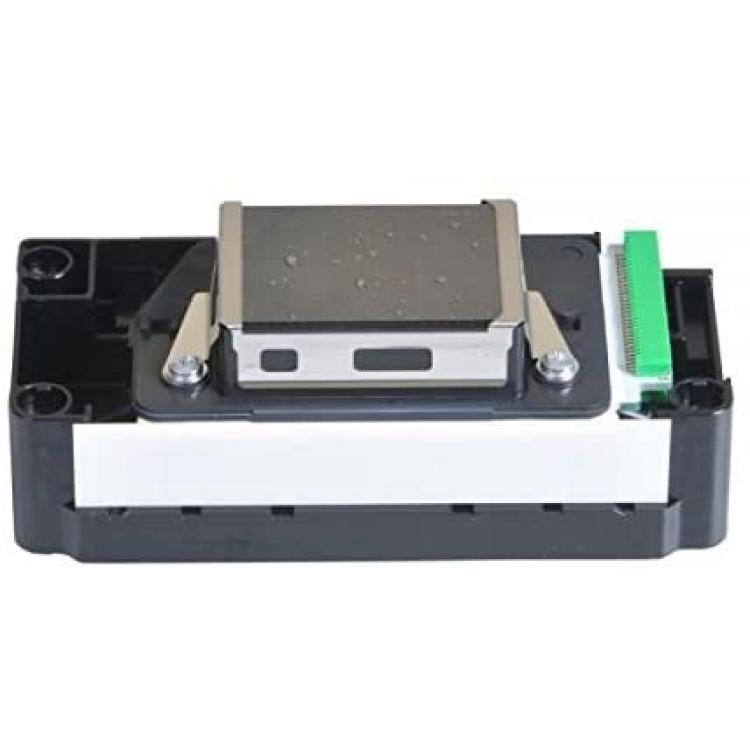

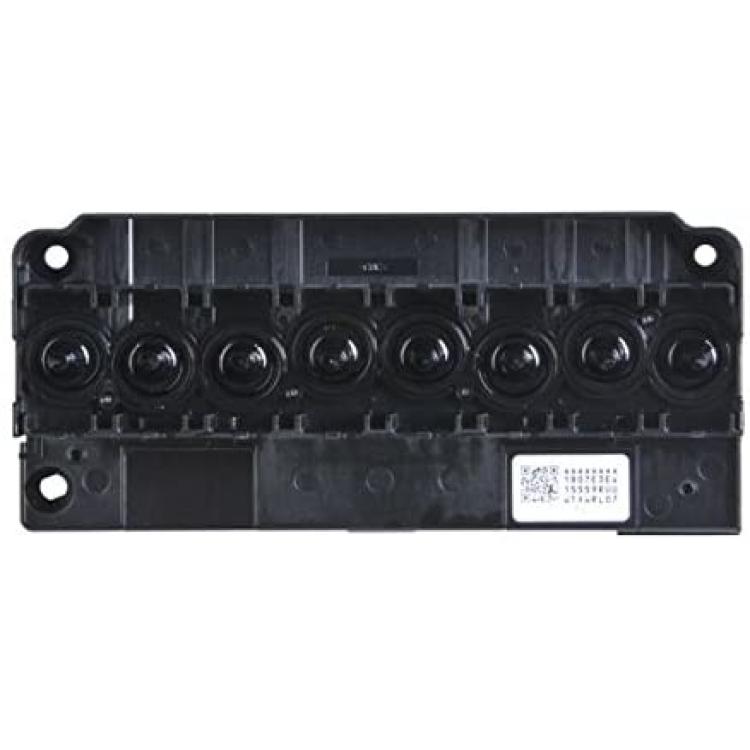

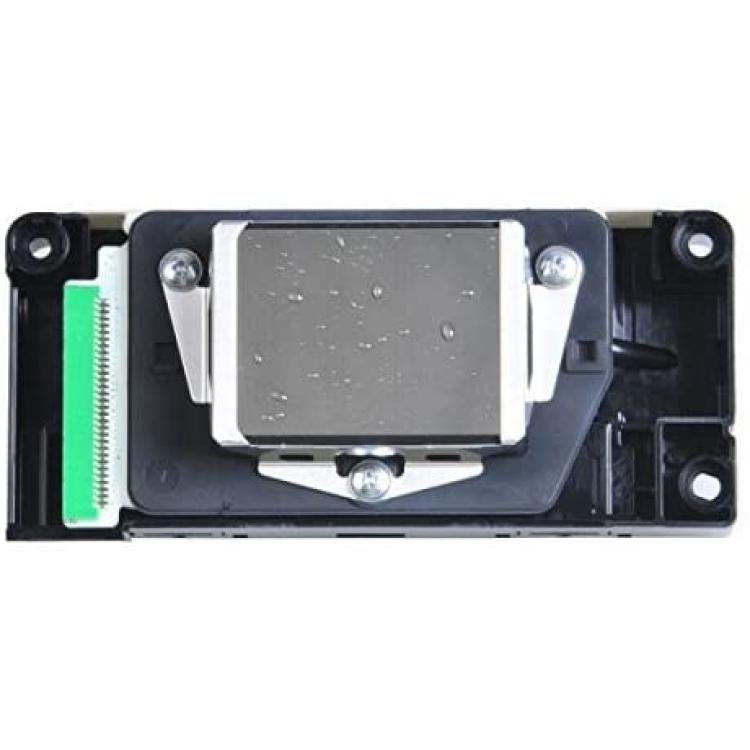

This printhead is suitable for the Mutoh ValueJet printer series. It has a native resolution of 1440dpi, 8 nozzle lines (corresponding with 8 independent ink channels) and 180 nozzles per line
This printhead is either used in 4-colours (2 channels per colour) and has a minimum, variable droplet size of 1.5 pico litre (max. droplet size is 21 pico litre). The typical firing frequency for this print head is 8 kHz
It is a new generation printhead that allows fast speed, high resolution printing with eco-solvent and mild solvent inks
To be used with: VJ-1204, VJ-1304, VJ-1604, VJ-1604W, VJ-1608
Remarks: Original
Part no.: DF-49684
Specifications
? Technology: Micro-Piezo
? Native resolution: 1440 dpi
? Min. Droplet Size: 1.5 pico litre
? Max. Droplet Size: 21 pico litre
? Tot. Amount of Nozzles: 1440 (8 lines x 180 nozzles)
? Firing Frequency: 8 kHz
? Ink Compatibility: eco-solvent and mild solvent
Attention:
1.The head should installed by the technician person
2. Due to the nature of printer parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and contact us
3.The fragile sticker pasted on printheads is a label to prove that such products are sold from our company. Please be aware that REMOVING the label and INSTALLING the printhead on your machine, you WON'T be entitled to our aftersales services including technical support, return and refund
