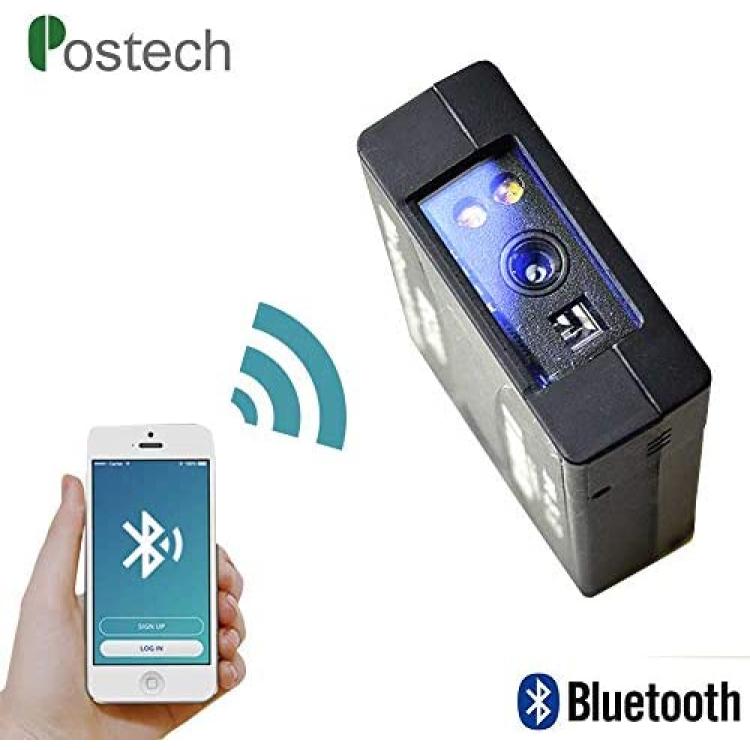

Wireless Wearable Scanner 2D Imager 752X480 Scan Barcode, MS3392-M Barcode Scanner- PDF417 & DM Reader with 6000pcs Memory for Logistic & Erp Systems (Black)
Availability: In Stock
About this product

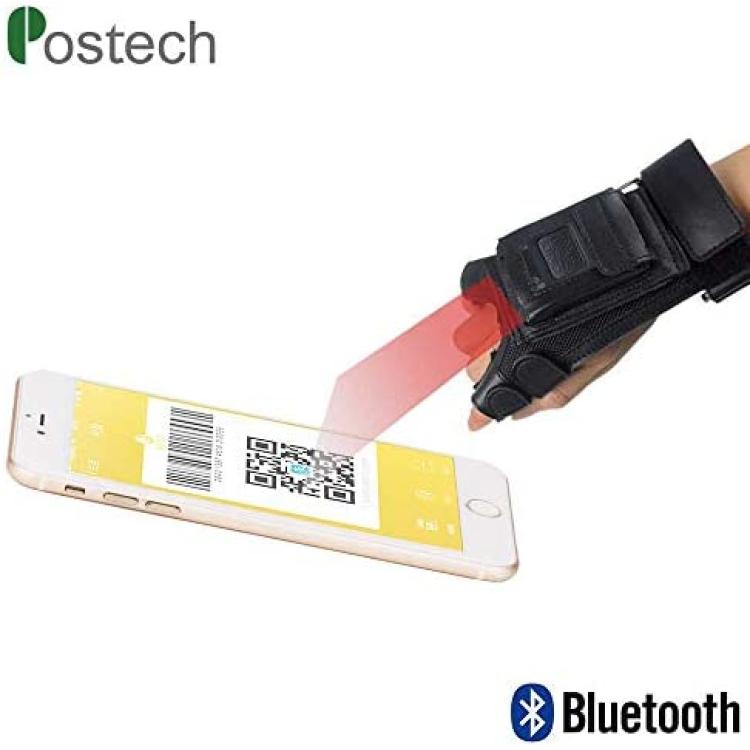

*✿【 BLUETOOTH SCANNER TYPE】: Wearable Scanner Finger Scanner Wrist Straps A Scanner Wireless scanner barcode 2d scan barcode- ❤ 【 Extra Source 】Please message us if you need trigger gloves. ❤ 【 Barcode Type 】1D: Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey - 2D: PDF417, Data Matrix, QR Code, Chinese Sensible Code.

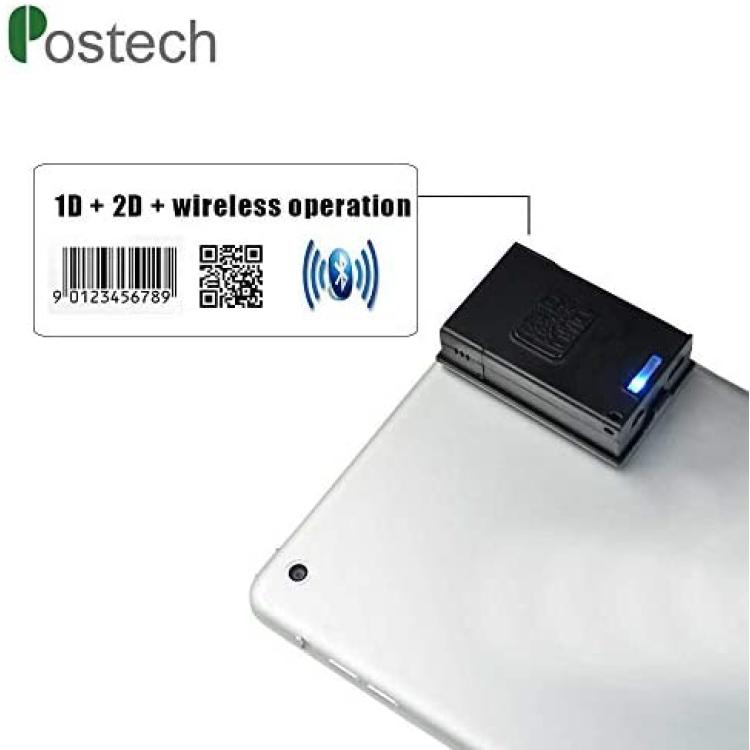

*✿ 【 BOTH HID AND SPP MODES】: 2D bluetooth barcode scan jacket MS3392 support HID and SPP mode, MS3392-HID is designed for iOS system like Iphone and Ipad. It no need install any driver or software to scan barcode in iPhone just pairing bluetooth one time. - ❤ Size: Length60.0*Width37.8*Height14.6mm - By using MS3392 barcode scanjacket, you do not need to buy expensive, heavy PDA anymore!
*✿ 【 6000PCS BIG MEMORY 】Build in memory can save 6000 pcs barcode without any connection.- ❤ Connections: Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
*✿ 【 BUILD-IN HIGH VOLUME BATTERY 】: Built-in changeable 800mAh Li-ion Battery, Standby 5 days, Charge time 1.5 hours
*✿ 【 SENSOR TYPE】 :752X480COMS - ▲ NOTE: We are the manufacture of barcode scanner and magnetic card reader writer. There is 2 year warranty!
Description
We are the manufacture of barcode scanner and magnetic card reader writer. There is 2 year warranty!
? Specification: ?
Size: Length60.0*Width37.8*Height14.6mm
Electrical Power: DC5V Typical: 230mA DC5V

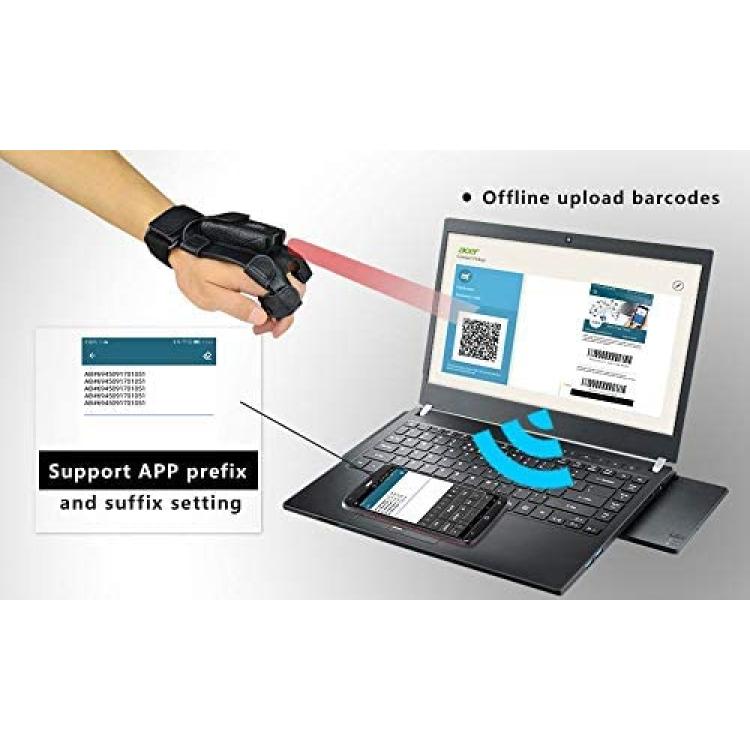

Data storage :100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Scan mode: Manual mode, Continuous, Host, Sense mode
Ambient illumination: 0~100,000 lux
Scanner performance:
Sensor Type: 752×480 CMOS
Light: 612nm-624nm red LED; 650nm laser diode
Scanner Angle: ±55°,±55°,±360°(skew, pitch, Roll)
Contrast: ?20%
Decode Speed: 30 times per second

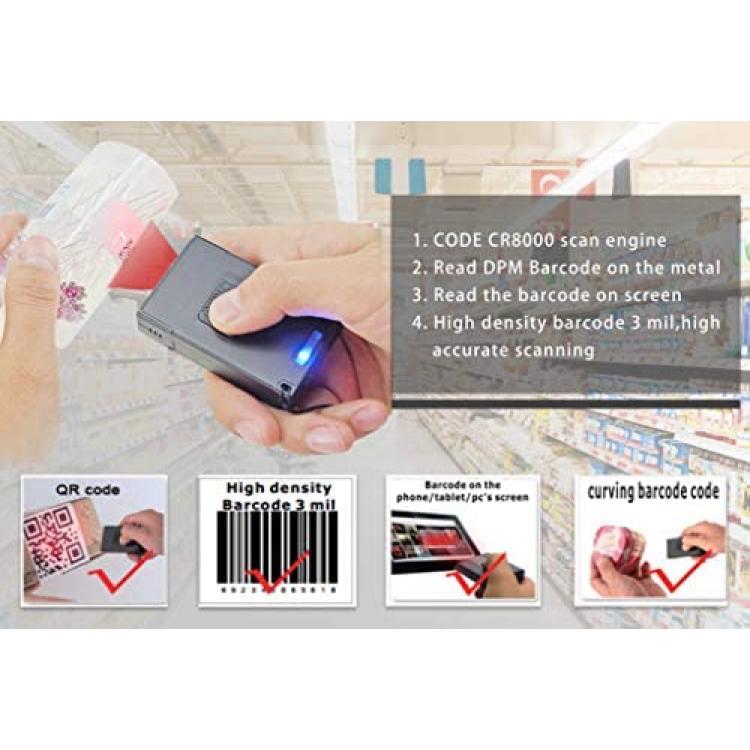

Reading accuracy: ? 3mil
Barcode Type
1D:
Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey
2D:
PDF417, Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code, Chinese Sensible Code
Decoding depth &Max. Resolution(1 mil = 0.0254 mm):
EAN-13: 60mm -290mm (13mil);
Code 39: 55mm -165mm (5mil);
PDF417 55mm -135mm (6.7mil);
Data Matrix: 55mm -130mm (10mil);
QR Code: 45mm -175mm (15mil);

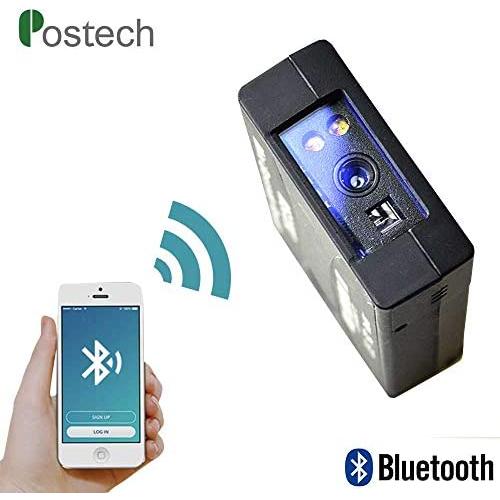

Communication: Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
OS:IOS, Android, Windows, Mac
Temperature:
Operating: -20°C to 60°C (-4°F to 140°F);
Storage: -40°C to 70°C (-40°F to 158°F)
Humidity :5% to 90% (non-condensing)

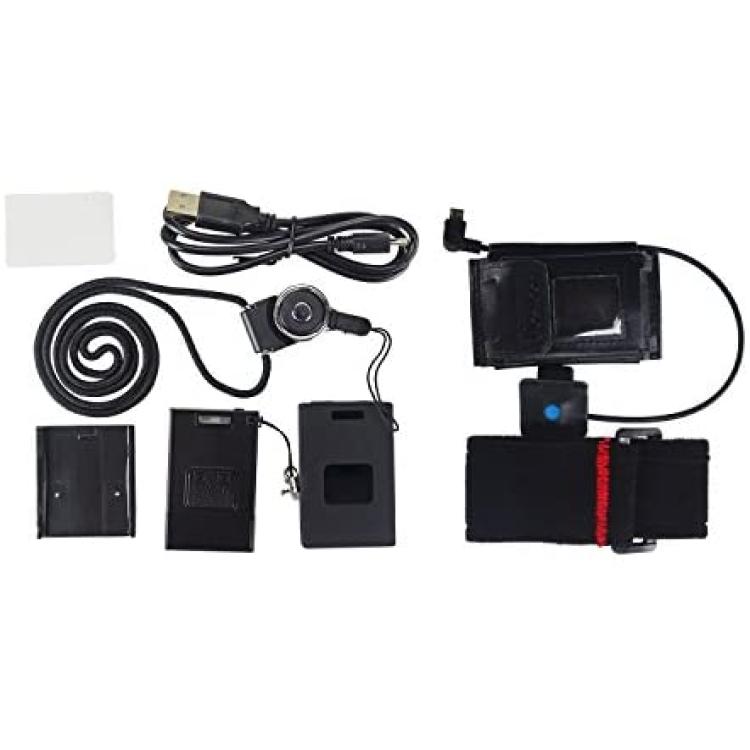

Package List:
1* MS3392-M barcode scanner
1* USB cable
1* Magnetic suction cable
1* Scanner jacket & 1* double faced adhesive tape for Jacket
(fixed the scanner to mobile device)
1* Silicone Case

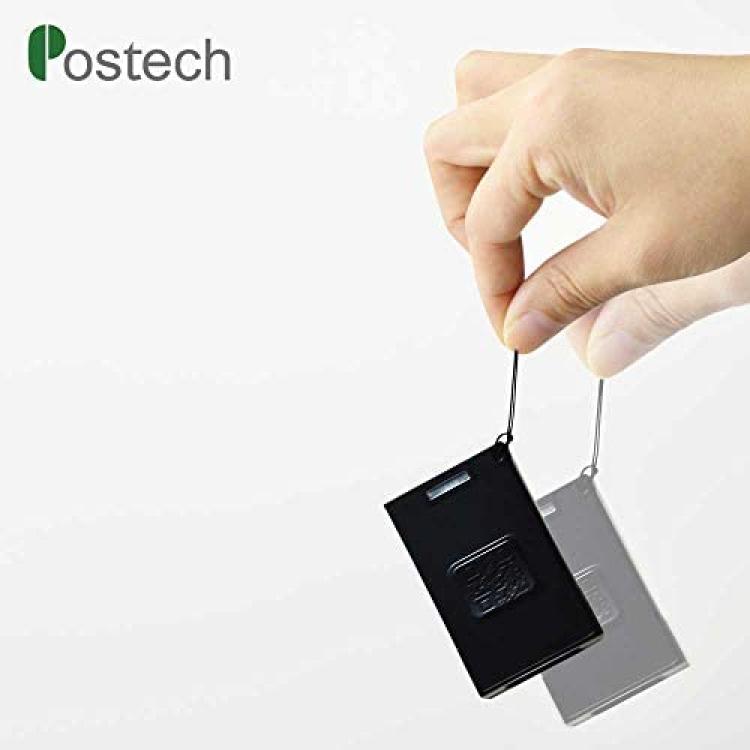

1* Lanyard
1* User manual
