Koh-I-Noor- Set of 3 Electro Templates

Product Code: HSM37431
Availability: In Stock

US$7.47

- +

For Bulk Order, Get Better Price.

About this product

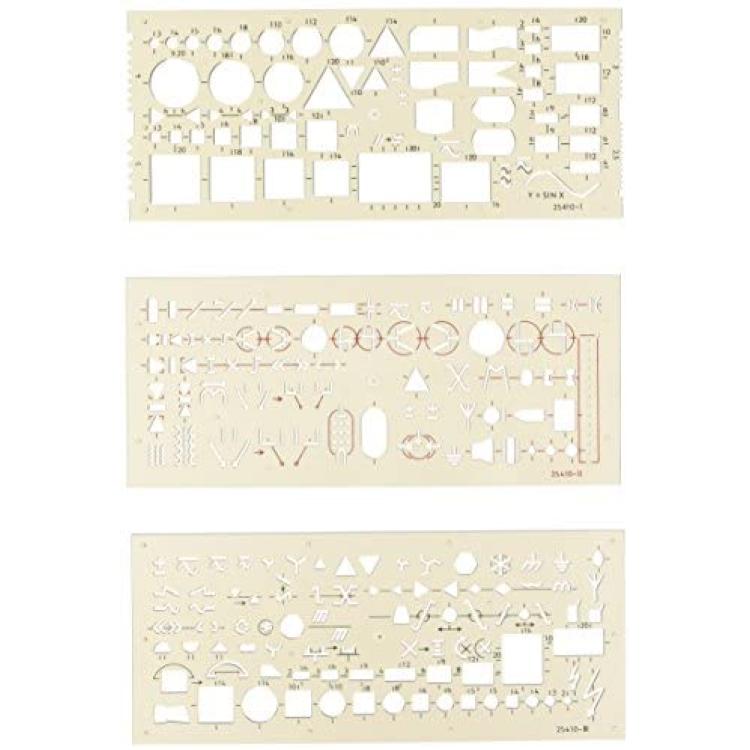

*Set of 3 Electronic Electrical Symbols Drawing Template Stencil

*Dimensions: 210 x 90mm (each), Thickness: 1.5mm. Made from transparent, grey dimmed plastic.

*I - General Symbols: circles, triangles,squares, rectangles, data flow chart symbols, sinusoid symbols, polarity symbols in different sizes

*II - Electronic Circuit Symbols: capacitor, switch, transformer, terminals, rectifier diode, transistor, loudspeaker, earth, resistor symbols

*III - Electrical Layout Symbols: lights, socket, earth, delta and star, aerial, speaker, and many other symbols in different sizes.

Description

Electrical Engineering and Electronic Installation Symbols Drawing Template Stencil - Engineering Drafting Supplies - Layout Plan Schematic Wiring. Dimensions: 230 x 130mm, Thickness: 1.2mm. Made from transparent, orange plastic. The rate of transparency allows to see the drawing medium below template for easy positioning. This electrical / electronic engineering stencil contains symbols of contacts, switches, rectifiers, capacitors, transformer coils, terminals, diodes, transistors, and many others. Ideal for students, teachers, engineers, useful when drawing diagrams, schematics, plans, layouts. High quality, brand new item supplied in original packaging.
