Analog FXO Card with 4 FXO Ports,PCI Express (PCI-E) Connector,For Issabel ,Freepbx,AsteriskNow tdm410e Fori VoIP Telephone System IP PBX
Availability: Pre-Order, Inquiry Price
About this product
*Analog FXS FXO Card with 4 FXO ports.* FXO module is red,FXS module is green,the FXO port connects the traditional telephone line(landline), the FXS port connects the traditional telephone.
*PCI Express (PCI-E) connector
*Supports Asterisk,Freepbx,Issabel,AsteriskNow,vitalpbx voip pbx Elastix 4, Briker, easyAsterisk tcpbx and other open source softwares.
*with 4 FXO modules,supports asterisk card interface PCIe
*Using the card, open source software and PC,you can build a telephone solution / IP PBX / call center /SIP server/VoIP Gateway Trunk appliance based on the card easily at a very low cost.
Description

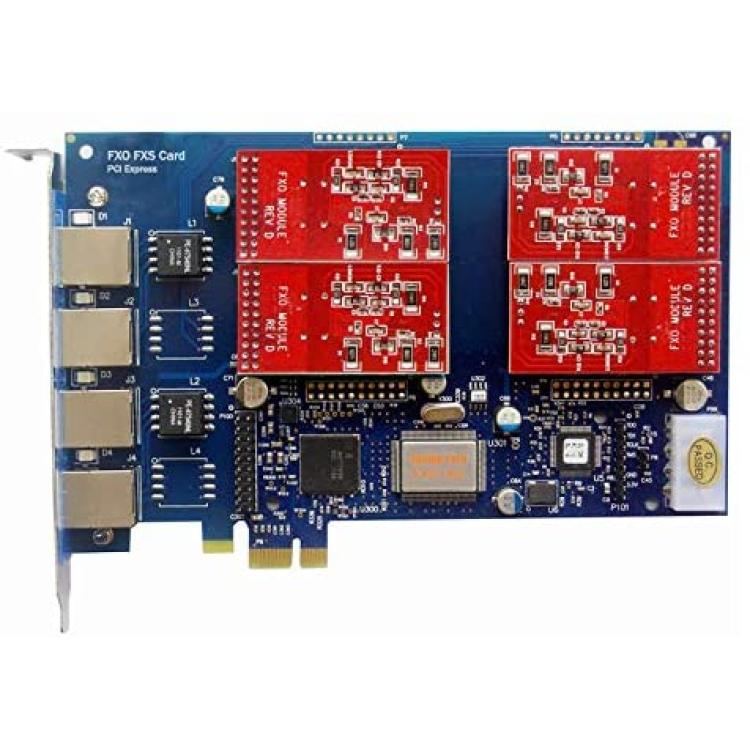

The card is with 4 FXO modules installed.
Supports Freepbx,Issabel ,AsteriskNow...
PCI-E Connector

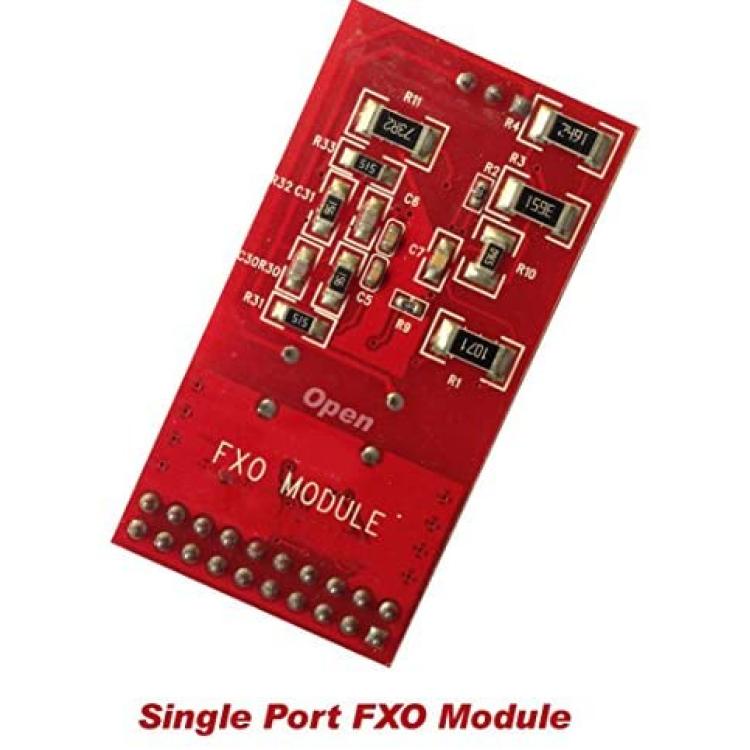

--The FXO module is in red and the FXS module is in green.

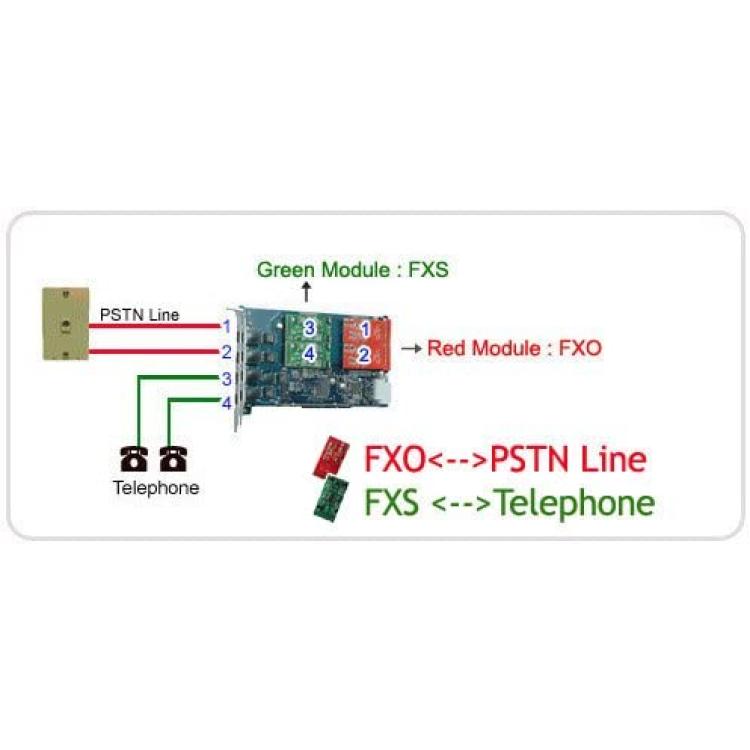

--FXO port connects to PSTN line and the FXS port connects to the telephone.
The Analog card supports asterisk,Issabel ,FreePBX...
Using the analog card, open source VoIP PBX and stand alone PC, users can create their SOHO telephony solution include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.

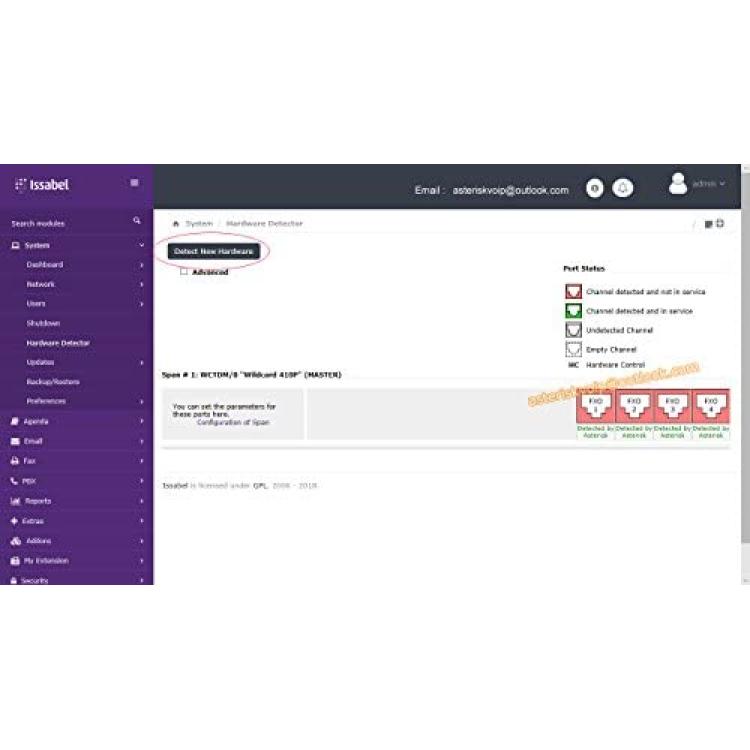

Issabel / FreePBX / AsteriskNow Settings:

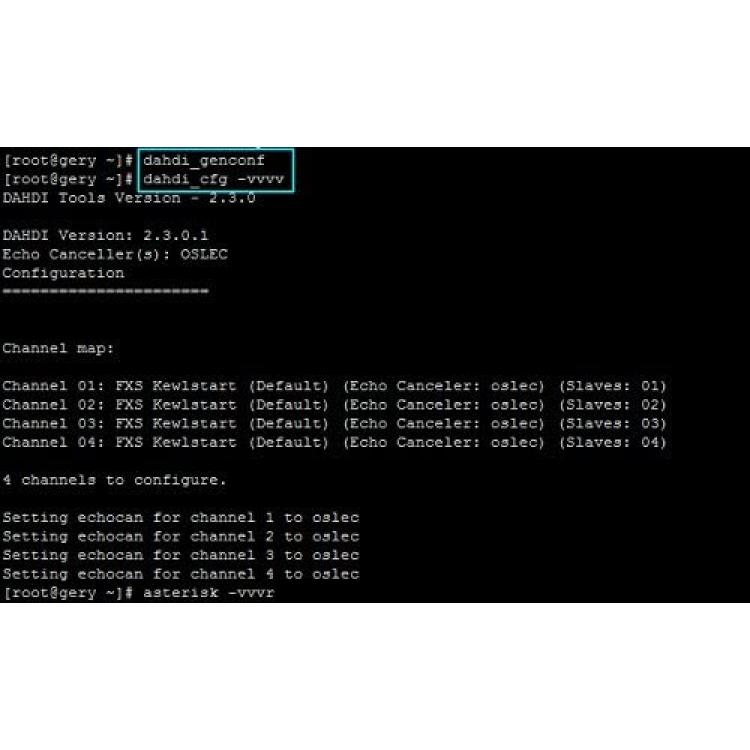

[ .localdomain]#dahdi_genconf
[ .localdomain]#dahdi_cfg -vvvv
Configuration
=====================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 01)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 02)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 03)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2) (Slaves: 04)
======================
