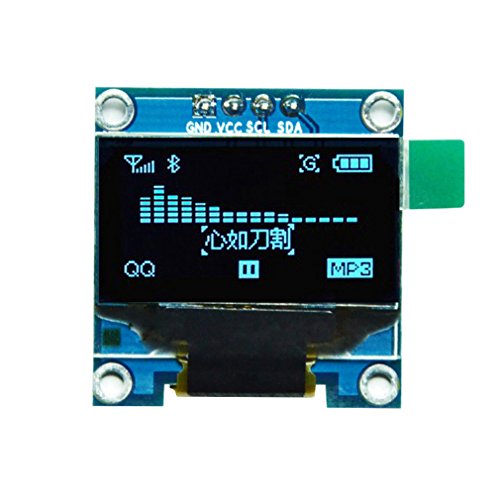

HiLetgo 0.96'' I2C IIC SPI Serial 128X64 OLED LCD Display 4 Pin Font Color Blue

HiLetgo 0.96" I2C IIC SPI Serial 128X64 OLED LCD Display 4 Pin Font Color Blue
Feature:
Super High Brightness (Adjustable)
Super High Contrast (Adjustable)
Embedded Driver/Controller
Colors: White/Blue/Blue Yellow
Drive Duty: 1/64 Duty
Pixels: 128x64
Panel Size: 26.70mm x 19.26mm x 1.85mm
Active Area: 21.74mm x 11.2mm
Pixel Size: 0.15mm x 0.15mm
This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01
Needn't backlight, the display unit can self-luminous
High resolution: 128 * 64
Viewing angle:> 160 °
Supports many control chip: Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Voltage: 3V ~ 5V DC
Working Temperature: -30 ? ~ 70 ?
Module Size: 27.0MM * 27.0MM * 4.1MM
I2C/IIC Interface, need 2 IO only.
Driver IC: SSD1306
Package included:
1* 0.96" I2C IIC SPI Serial 128X64 OLED LCD Display
Note:

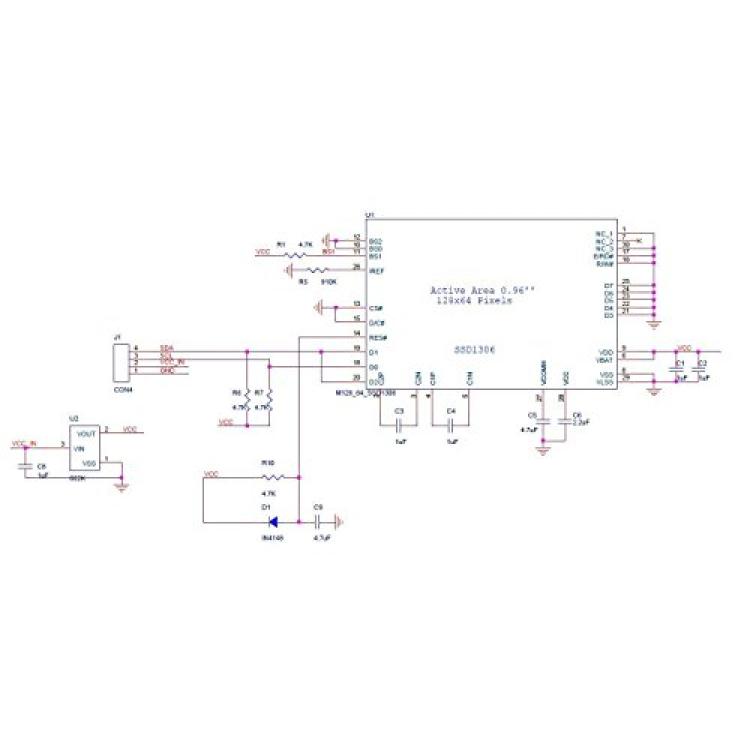

Please contact us if you need the Schematic/Program code/User Manual etc.
