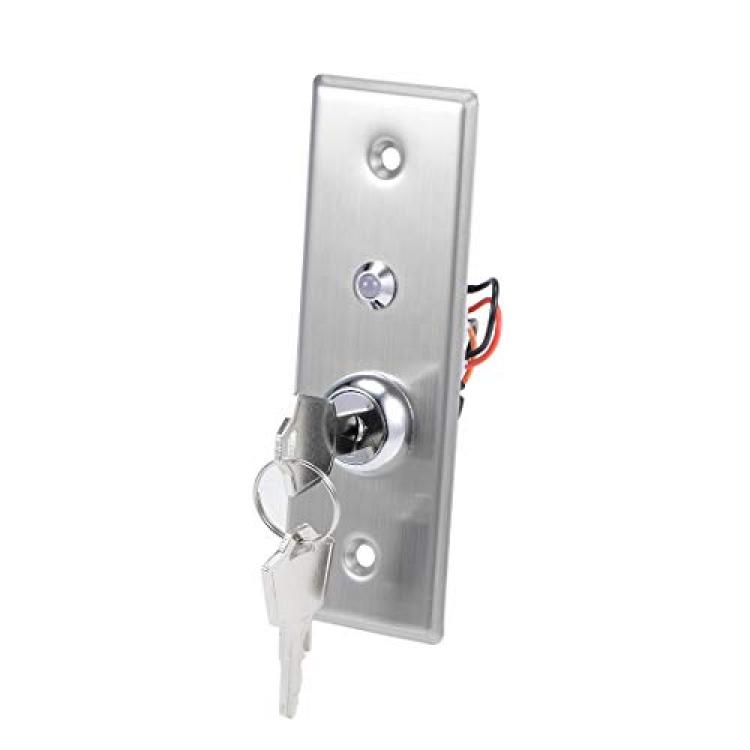

uxcell On/Off Key Switch Exit Switches Emergency Door SPST with DC 12V Red Green LED Indicator
Availability: Pre-Order, Inquiry Price
About this product
*Turn key to ON Position and remains in ON position (key will pull out)
*Universal key switch. Will work with all gate and garage door openers
*Stainless steel plate accepts standard 19mm (3/4") barrel
*Switch Rated Current: 4A 125V AC, 2A 250V AC; Indicator Rated Voltage: DC 12V
*The indicator would change color when turning on or off the switch
Description
Description:
-This key switch is an emergency switch button with a special mechanical key for emergency situations.
-Exit switches come in handy when one wants to regulate the comings and goings of people.
-19mm key switch lock with 2 keys, nice smooth action and easy to mount.
-Key is removable in both ON and OFF positions.
-The indicator would change color when turning on or off the switch.
-Anti-disassembly signal output.
NOTE:
NO-COM: Switch on, GREEN indicator on; Switch off, RED indicator on
NC-COM: Switch on, RED indicator on; Switch off, GREEN indicator on
Specification:
Panel Material: 304 Stainless Steel
Switch Rated Power: 4A 125V AC / 2A 250V AC
Indicator Rated Voltage: DC 12V
Type: SPST
Contacts Type: 1 NO, 1 NC, 1 COM, 2 TAMP

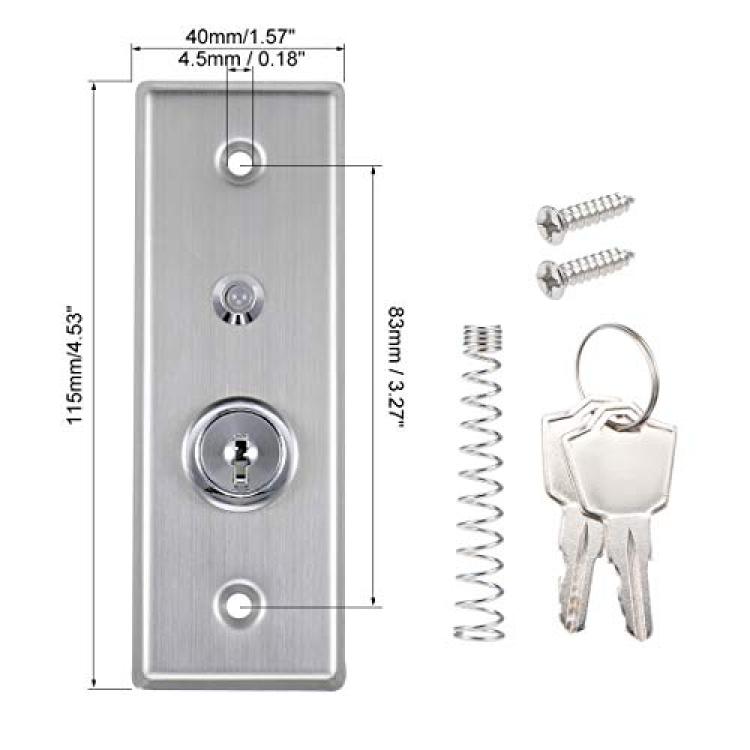

Panel Size: 115 x 40mm / 4.53" x 1.57" (L*W)
Mounting Cut Hole: 50 x 32mm / 1.97" x 1.26" (L*W)
Panel Mounting Hole Diameter: 4.5mm / 0.18"
Panel Mounting Hole Distance: 83mm / 3.27"
Package Content:
1 x Key Operated Switch
2 x Keys
2 x Mounting Screws
