MXTLASER Focusable D18X65 520-135 Direct Green Dot Laser Module for Positioning (Laser Module + Adapter + Holder)

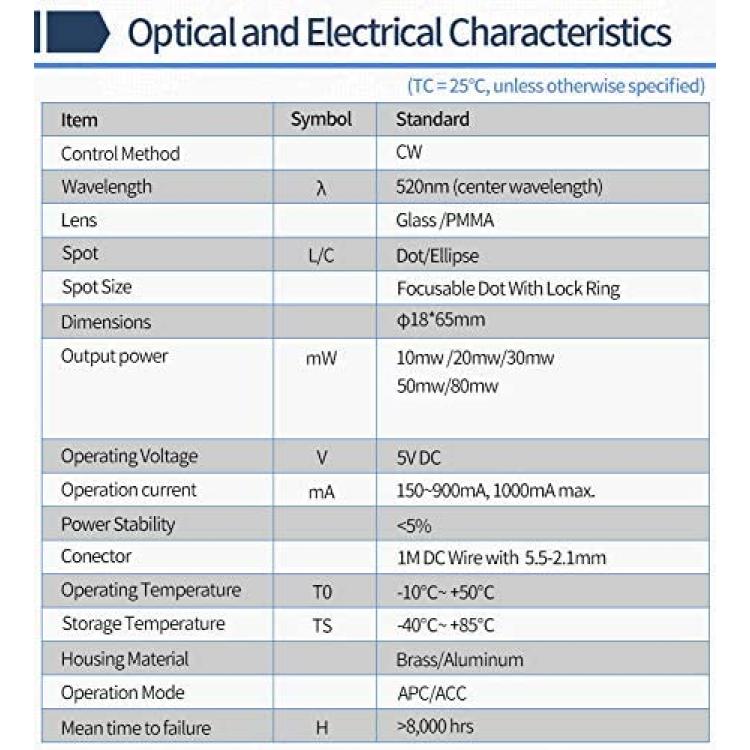

Optical and Electrical Characteristics
(TC = 25°C, unless otherwise specified)
Control Method: CW
Wavelength?520nm (center wavelength)

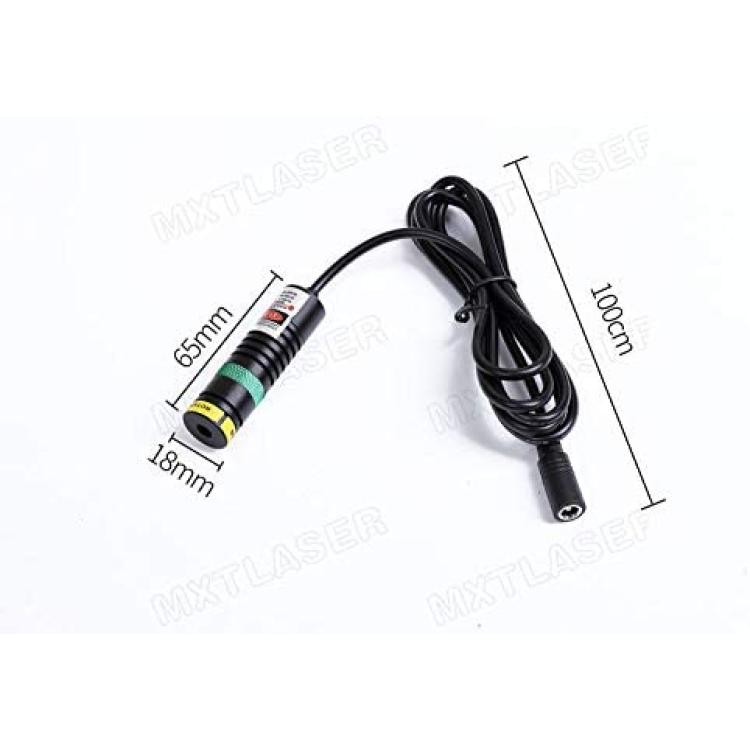

Dimensions?? 18x65mm
Spot: Dot/Ellipse

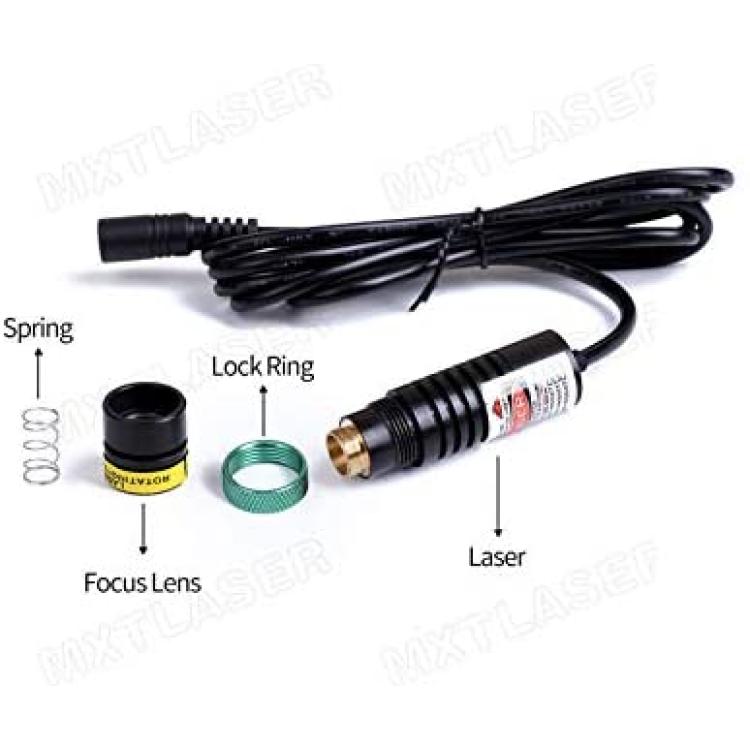

Spot Size: Focusable Line with Lock Ring
Output power(mW): 135
Operating Voltage: 5V DC
Operation current: 150~900mA, 1000mA MAX.
Power Stability: <5%
Conector: 1M DC Wire with 5.5-2.1mm
Operating Temperature: -10?~+50?
Storage Temperature: -40?~ + 85?
Housing Material: Brass/Aluminum
Operation Mode: APC / ACC
Mean time to failure: >8,000 hrs

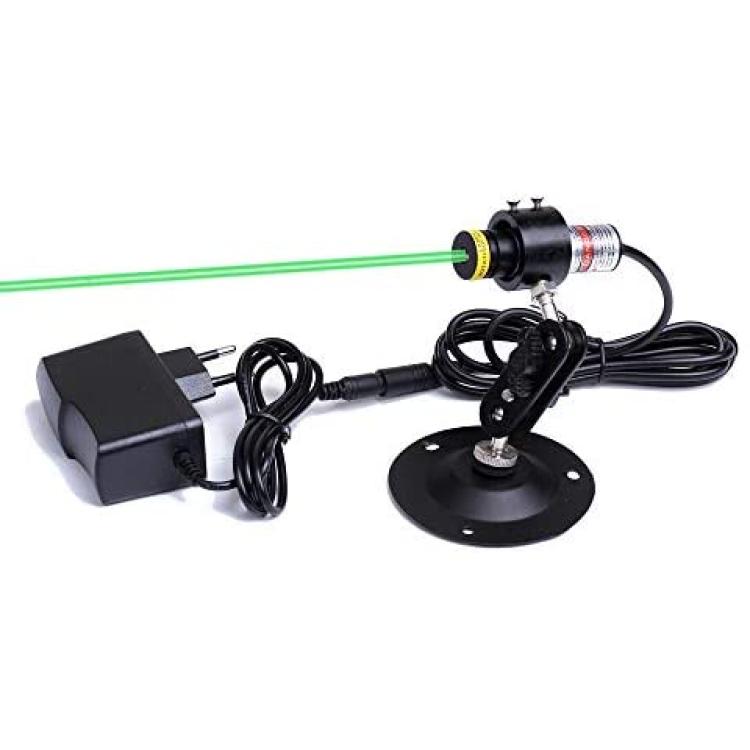

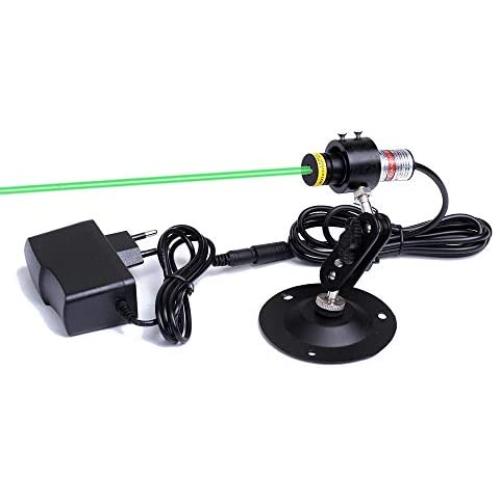

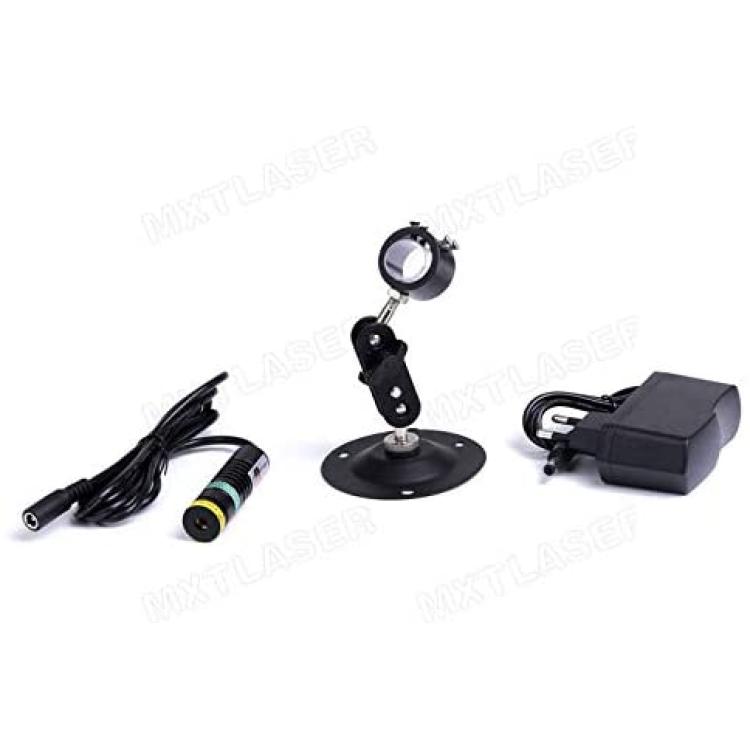

Package
-- 1 PCS Laser Module
-- 1 PCS Fixed bracket ( Standard Mount )
-- 1 PCS Power adapter (US Adapter)
-- ( if you need EU Adapter please leave message )

Applications
-- Clothes Cutting
-- Wood Cutting
-- Mechanical Positioning
-- all kinds of laser positioning


Customized Lasers
In the event that none of our standard products meet your exact requirements,
our customized design service provides single prototypes and small production
runs in just a few days. Our engineering and Design Team have over 10 years in
low power laser diode module design.
