Siemens 1LE21211AA314AA3 2-HP 3600 Rpm 230/460-volt 145t General Purpose Electric Motor Nema Premium Efficient Aluminum Frame, Aluminum Rotor
Availability: Pre-Order, Inquiry Price
About this product
*2 HP, 3600 RPM
*145T Frame
*208-230/460 Volt

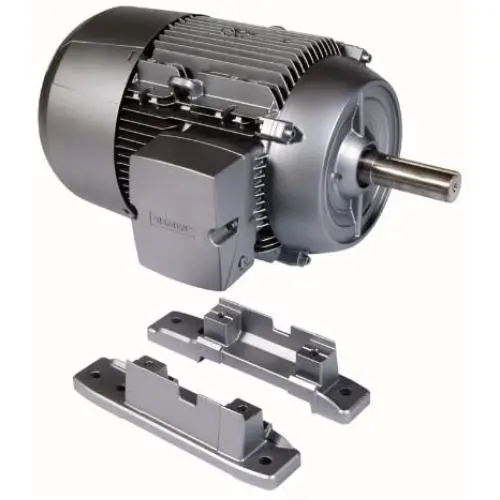

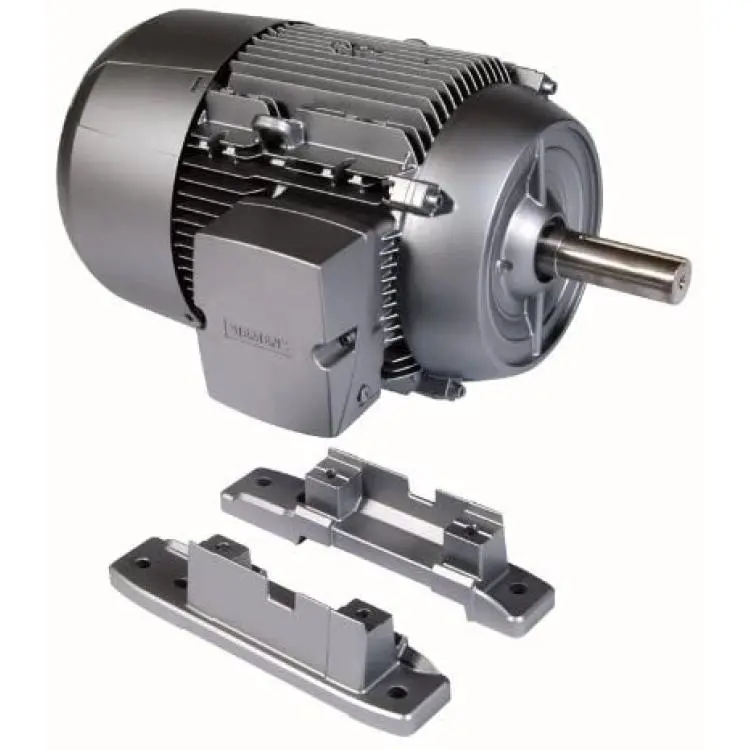

*Removable feet allow for F1, F2, F3 terminal box position
*Inverter Duty Rating Variable Torque 20:1 Constant Torque 4:1
Description
The line of Siemens aluminum frame motors is an evolution in motor design. Specially designed bolt-on mounting feet permit F1, F2 and F3 mounting flexibility without the need to disassemble the motor. The cast aluminum frame weighs less than comparable rolled-steel frame motor designs, yet provide more structural strength for a wider variety of industrial applications. Siemens aluminum frame motors feature a proprietary, inverter-rated, Class F insulation system with a Class B temperature rise at 1.0 service factor. This insulation system meets or exceeds NEMA MG1, Part 30 and 31 for adjustable sped drive operation.
