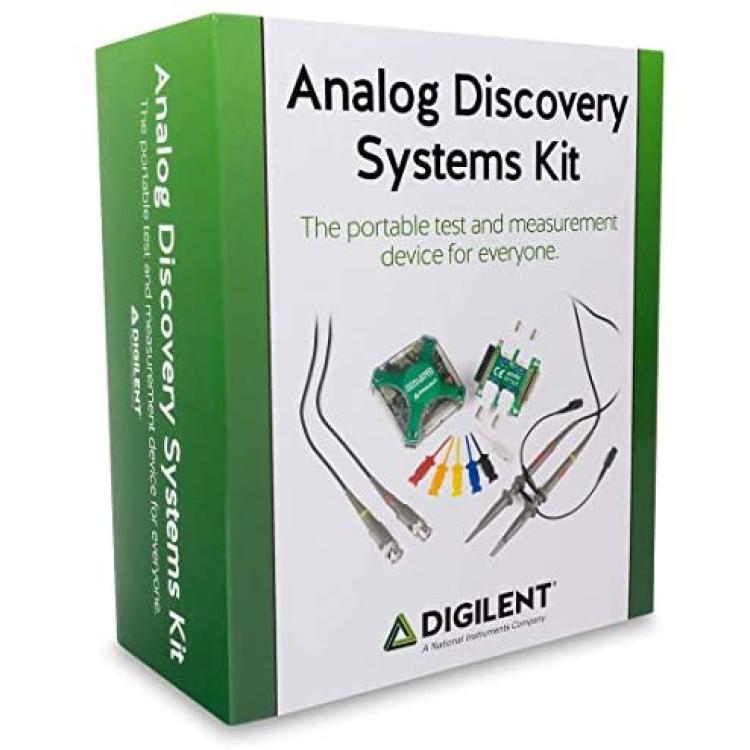

Analog Discovery Systems Kit: USB Oscilloscope & Logic Analyzer
Product Code: HSM27087
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*Two-channel USB digital oscilloscope, spectrum analyzer, and network analyzer (±25V, differential, 14-bit, 100MS/s, 30MHz+ bandwidth)
*Two-channel arbitrary function generator (±5V, 14-bit, 100MS/s, 12MHz+ bandwidth)
*16-channel digital logic analyzer, pattern generator, and protocol analyzer (3.3V CMOS and 1.8V or 5V tolerant, 100MS/s)
*Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)
*Additional instruments including a data logger, impedance analyzer, and power supplies
Description

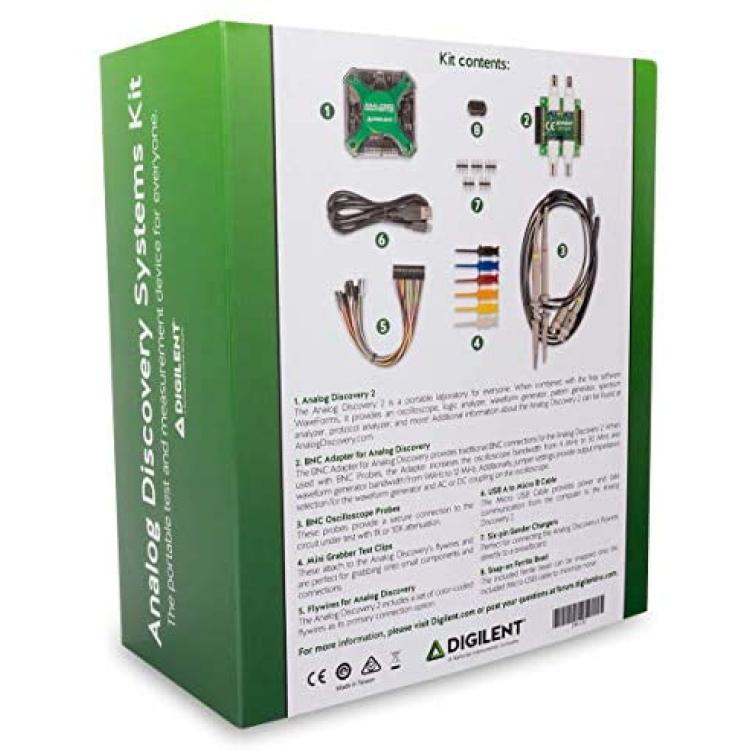

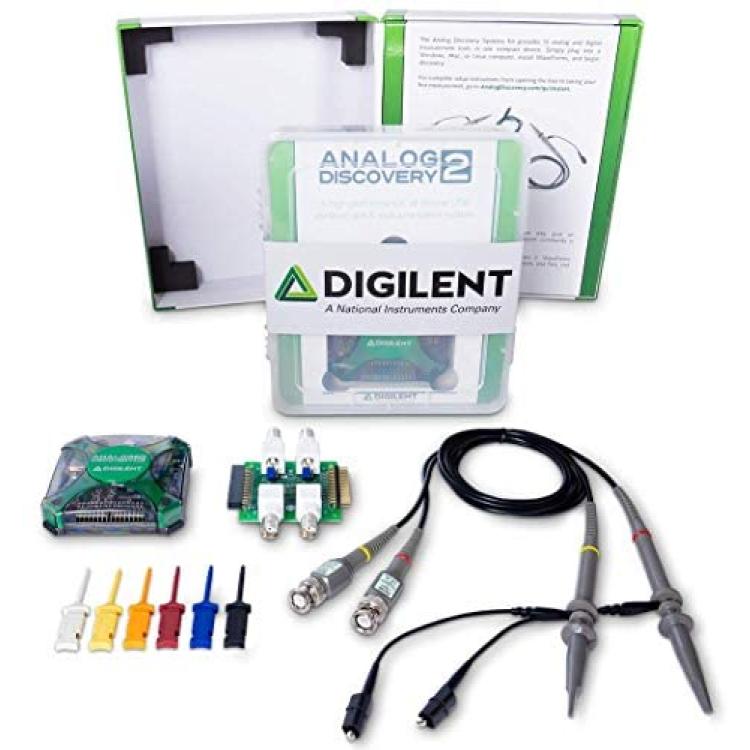

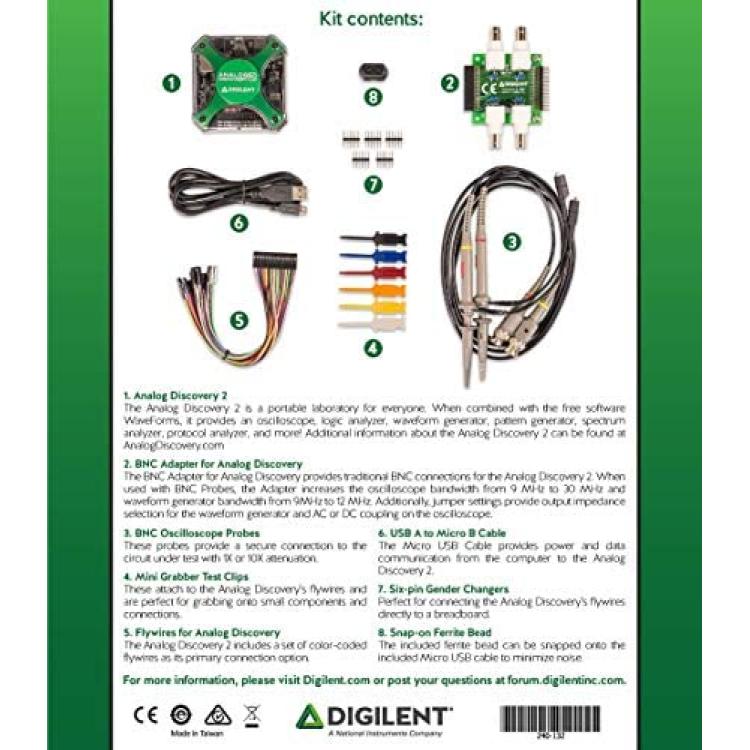

One regular sized project boxOne USB A to micro B programming cableOne 2x15 flywire signal cable assemblyOne 5-pack of 6-pin male headersOne ferrite cable snap-on<
