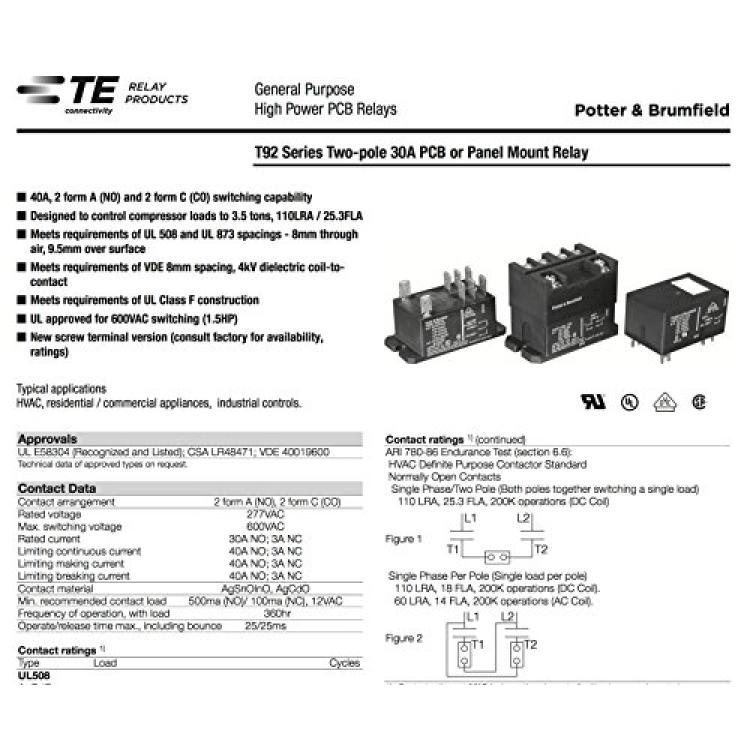

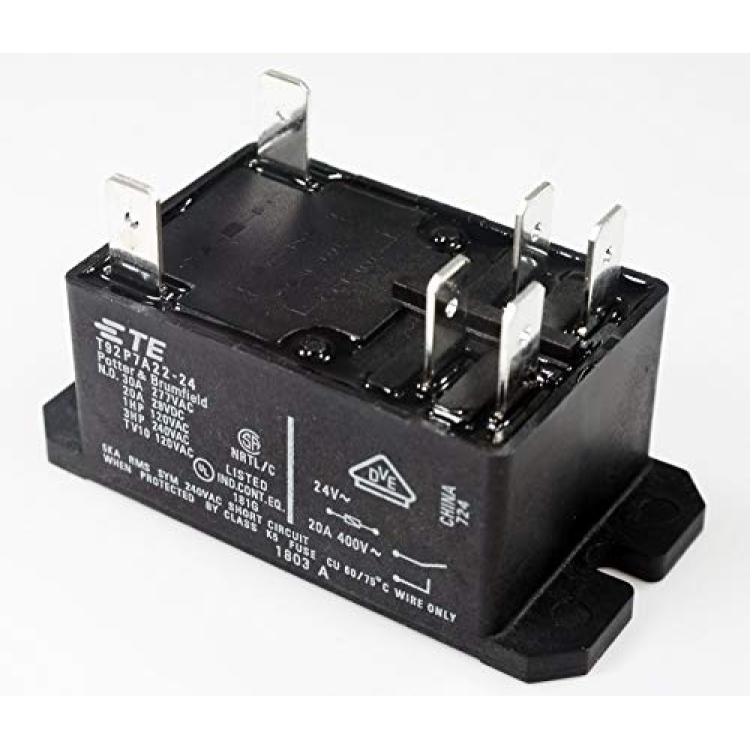

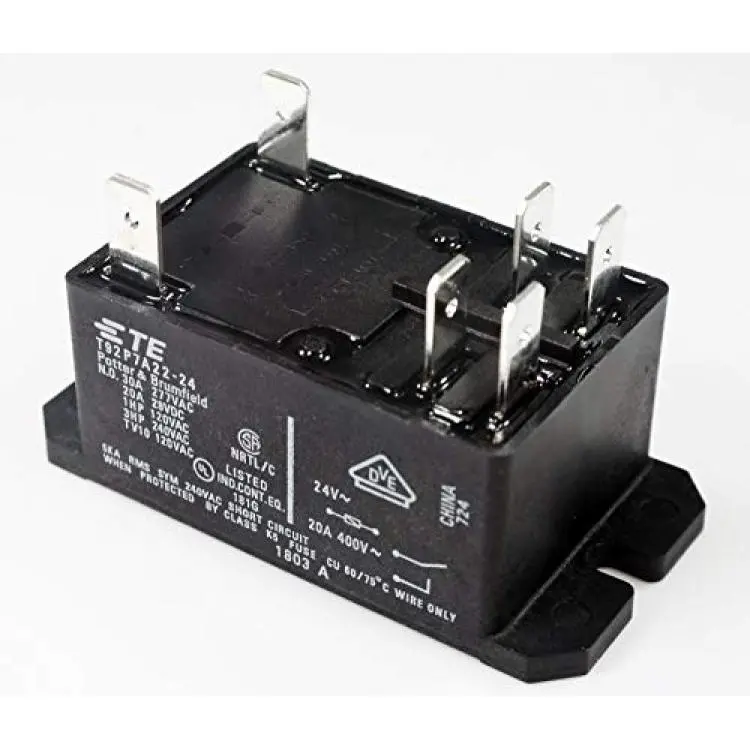

TE CONNECTIVITY/POTTER & BRUMFIELD T92P7A22-24 Power Relay, DPST-NO, 24VAC, 30A, Flange (Twо Расk)

About this product

*Price For: EachOrder Unit: Each 1 Coil Resistance:: 36.6 Coil Type:: Non Latching Coil Voltage:: 24 Coil Voltage VAC Nom:: 24 Contact Configuration:: DPST-NO Contact Current:: 40 Contact Current Max:: 40 Contact Material:: Silver Cadmium Oxide Contact Voltage AC Nom:: 600 Contact Voltage DC Nom:: 28 Contact Voltage VAC:: 277 Contact Voltage VDC:: 28

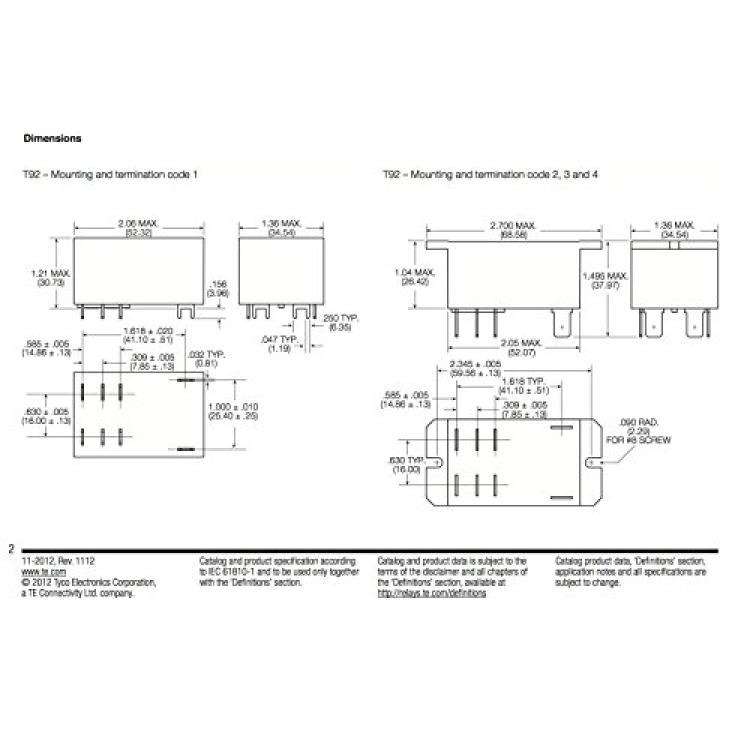

*External Depth:: 68.58 External Height:: 26.42 External Width:: 34.54 Nom Operating Power:: 4 Product Range:: T92 Series Relay Mounting:: Panel Relay Terminals:: Quick Connect Relay Type:: Power - General Purpose SVHC:: To Be Advised
