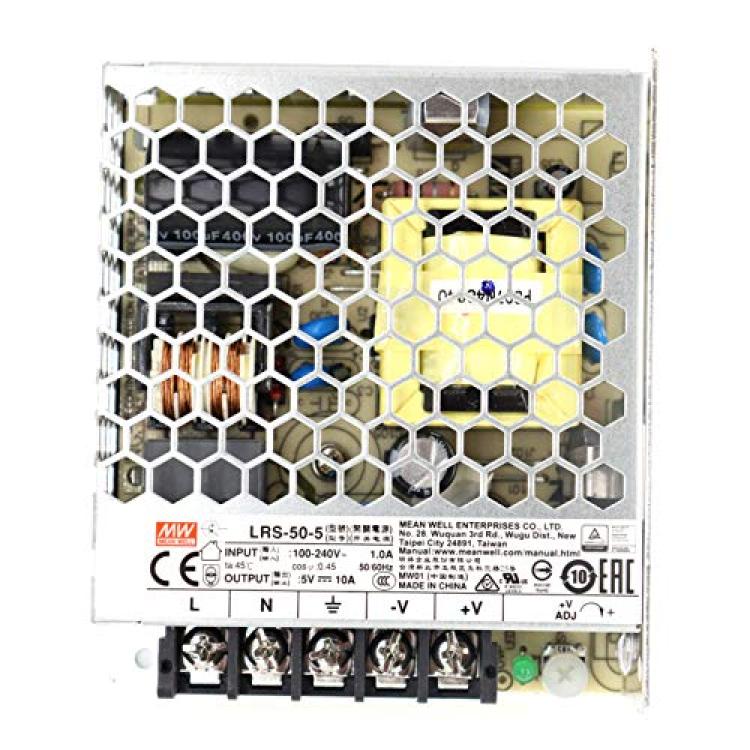

MEAN WELL LRS-50-5 50W 5VDC 10A Single Ouput Switching Mode Power Supply (LRS Series Full Range Input 50W smps)

This LRS-50-5 AC to DC power supply from MEAN WELL safely converts alternating currents into direct currents that your electronic devices can make use of.
It has a voltage of 5 V and maximum output power of 50 W.
This part's single output can handle a current up to 10 A.
This part has a minimum operating temperature of -30 °C and a maximum of 70 °C.
EU RoHS: Compliant
ECCN (US): EAR99
Mounting: Screw
PCB changed: 5
Package Height: 30
Package Width: 82
Package Length: 99
Type: Switching
Style: Enclosed
Input/Output Type: AC/DC
Number of Outputs: 1
Output Type: Fixed
Output Voltage (V): 5
Output Current (A): 10
Output Power (W): 50
Minimum AC Input Voltage (V): 85
Maximum AC Input Voltage (V): 264
Minimum DC Input Voltage (V): 120
Maximum DC Input Voltage (V): 373
Minimum Isolation Voltage: 4000VAC
Line Regulation: 0.5%
Load Regulation: 1%
Maximum Input Current (A): 0.95(Typ)
Input Frequency (Hz): 47 to 63
Tolerance (%): ±2
Efficiency (%): 83(Typ)
Configurable: No
Input Connector Type: Screw Terminal Block
Output Connector Type: Screw Terminal Block
Power Indicator: Yes
Ripple & Noise: 80mV(Max)
Medical: No
Minimum Operating Temperature (°C): -30
Maximum Operating Temperature (°C): 70
Product Weight (g): 230
Pin Count: 5
