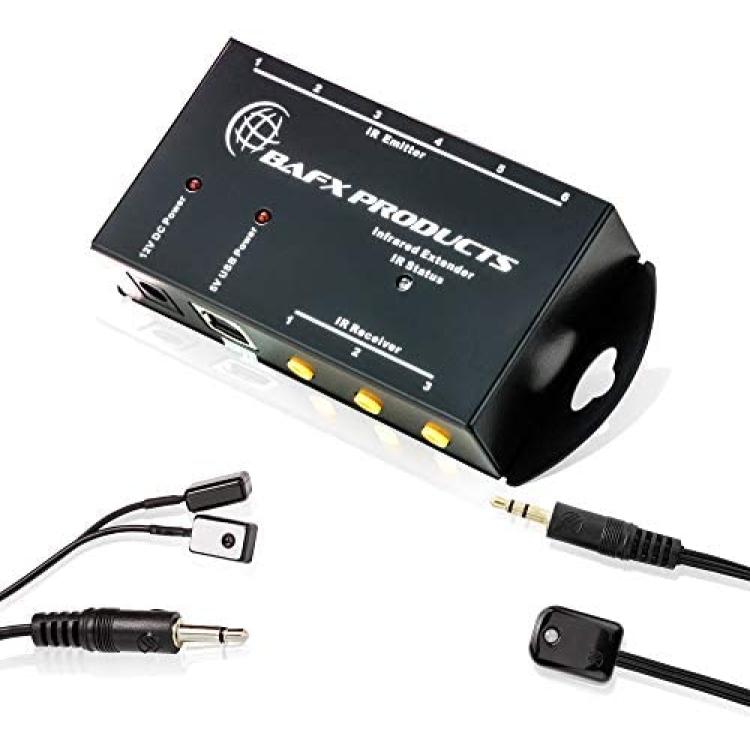

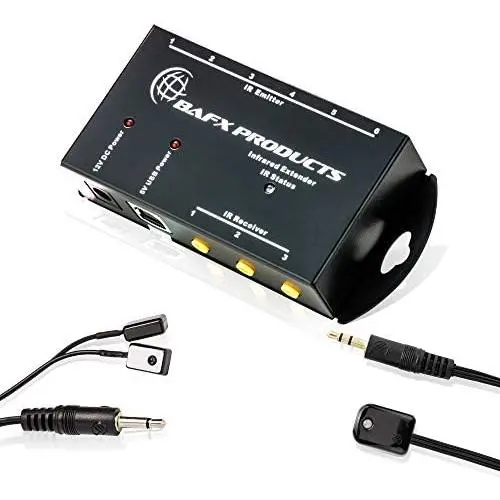

BAFX Products (Infrared) IR Remote Control Extender or IR Repeater Kit - Control 1 to 8 Devices (Expandable to 12!)
Availability: In Stock
About this product
*BUILD – Create the A/V setup of your dreams with the help of our Infrared repeater kit. Our kit allows you to place any IR controlled device out of sight of the remote control and still be able to control it. Put the cable box, DVD player & Roku in a closet hidden from view, close the door and STILL be able to use the remote control.
*IMPROVED! Now compatible with ALL IR controlled devices with better performance, no lag & better ease of use. Now also compatible with Marantz devices! Compatible with all brands of components such as: Uverse, ATT, Cisco, Scientific Atlanta, Yamaha, Sony, Logitech, Verizon, LG, Apple & more!
*WARRANTY & SUPPORT – BAFX Products offers a 1 Year Warranty against manufacturing defects with a simple & super easy claims process. Not to mention our friendly and knowledgeable USA based support who are ready to help answer your questions and assist in getting you setup!
*COMPACT – A smaller footprint than many other kits on the market allows the main block to placed just about anywhere along with a new and smaller IR receiver for a more discreet look. With the addition of mounting tabs on either side it can even be affixed to a wall, cabinet or ceiling!

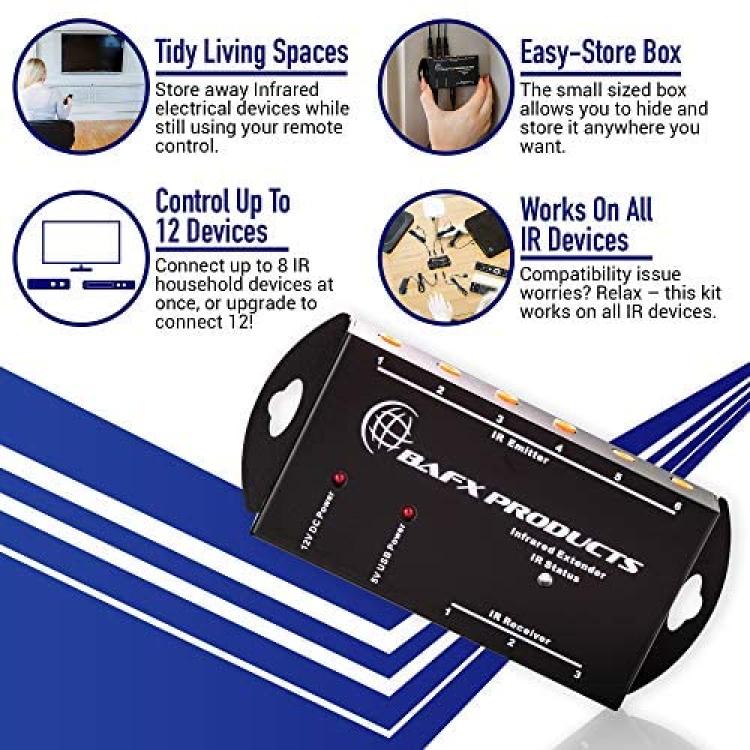

*CONTROL – With the provided components you can control up to 8 infrared devices (Expandable to 12 devices) from one location with the included IR Receiver (Expandable to 3 receivers). Extra Receivers and transmitters may be purchased separately.
Description
Now with greater dual band compatibility our kit will work with ALL IR controlled devices!
Want to place the cable box or other A/V devices out of sight yet be able to control them from in front of your TV? Our IR Repeater (aka remote control extender) kit allows you to do just that!

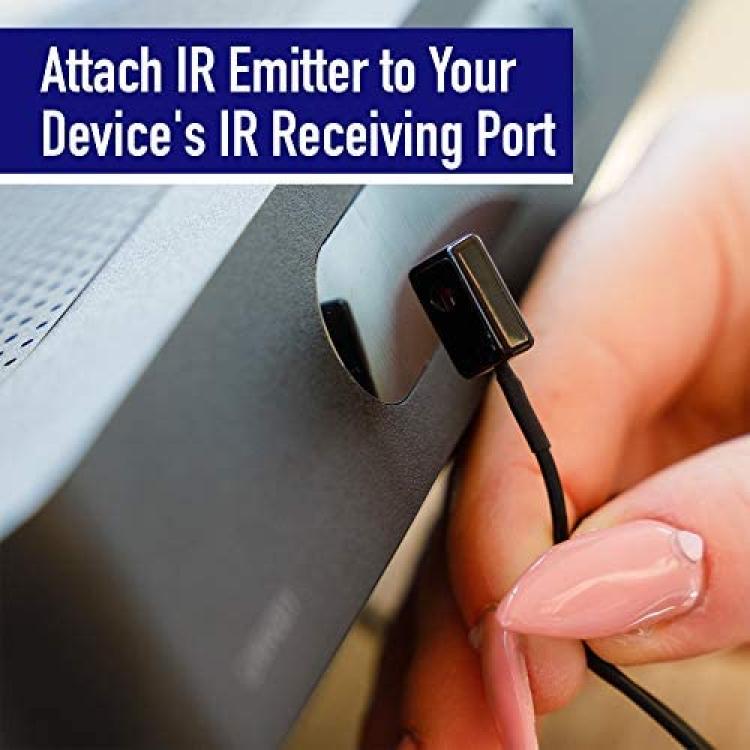

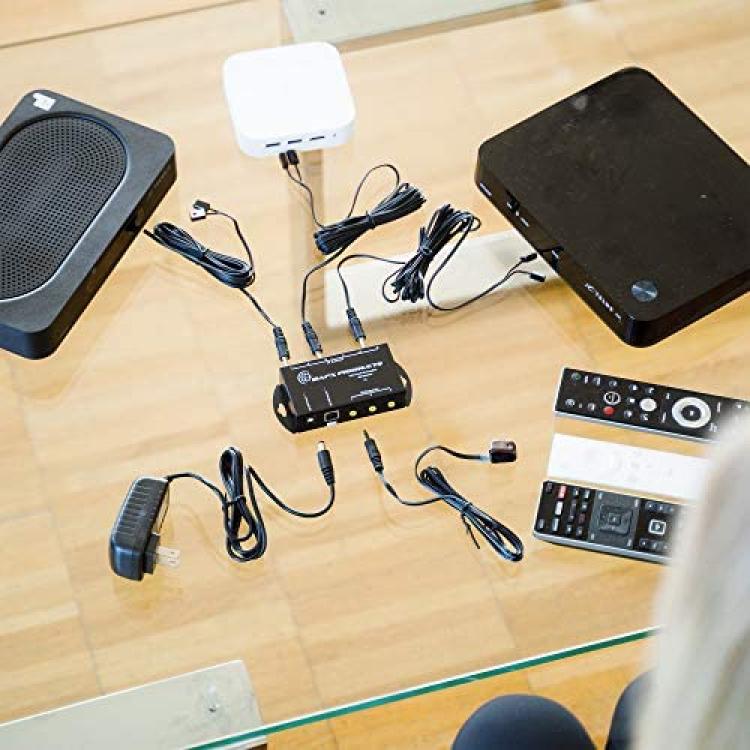

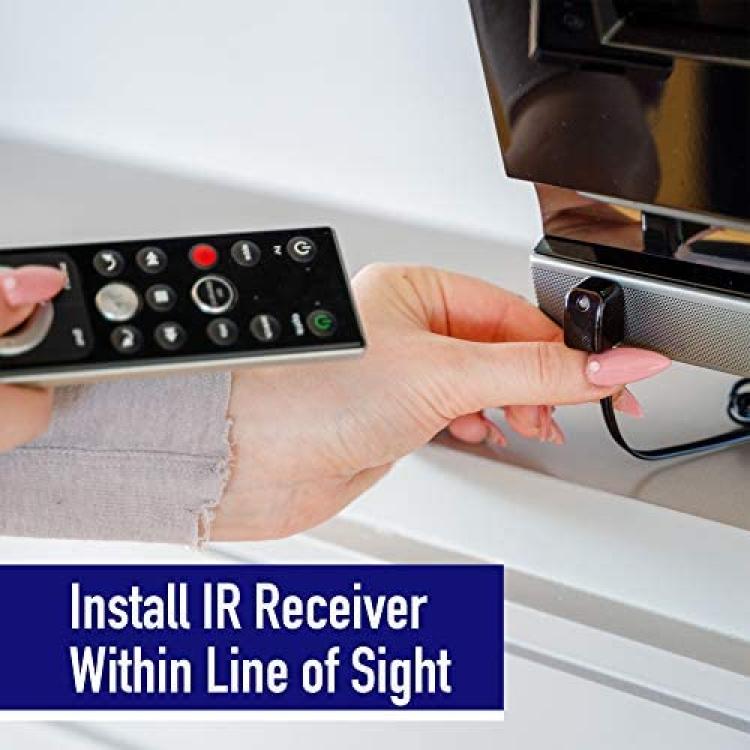

How it works: The kit will relay the IR signal, through wires, from where you are using the remote control to the end device. The IR receiver of the kit (eye) is placed within sight of (within 25’) of where you will use the remote control from. The emitter from the kit is placed over the IR receiver on the device being controlled & each receiver & emitter wire is plugged into the distribution block. Now, when pressing a button on the remote control, the signal will be amplified & sent through the system to your devices!

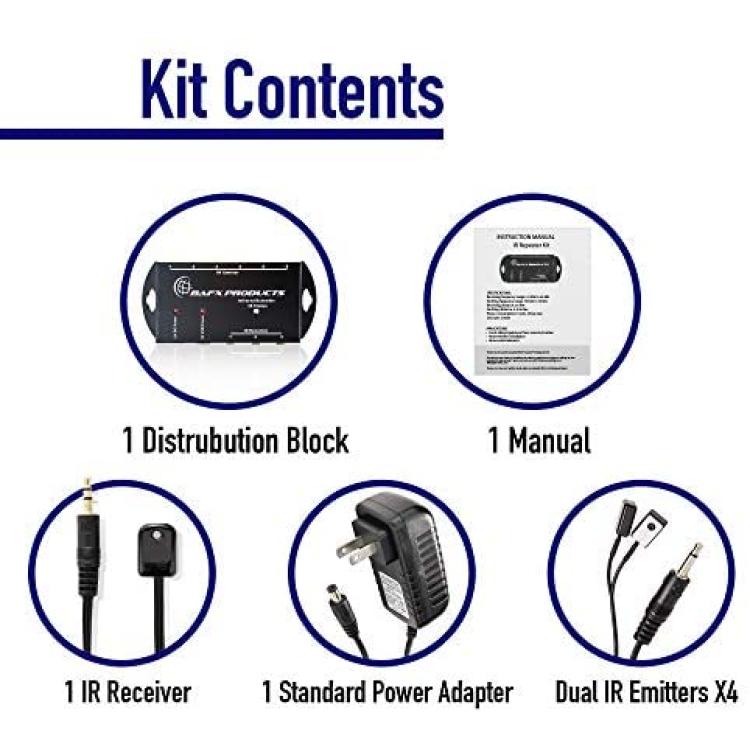

Kit includes:

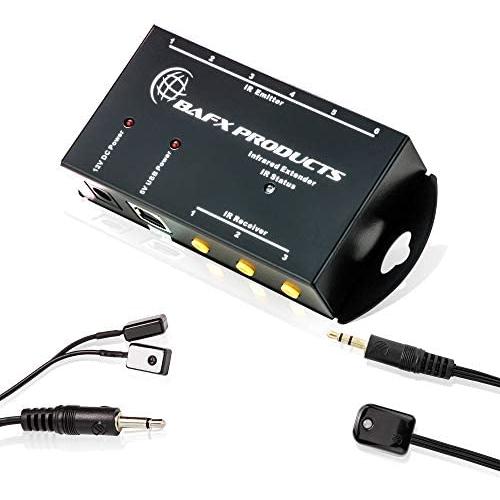

1 Distribution block
1 IR Receiver (5’ long tip to tip)
4 Dual head IR emitters for up to 8 devices (Cables are 8.5’ long)
1 Power adapter
Manual
Link to a setup video
1 Year Manufacturer Warranty
Specs
IR receiver cord is 5' long - receiving range up to 25’
Emitter cables are 8.5’ long – emitting range 2-4”
Receiver & emitters can be extended using a 3.5mm Stereo AV extension cable
Distribution block measures approx. 1.9"x4.3"x0.87" & has slots for mounting
Distribution block can be powered by a USB printer cable (NOT included)
Expandable to 3 IR receivers & 6 emitter cables
*IMPORTANT* PLASMA TV’S Plasma TV's emit infrared signals that can interfere with the IR receiver of the repeater (Not applicable to LCD or LED). This can be fixed by placing the IR receiver slightly further away from the plasma TV
Is your living room cluttered with random A/V devices everywhere because they must be within the line of sight of the remote control in order for you to use them?Â
Are you tired of having to leave the doors on your TV cabinet open every time you find yourself watching television?
Do you want to move your devices into another room, a closet or the basement but still be able to control them with your remote control?
Our IR repeater / remote control extender kit will help you resolve this problem at last. Using our repeater kit, you will be able to relay the remote controls IR signal to just about anywhere allowing you to place your cable box, DVD player, receiver, Roku & more hidden away from view but still be able to control them with your IR remote!
Your living room, media room or other TV viewing locations can now be clean, clutter free and looking just like a pro setup your system.
Why wait, get your kit now and complete the media room of your dreams!
Many people wonder if our kit is compatible with a particular device.
Our repeater kit will work with all IR controlled AV devices. This includes but is not limited to devices such as: Logitech, Uverse, Onkyo, Sony, Pioneer, Yamaha, Cisco, Scientific Atlanta, Marantz, Denon, LG, Philips, Verizon Fios, Roku, Charter, Dish Network, DirecTV, Epson & More!
Should you have any troubles getting the BAFX Products IR repeater kit to work with these or any other IR controlled devices the BAFX Products Support team will be more than happy to assist you!
Important note: The repeater kit will NOT work with RF or Bluetooth remote controls
Â
• 1 Distribution block
• 1 IR Receiver cable
• 4 Dual head IR emitters for up to 8 devices
• 1 Power adapter
• Manual
• Link to a setup video
Specs
• IR receiver cable is 5' long tip to tip
• Emitter cables are approximately 8.5' long
• Distribution block measures 1.9" x 4.3" x 0.87"
• Has slots on sides for mounting
• Expandable for more 2 more emitter cables & 2 more receivers
• Dual band compatibility
• Distribution block can be powered by USB printer cable & wall adapter (not included)
• Emitters & Receiver may be extended using standard STEREO headphone extension cables
Â
Plugging directly into IR ports on devices: On some devices you may notice IR in/out ports. You MAY be able to use a Male to Male cable to connect our kit with such devices. We cannot promise that this will always work. It will depend on whether the device manufacturer has wired their port the same was as our kit and also handles the signal in the same manner. We have verified that many Onkyo & Denon devices do work with this but cannot make promises as to this.
Plasma TV's: Plasma TV's emit stray infrared signals. In some rare cases these stray signals may interfere with operation of the kit. In such cases simply moving the IR receiver slightly further from the TV will resolve this issue. LED & LCD TVs do not have this problem.
Extending via CAT5 lines: For this we offer a prepackaged CAT5 adapter kit that may be purchased separately. The parts may also be obtained individually on their own as needed.
Now with greater dual band compatibility our kit will work with ALL IR controlled devices!
Want to place the cable box or other A/V devices out of sight yet be able to control them from in front of your TV? Our IR Repeater (aka remote control extender) kit allows you to do just that!
How it works: The kit will relay the IR signal, through wires, from where you are using the remote control to the end device. The IR receiver of the kit (eye) is placed within sight of (within 25’) of where you will use the remote control from. The emitter from the kit is placed over the IR receiver on the device being controlled & each receiver & emitter wire is plugged into the distribution block. Now, when pressing a button on the remote control, the signal will be amplified & sent through the system to your devices!
Kit includes:
1 Distribution block
1 IR Receiver (5’ long tip to tip)
4 Dual head IR emitters for up to 8 devices (Cables are 8.5’ long)
1 Power adapter
Manual
Link to a setup video
1 Year Manufacturer Warranty
Specs
IR receiver cord is 5' long - receiving range up to 25’
Emitter cables are 8.5’ long – emitting range 2-4”
Receiver & emitters can be extended using a 3.5mm Stereo AV extension cable
Distribution block measures approx. 1.9"x4.3"x0.87" & has slots for mounting
Distribution block can be powered by a USB printer cable (NOT included)
Expandable to 3 IR receivers & 6 emitter cables
*IMPORTANT* PLASMA TV’S Plasma TV's emit infrared signals that can interfere with the IR receiver of the repeater (Not applicable to LCD or LED). This can be fixed by placing the IR receiver slightly further away from the plasma TV
