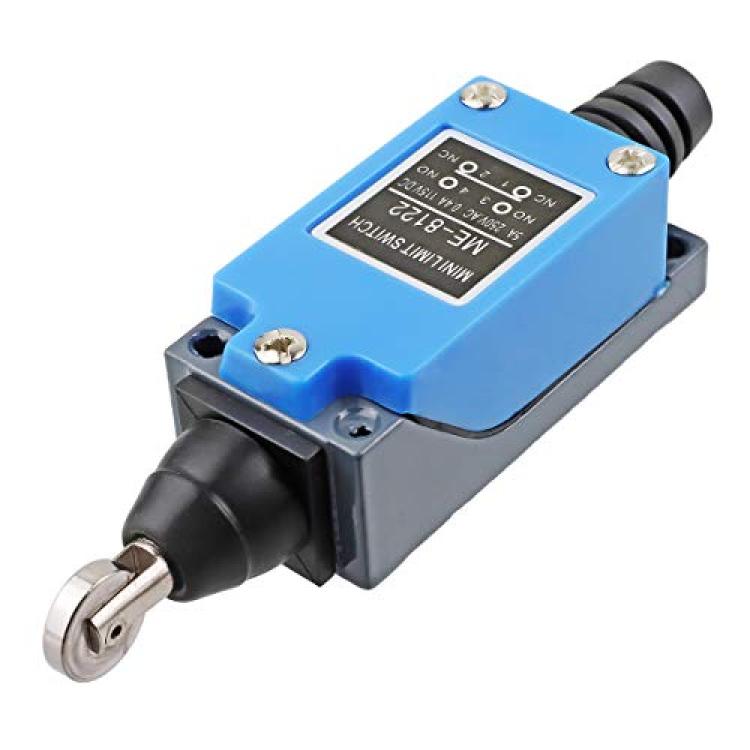

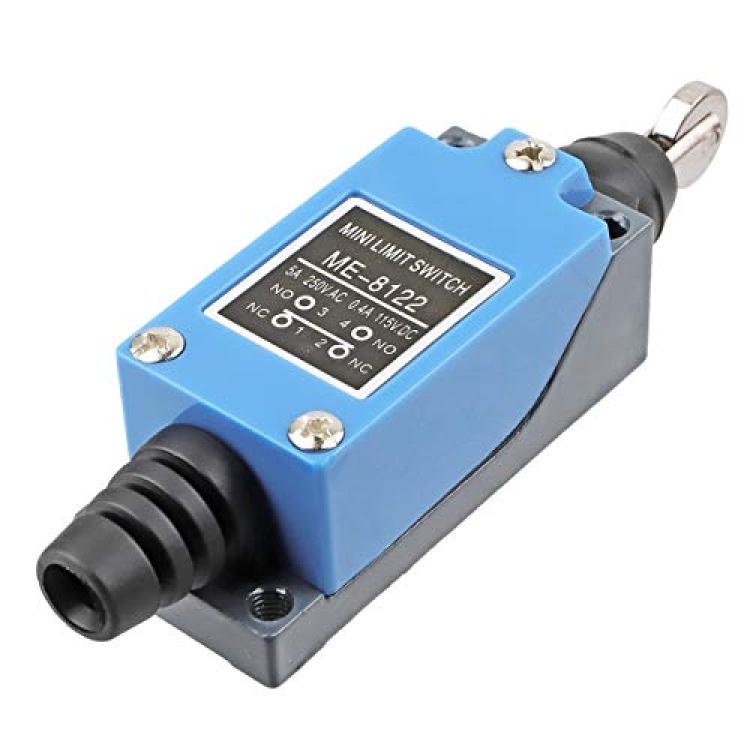

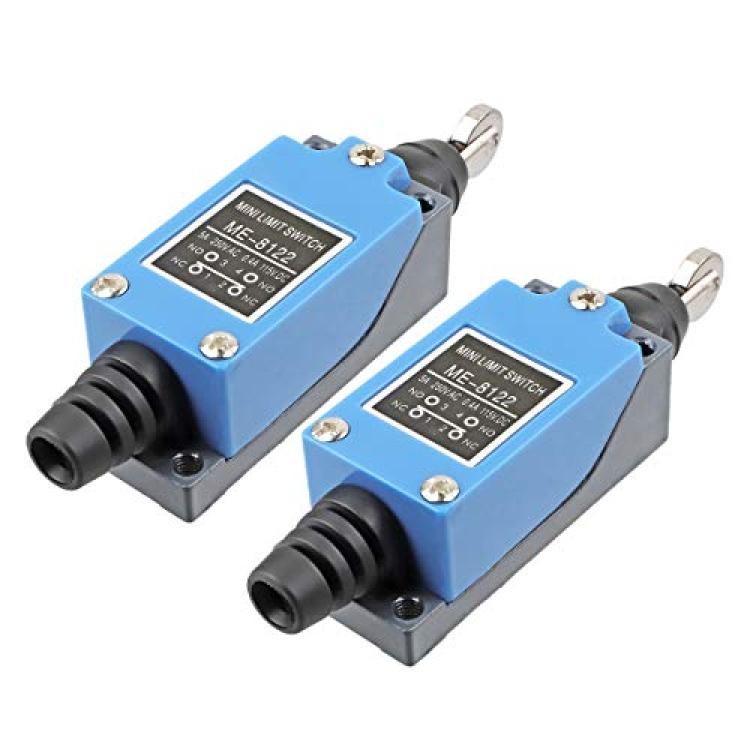

Electrical Buddy Cat Whisker Flexible Coil Spring Momentary ME8122 Limit Switch 1NC 1NO 2PCS
Availability: Pre-Order, Inquiry Price
About this product
*Model: ME-8112 ; Cross Roller Plunger Type
*High quality built-in basic switch with good electrical conductivity
*Able to withstand some washdowns, shock and vibration
*Easy-to-wire, smooth operation and reliable
*This Limit Switch can help for industrial automation equipment
Description
Specification:
Product Name: Limit Switch
Model: ME-8122
Actuator Type: Cross Roller Plunger Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2" x 0.83" (L*W)
The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.
Operating Characteristics:
OF max.: 1100g (10.78N)
RF min.: 250g (2.45N)
PT max.: 2mm
OT min.: 0.6mm
MD max.: 1mm
OP: 37+/-0.8mm
Description:
Double circuit limit switch with build-in double reed mechanism.
Zine alloy and intensive plastic shell, strong and hightly rigid construction.
Smooth operation with highter OT.
Brass contacts with 30% silver contained. Easy-to-wire design.
This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
