QTEATAK 5Pcs On/Off Boat Rocker Switch 5Pcs 2 Pin Position Snap 12V 110V 250V with 10Pcs Terminals
Availability: Pre-Order, Inquiry Price
About this product

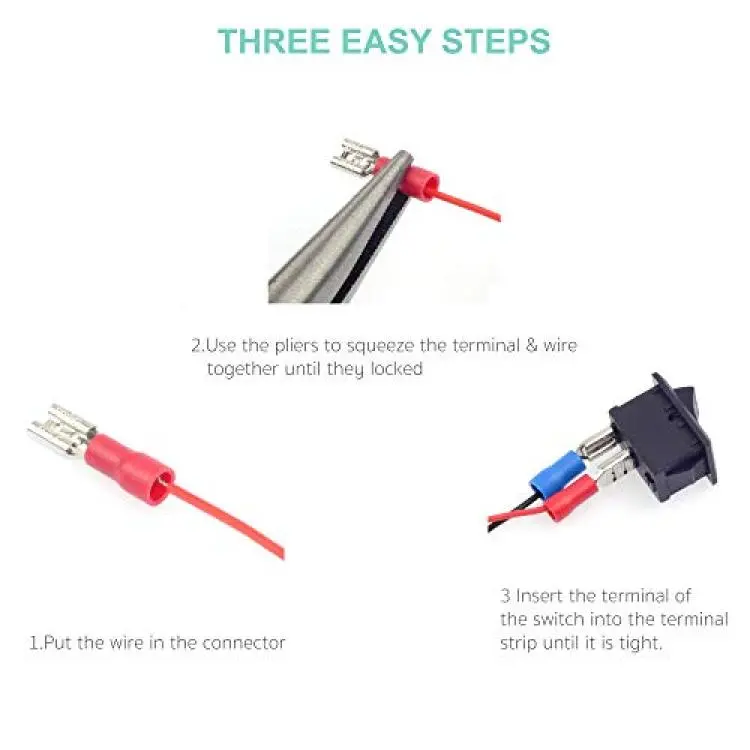

*1.【Easy Installation Auto】Equipped with buckle, easy to install in all kinds of electrical engineering, as long as you have a 13mm*19mm hole.Use the attached terminal for wiring, convenient and safe.
*2.【10000 Times ON-OFF Operating Life】Made of high quality polyamide eP(Nylon PA66) , this sturdy mini boat rocker switch is born for anti-corrosion,anti-acid and high resistant with silver terminals.
*3.【Common Type】5Pcs SPST, ON-OFF, 2 Pins；
*4.【Voltage】AC 125-250V ; Current: 6-10A.

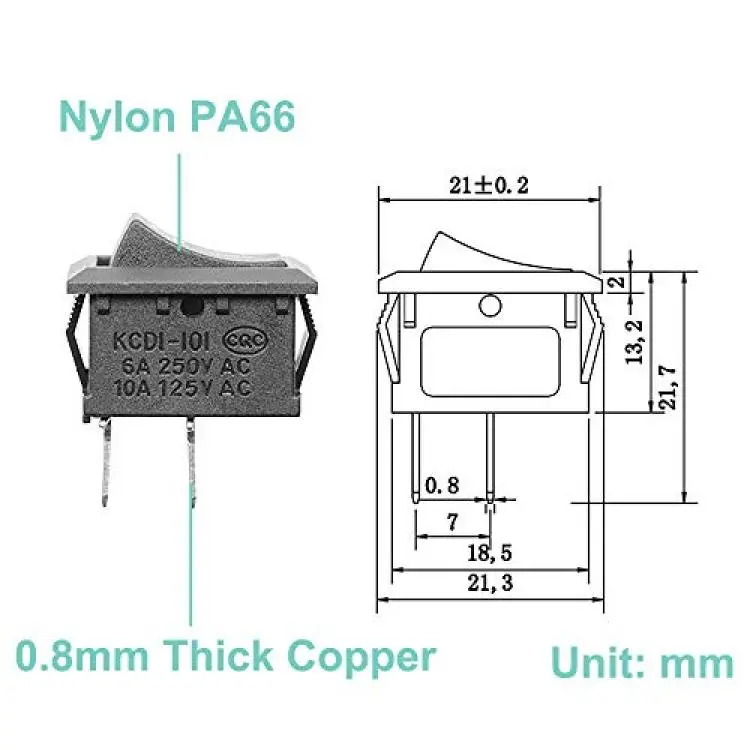

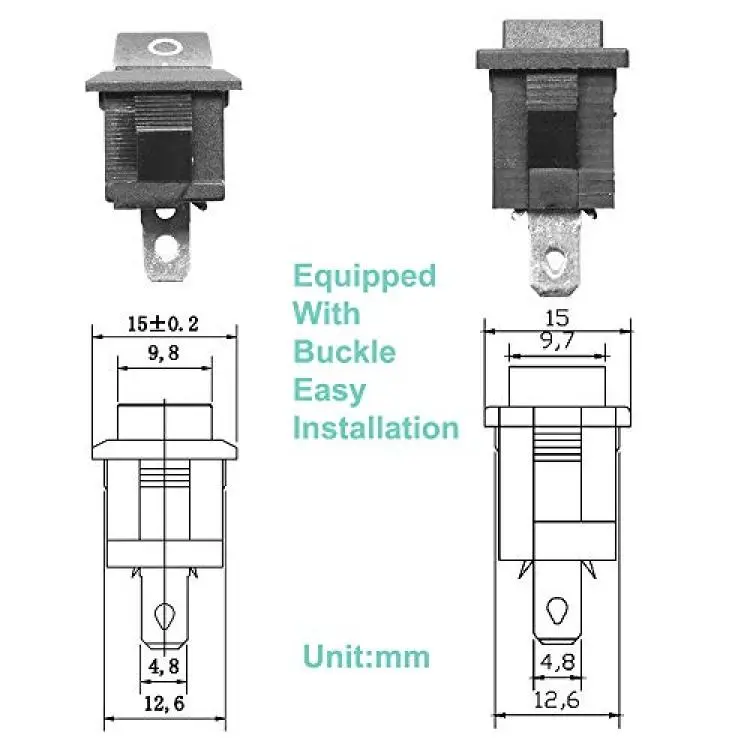

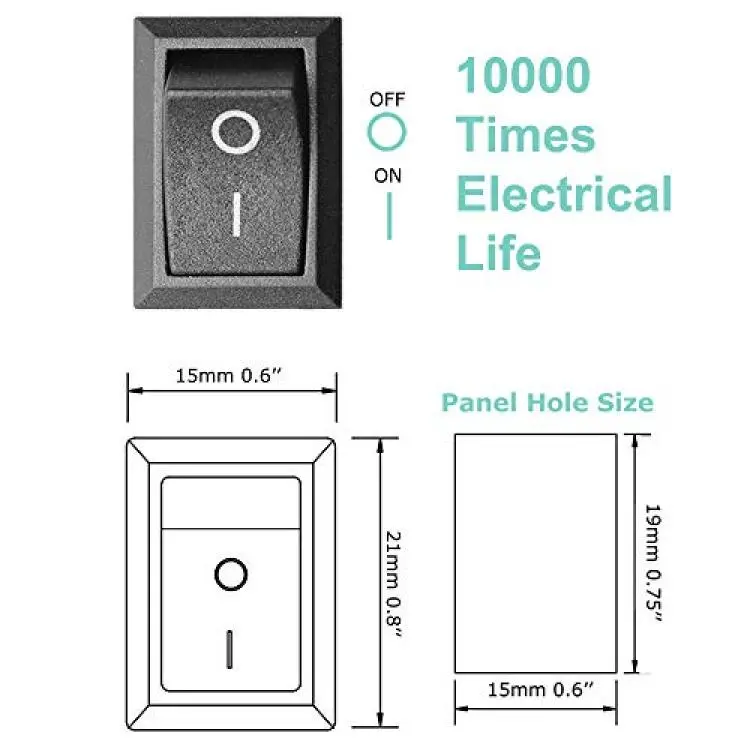

*5.【Rocker Switch Size】Size(Each One): 21 x 15 x 25mm/ 0.8" x 0.6" x 1.1"(L*W*T) Mounting Size: 18 x 12 mm/ 0.7" x 0.5" (L*W*T)
Description
We fully understand your urging demand for solving your problem.
QTEATAK has established for 14 years.
As a responsible company, we put production quality in the priority list and commit to perfect every detail.
We choose materials of the best quality and obey technical standards including ISO9001:2008/CE/SGS/Rohs strictly.
We try to make that each product for you is the best. We provide 12 months warranty service for all of the products
Features
Mainly used in water dispenser, treadmill, speaker, battery car, motorcycle, TV, coffee pot, row plug, massage machine, etc.
SPST on-off control and 2 terminals
Color: Black
Material: Plastic+Copper
Performance parameters
Electrical Ratings 10A @ 125VAC?6A @ 250VAC
Electrical Life 10,000 cycles typical
Contact Resistance < 50 m? initial
Dielectric Strength 1500Vrms min
Insulation Resistance > 100M? min
Operating Temperature -25°C to 85°C
Storage Temperature -25°C to 85°C

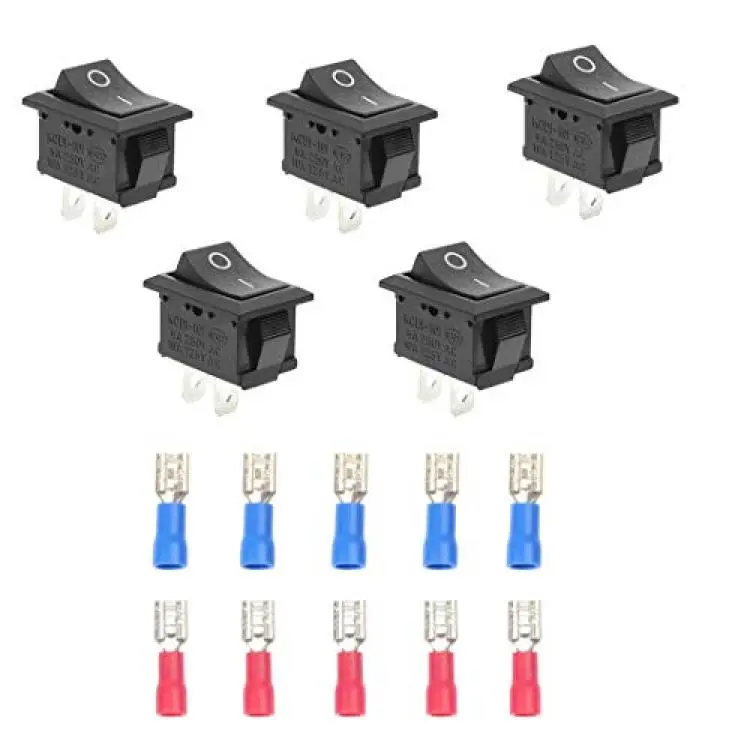

Package Include

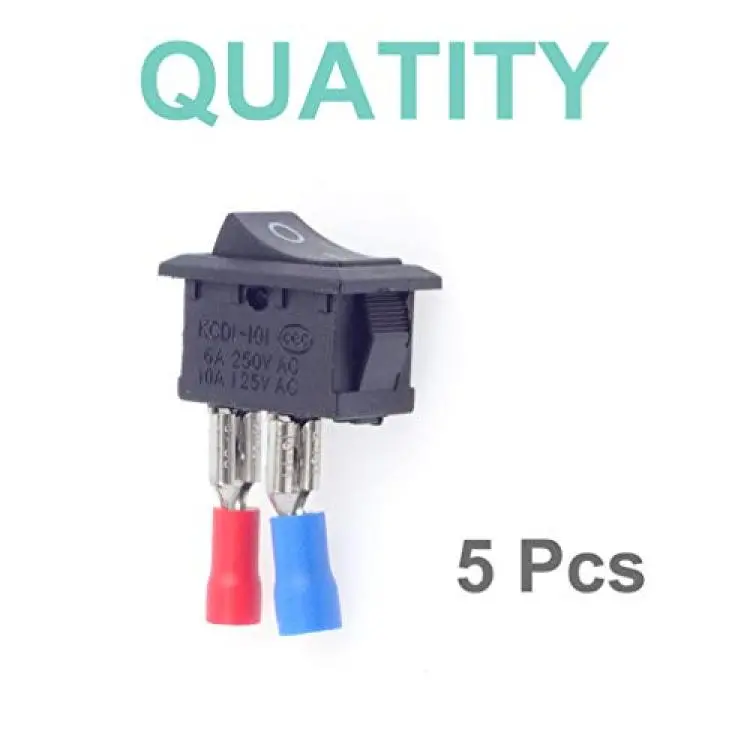

5 × AC 6A/250V 10A/125V 2 Pin On-Off Switches
5 × Red Terminals
5 × Blue Terminals
