KNACRO 16mm Chassis Switch Metal Button Switch with 100CM 3.3FT Extension Cable Green Ring LED Suitable for DIY Computer Switch and Restart Button(Ring, Green)
About this product

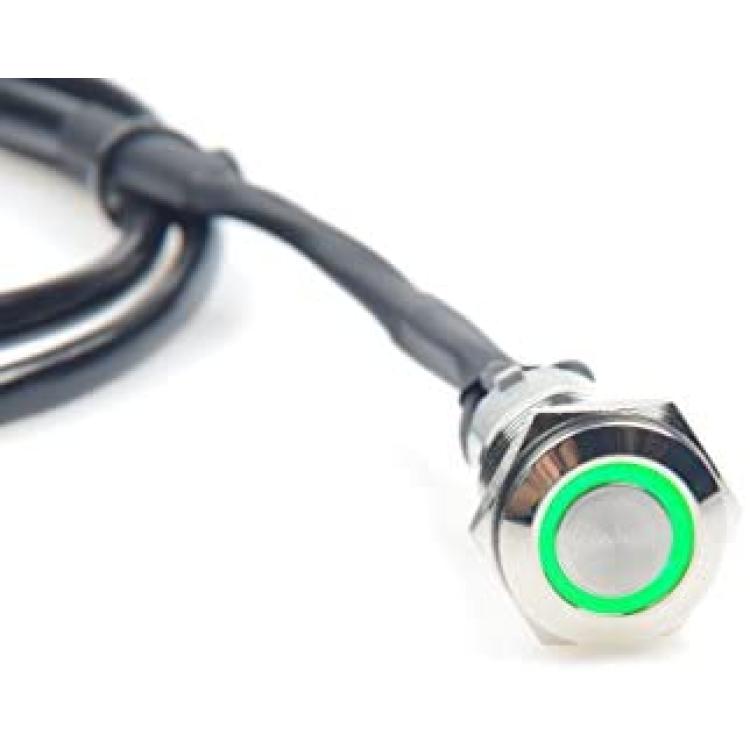

*This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated Green LED Ring .
*It is a SPDT with 16mm threading and 1mm pitch. This button is perfect for basic On/Off functions with cable length 1M / 3.3ft
*These latched buttons are rated up to 5A and 250V AC while the LED is rated for 3-6V.
*Momentary switch: Push & Hold,ON; Release,OFF
*Works well with the pc and any device that requires a momentary 12V pulse to initiate on/off functions
Description
Specifications:
Head diameter: 19mm/0.75in
Button diameter:12mm /0.47in
Mounting hole size: 16mm /0.63in
Switch combination: 1NO1NC
Operation types: Latching
Switch rating: 5A/250VAC, 5A/30VDC
LED rating: 15mA, DC 3-6V
LED color : Green
Head shape : High flush
Enclosure material : Stainless steel
Protection level: IP67,IK10
Note:
These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged in the water.
The project and application you are going to be used for,don't let current go above 5 amps.Or the switch will get warm and to be burned out.
If you have any question , please feel free to contact us.
