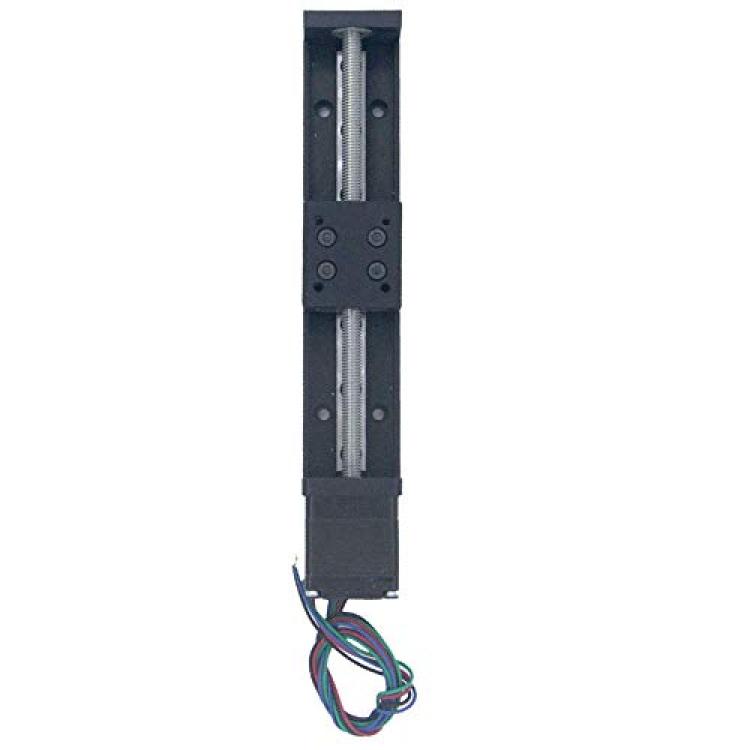

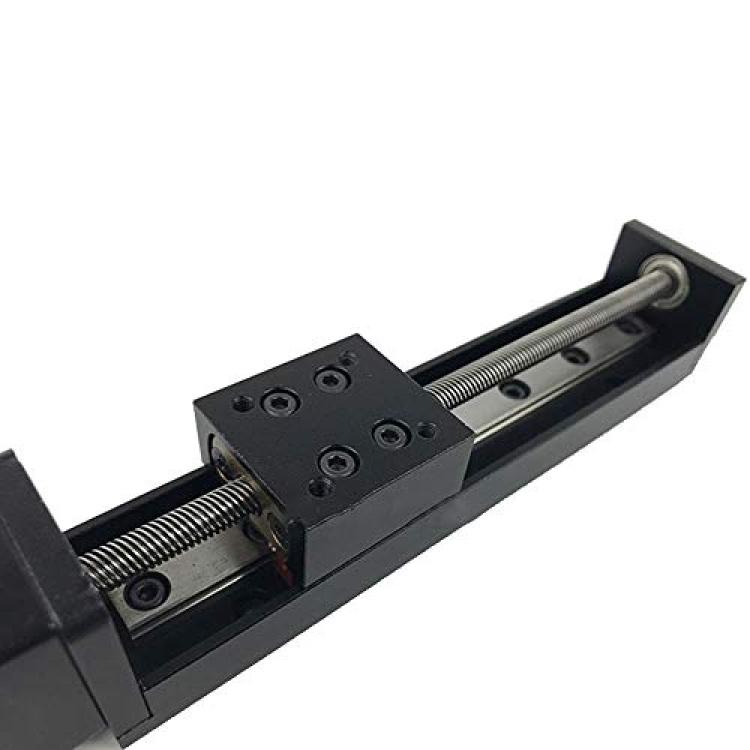

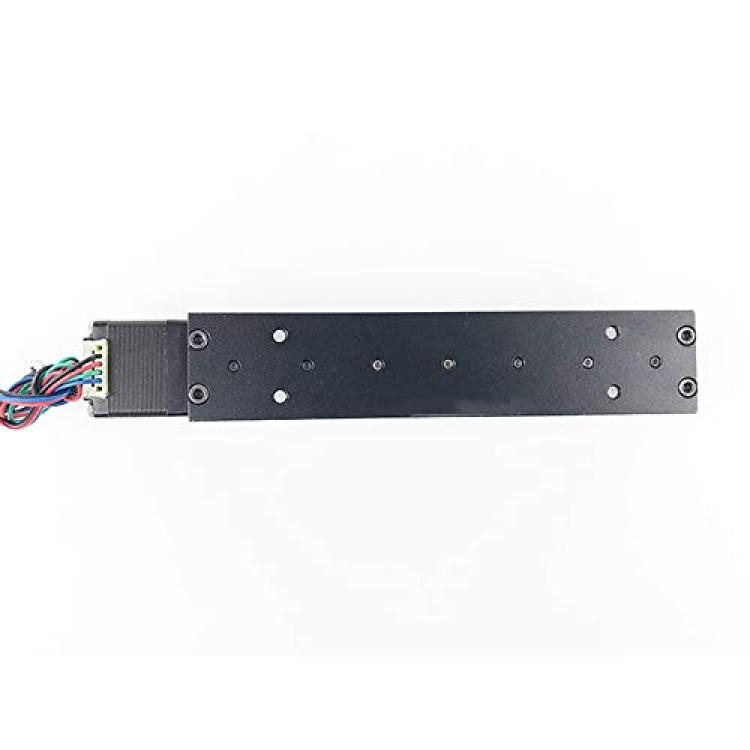

CNC Sliding Table Lead Screw Precision Travel Length 50mm/100mm/150mm/200mm NEMA11 Linear Stepper Motor Guide Slide T-Shaped Screw line Rail Electric (24V,1.8°） (100mm)

About this product

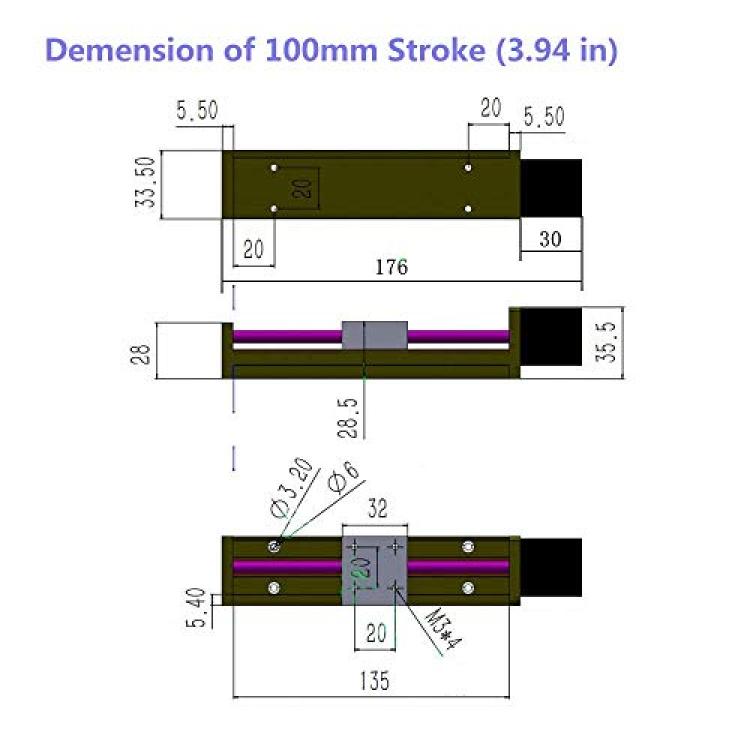

*【The meaning of T6 * 1-100mm】: T6 represents the diameter of the screw 6mm. * 1 represents the lead (pitch) of the screw 1mm (the distance that the motor moves once the slider moves). 100mm is the effective stroke of the slide table ( The distance the slider can move does not include the length of the slider)

*【Specification】Stroke: 100MM；Screw diameter：6mm; Screw pitch: 1mm; Screw precision: 0.1mm; Maximum load level: 3KG; Vertical maximum load: 1KG; Torque: 0.07NM; Motor voltage: DC 24V; Motor current: 0.6A; Step angle: 1.8 degrees; Max speed: 120mm/min;

*【Folding method】: horizontal cross, gantry type, three-axis type, four-axis type, multiple stacking methods can be stacked

*【Provide】:We also have Screw specification T6*2 , T6*4 , T6*6 , T6*12.if you need it,please contact us.

*【Note】:Make sure you have the drive and controller, no drive and controller stepper motor will not work.Please contact us if you need it.
