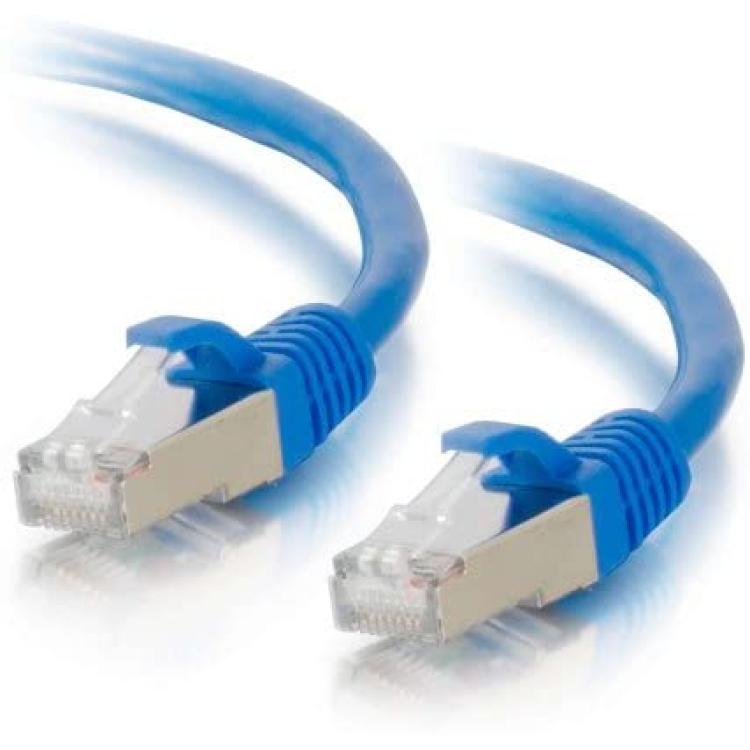

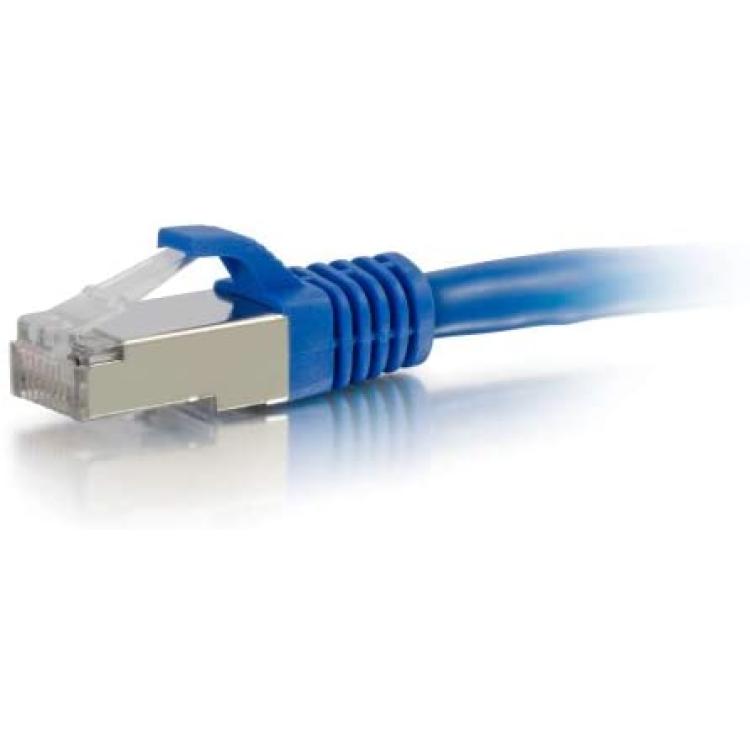

C2G 00672 Cat6a Cable - Snagless Shielded Ethernet Network Patch Cable, Blue (1 Foot, 0.30 Meters)

Protect a high speed 10 Gigabit network from noise and electromagnetic interference when connecting with our Snagless Shielded Cat6a patch cable. For voice/data/video distribution, this cable will handle bandwidth-intensive applications and drastically reduces both impedance and structural return loss (SRL). Each patch cable is fully tested to meet ANSI/TIA 568 C.2 Cat6a component requirements. Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality cable and plugs, this design minimizes Near-End Crosstalk (NEXT) levels. Available in a variety of colors to easily color-code a network installation. Individual length label on each cable for ease of use. Physical Characteristics: Cable type: Stranded SSTP, Wiring scheme: 568B,Temperature rating: 75DegreeC,Testing: ANSI/TIA 568 C.2 Cat6a component tested. Conductor (4 pair) - Conductor type: 26AWG (7/0.16) (bare copper), Insulation: FM-PE. Overall cable - Foil shield: Aluminum foil (100% coverage), Braided shield: Copper braid (40% coverage), Jacket: PVC. Connector - Connector Type: RJ-45 Male Shell: Nickel plated for shielding Housing: Polycarbonate, UL94V-0, Contacts: 50m gold plated, Hood: Molded Snagless PVC UL94V-0
