DAE VM-100P 1” Positive Displacement Water Meter with Pulse Output, Measuring in Gallon + Couplings
Availability: Pre-Order, Inquiry Price
About this product
*Can be installed in any position, vertically or horizontally, dial facing upwards or downwards or side-way, water flowing downwards or upwards. Can detect very small flow. With internal non-return valve.

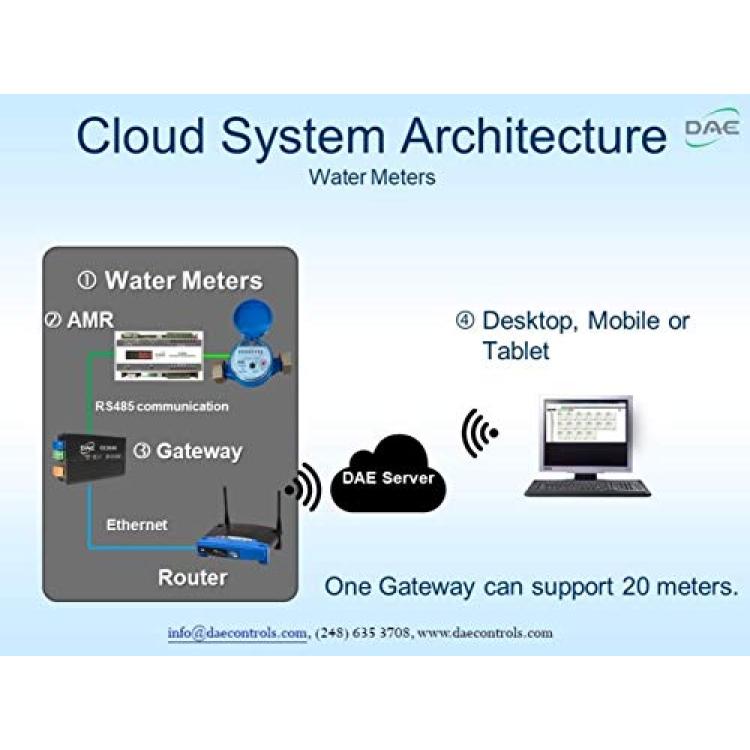

*Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130 (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.

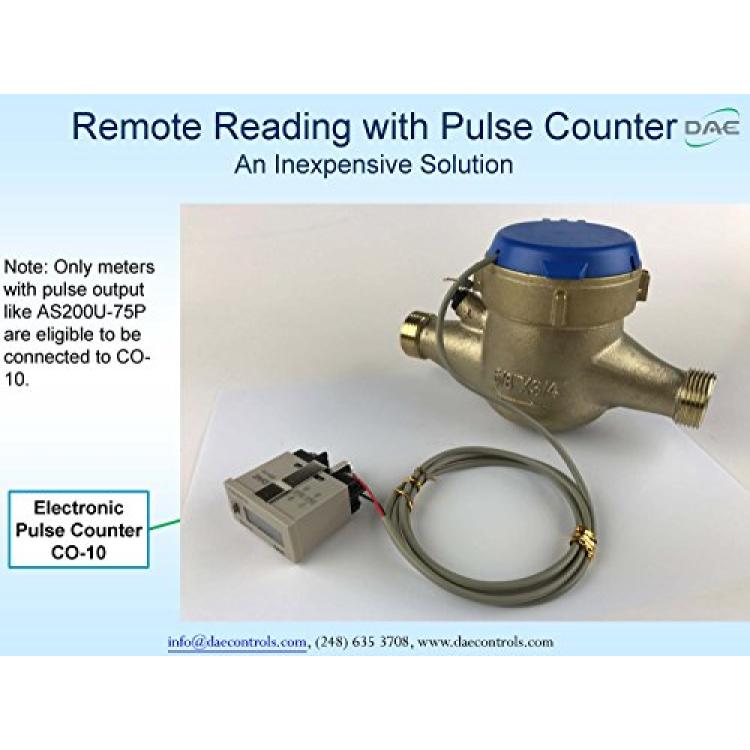

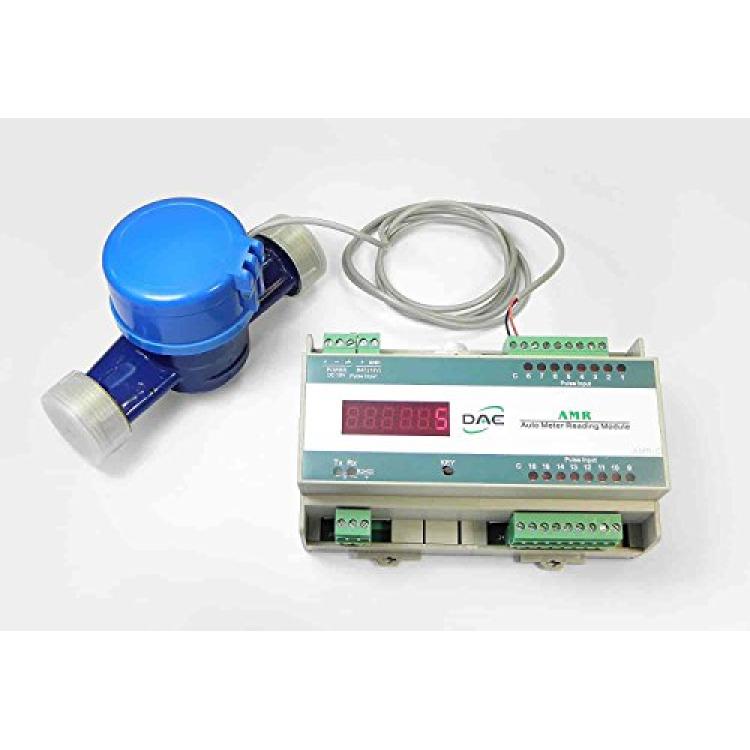

*Ready for use with CO-10 (Electronic Pulse Counter, www.amazon.com/dp/B071XDGWF9) or CO-10 KIT (www.amazon.com/dp/B07TYT92LL) - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (www.amazon.com/dp/B01DCDH90U ,Auto Meter Reading Module for single water meter) and AMR (www.amazon.com/dp/B01DBB8CQ8 , for 16 water meters) for remote reading (5th picture).

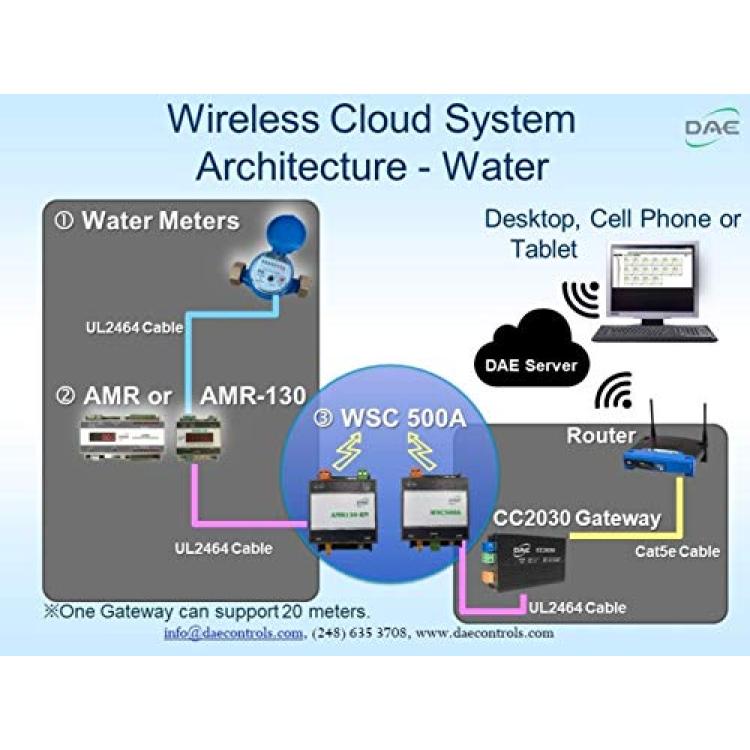

*Wireless remote reading available (3rd picture) with DAE WSC500 RF converters (www.amazon.com/dp/B07DGYTC3V). Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. If you are interested in cloud metering or wireless water management or looking for a large quantity, please contact us.
*Can be installed in any position, vertically or horizontally, dial facing upwards or downwards or side-way, water flowing downwards or upwards. Can detect very small flow. With internal non-return valve.
Description

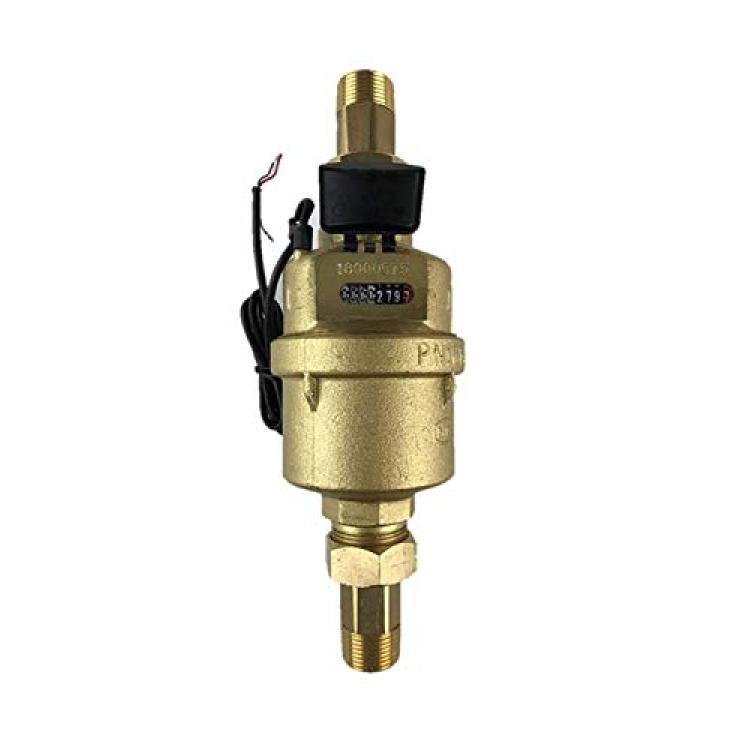

1” Positive Displacement Water Meter with Pulse Output, Measuring in Gallon, 1” NPT Couplings.
Model: DAE VM-100P
Certified by independent test lab to exceed AWWA national accuracy standards +/-1.5% within normal flow rate range.
Can detect very small flow.
Conforms to both AWWA C700 and ISO 4064 Class C.
Unit: Totalizer Measuring in Gallon , for clean water only.
Pulse Output: 1 pulse per 1 gallon, a dry contact (i.e. no voltage) reed switch with 2 wires, 1.5m. The switch may be damaged if input electricity is more than 0.01A, 24V.
Meter body: Bronze
Couplings Included
Length without couplings: 8.5 inches, Length with couplings: 12.5 inches.
Item dimension: 8.5" length, 4.1" diameter. weight: 5 lb, 3 once.

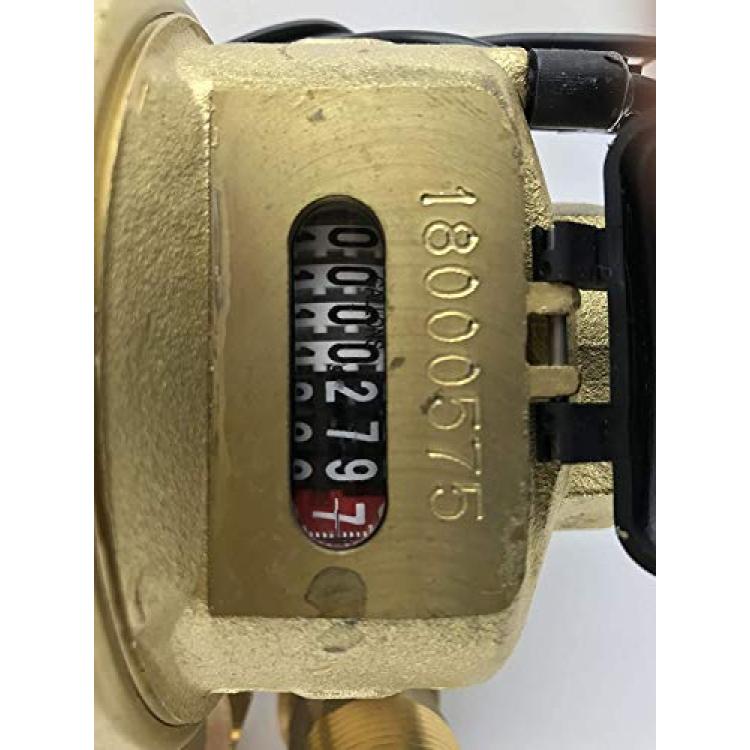

Maximum Reading: 9,999,999.99 Gallons. Min. Reading: 0.01 Gallons. The last digit is one tenth gallons (*0.1 gallons). The reading in 2nd picture of the listing is 279.70 gallons.
Max water temperature: 122?F (50?C)
Safe Maximum Flow Rate: 50 GPM (11.4 m³/h), Maximum Continuous Flow Rate: 25 GPM (5.7 m³/h), Minimum Flow Rate: 3/4 GPM (0.17 m³/h), Normal Test Flow Limits: 3-50 GPM
Pressure Drop: 0.25 psi @ 5 GPM, 1.26 psi @ 15 GPM, 5.73 psi @ 25 GPM
The DAE meters have been tested by our QC inspectors in the production line to certify their quality. Therefore the reading will not be zero.
The max. working pressure is 232 psi, exceeding the requirement from AWWA standard 150 psi.
2 year warranty from the seller.
For the buyers outside of USA, in addition to the tax, the carriers may charge brokerage fee.
