Digital Torque Wrenches Adapter, Electronic Digital Display Adjustable Torque Meter Wrench Socket Tool Steel Torsion Measuring Meter Tester(BDA4-340)
Availability: Pre-Order, Inquiry Price
About this product

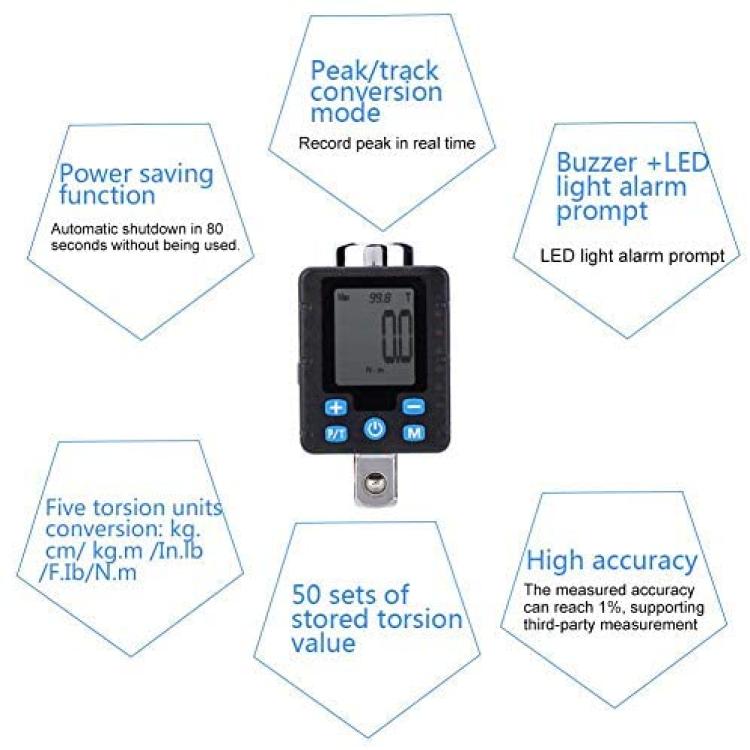

*Used with a common ratchet wrench as a digital torsion wrench with the same function as a digital torsion wrench.
*With power saving function,it will automatically shutdown after 80 seconds without being used.
*This product is fully functional, compact and easy to carry, cost-effective, widely used in machinery, aviation, railway, maintenance, testing and other fields.
*Buzzer and LED light alarm prompt,and the measuring accuracy up to 1%, supports third-party metering.
*Peak/tracking conversion mode, real-time display, record peak,50 torsion can be reserved maximum.
Description
Specification:
Item Type:Torsion Adapter
Material:Tool Steel
Surface Treatment:Polishing and Chrome Plating
Model:BDA2-030,BDA3-135,BDA4-200,BDA4-340(Optional)
Accuracy:+-2%
Memory:50 Sets
Operating Mode: Peak / Patrol
Unit Options: Kg /m, Kg / cm, Inches / Pounds, Feet / Pounds, N / m
Battery: 2 x AAA Battery(Not Included)
Operating Temperature: -10~60?
Storage Temperature: -20~60?
Relative Humidity: 15-90%
Auto Power Off: 80 Seconds

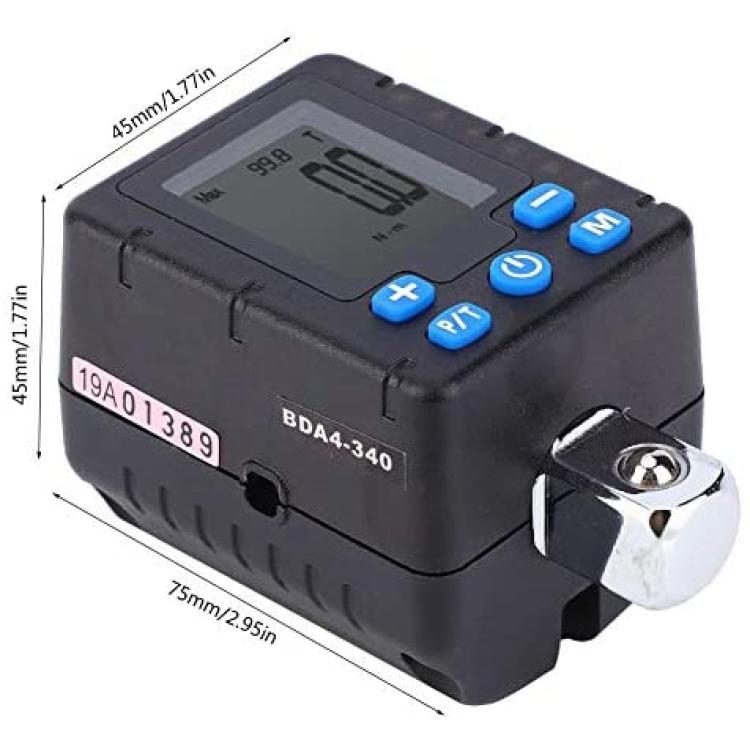

Size: 75 x 45 x 45mm / 2.95 x 1.77 x 1.77in Â
Type: BDA2-030, BDA3-135, BDA4-200, BDA4-340
Resolution: 0.01, 0.1, 0.1, 0.1
Display Range: 0.3~30N.m, 1.35~135N.m, 2~200N.m, 3.4~340N.m
Alarm Range: 1.5~30N.m, 6.8~135N.m, 10~200N.m, 17~340N.m
Accuracy Ensurance Range: 6~30N.m, 27~135N.m, 40~200N.m, 68~340N.m
Driver Tip: 1/4in DR, 3/8in DR, 1/2in DR,3/4in DR
Applicable Wrench/Socket: 19mm for 3/4 Wrench and Socket, 12.5mm for 1/2 Wrench and Socket, 10mm for 3/8 Wrench and Socket, 6.3mm for 1/4 Wrench and Socket
Package List:
1 x Torsion Adapter
1 x Users Manual
1 x Report
