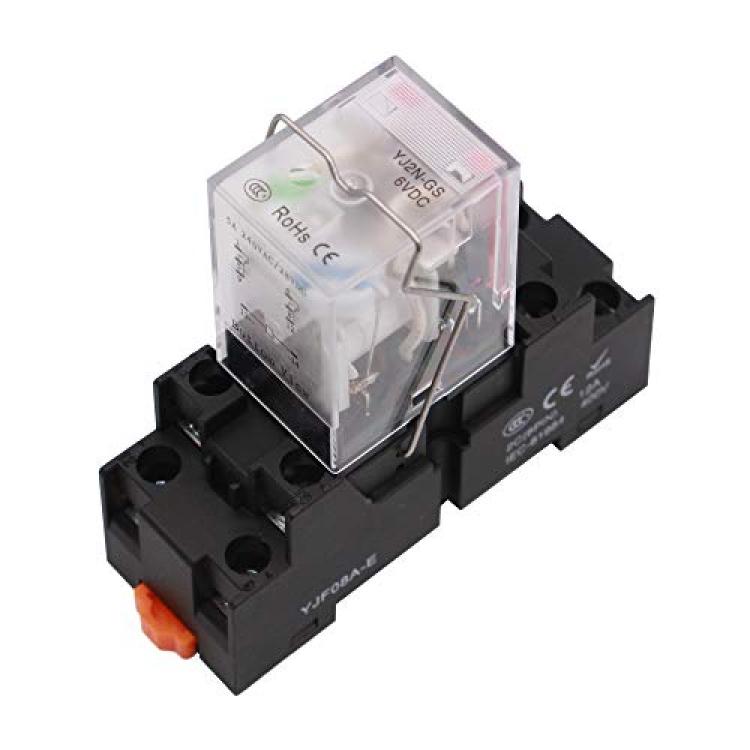

Electromagnetic Power Relay, 8-Pin 5 AMP 12V DC Relay Coil with Socket Base, LED Indicator, DPDT 2NO 2NC - MY2NJ [Applicable for DIN Rail System]

About this product

*Electromagnetic relays are widely used: household air conditioner compressor motors, fan motors, cooling pump motors, starter relays for car starters, spur relays, motors, generator circuit breakers, industrial relays, etc.

*Product Name: Electromagnetic Power Relay; Model: YJ2N-LY Type: DPDT; number of terminals: 8

*Coil voltage: 12VDC; Contact capacity: 5A 240VAC / 28VDC

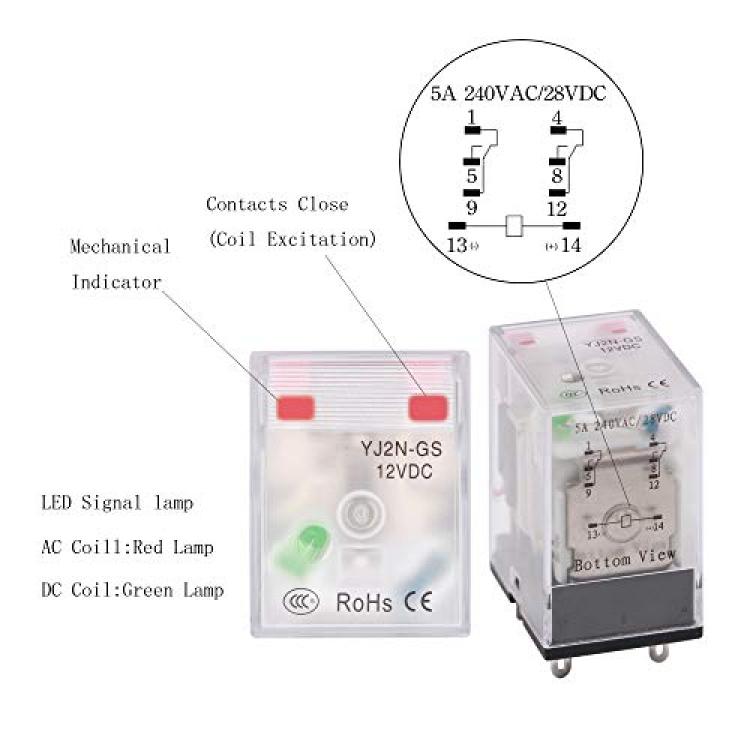

*Red mechanical indicatoe:It can intuitively judge whether the relay is attracted.

*LED signal lamp : It can judge the AC or DC coil, and judge whether the coil is energized.
