SONCOZ LA-QXD1 HiFi Audio Digital to Analogue Converter USB DAC Balanced ES9038Q2M 32bit/768kHz PCM/DSD512 XMOS with XLR/USB/Opt/Coax Input Silver
About this product
*LOW COST OPTION for BALANCED OUTPUT: You get XLR output with superbly low noise and distortion for a really budget price. Digital HIFI Decoder for home audio, office, or desktop use

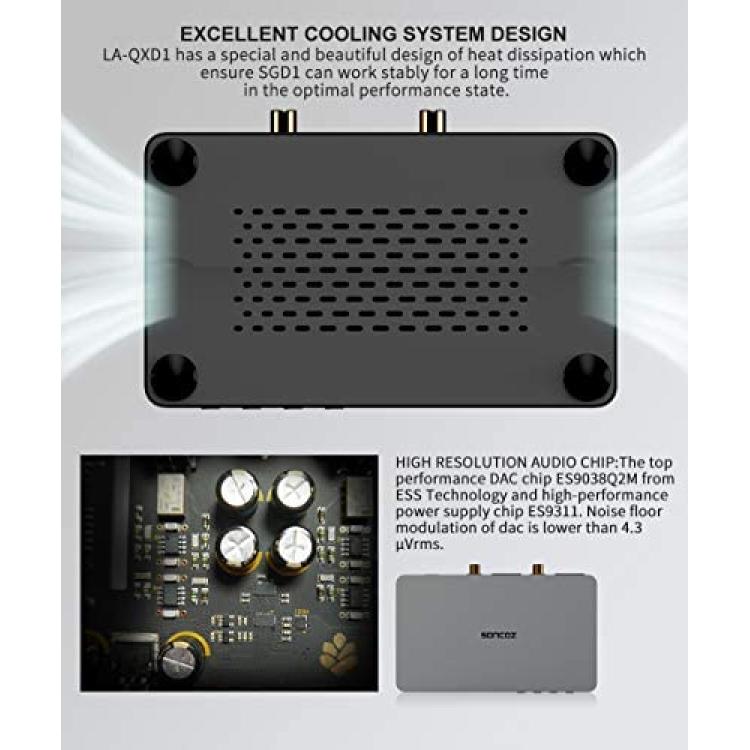

*HIGH RESOLUTION AUDIO CHIP: The top performance DAC chip ES9038Q2M from ESS Technology and high-performance power supply chip ES9311, the noise of the dac is lower than 4.3 μVrms
*POWERFUL DECORDING PERFORMANCE: USB of LA-QXDQ1 supportsPCM 768kHz,32-bits and DSD512(Native).Coaxial and Optical support highest PCM 24Bit/192KHz
*SIMPLE and ACCESSIBLE CONTROL PANEL: The device is easily controlled using four buttons located on the front panel. These provide access to source selection, digital filter adjustment, volume control and mute functions.
Description
-Note-Â
1.The Power input is DC 5V-1A or you can use power bank.(Which are not included in the package content.)
2.The generation of static electricity can cause damage to the components. If it is an already purchased user in November and the local air drying has high static electricity, we suggest that LA-QXD1 contact the metal surface of other surrounding equipment to help prevent static electricity
-Technical Specificaiton-
Type: DAC Digital interface
Architecture: Balanced
Chip: DAC ES9038Q2M
Inputs: USB-B (XMOS)
Optical Toslink
Coaxial SPDIF
Outputs: Analog stereo RCA (single-ended)
Analog stereo XLR (balanced)
Digital Coaxial SPDIF
Sampling frequency (Pay attetion to choose the correct input frequency as follows otherwise it will lead to problems!)
USB: 32-bit / 768kHz PCM - DSD512 (native)
Optical: 24-bit / 192 kHz PCM - DSD64
Coaxial: 24-bit / 192 kHz PCM - DSD64
Dimensions: 149.3 x 87 x 37mm
Weight: 475g

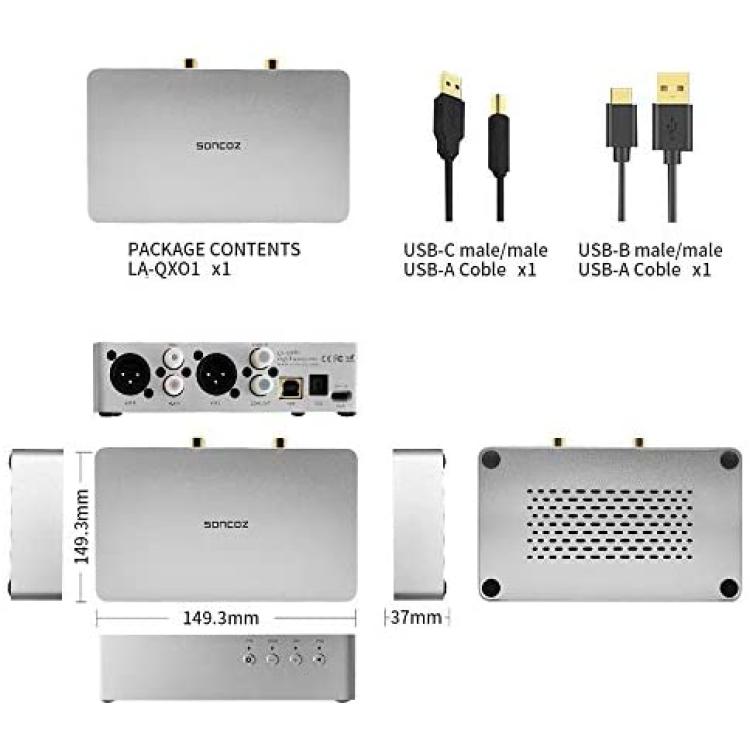

-PACKAGE CONTENTS-
LA-QXD1 Silver x1
USB-B male / male USB-A Cable x1
USB-C male / male USB-A Cable x1
1. "LA-QXD1 Minimum Volume DFU_V501" is default factory firmware version and without hardware volume control;
2. "LA-QXD1 Maximum Volume with Hardware Control DFU_V502" is max volume output firmware with hardware volume control
