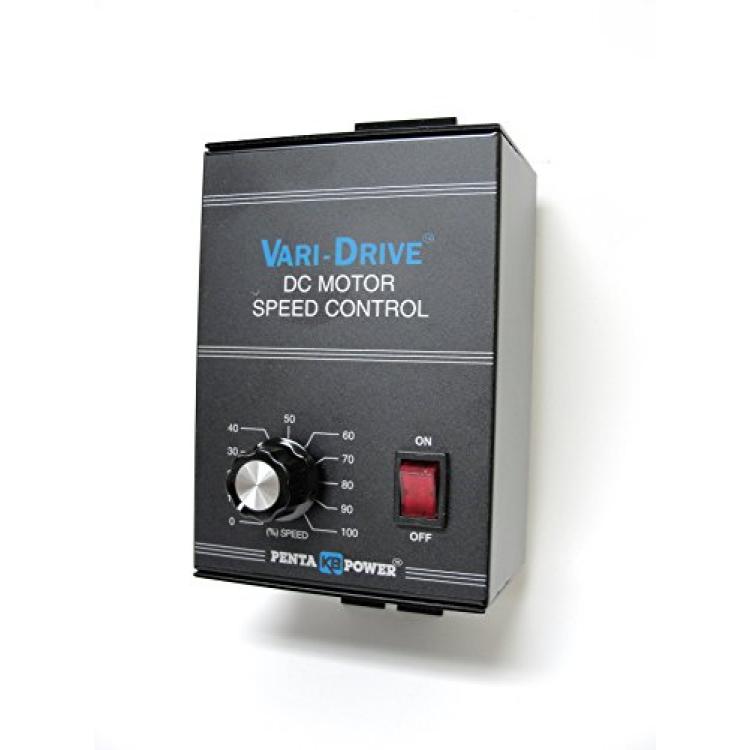

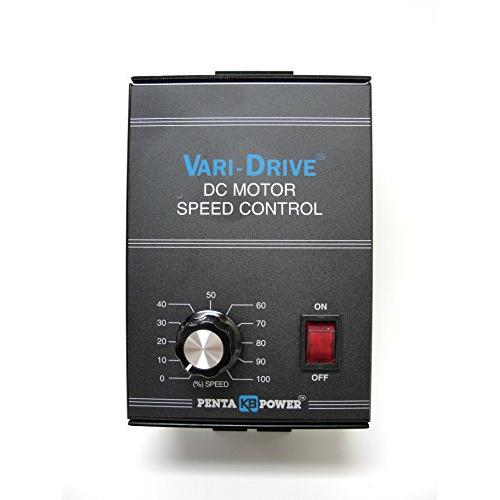

KB Electronics KBWM-240 DC motor control 9381 NEMA-1 enclosure upc: 024822093811

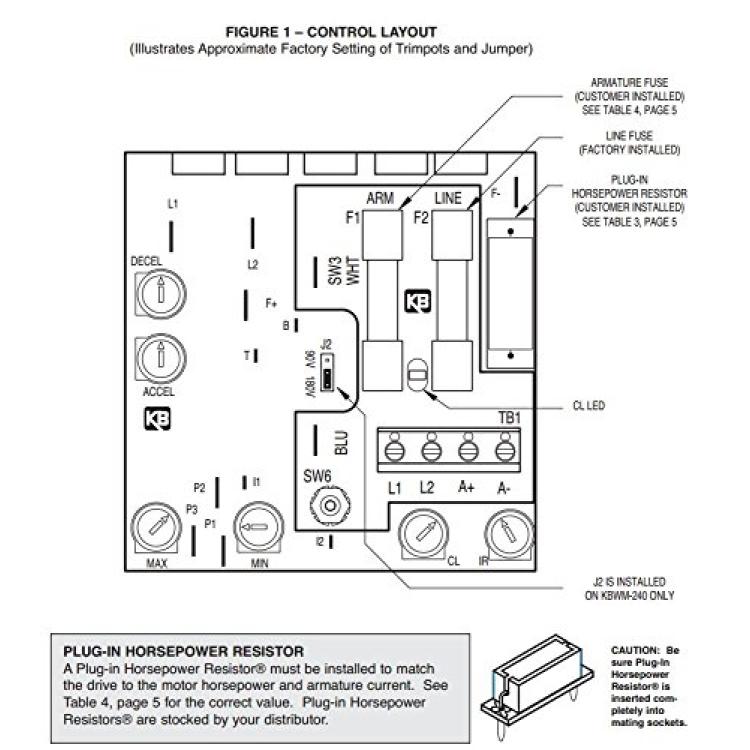

This Drive will not operate without a HORSEPOWER RESISTOR and ARMATURE FUSE. Horsepower resistors and armature fuses are available for purchase from our Amazon store. KBWM Series NEMA-1 DC Drives The KBWM control is a compact version of our Multi Drive (KBMD). The control is packaged in an all metal NEMA-1 enclosure. This unidirectional SCR drive utilizes the KBMM speed control module, which prevents motor failure due to demagnetization, and contains AC line and armature fusing and a barrier terminal connection block. The KB Plug-in Horsepower Resistor automatically calibrates IR Comp and CL. Dimensions: 3.70" x 6.80" x 3.00"
