BAOSHISHAN Digital Force Gauge HP-500N Push Pull Gauge (50kgf/110lbf/500N) with Manual Force Test Stand Hand Wheel-Operated and HJJ-001 Clamp x 2 (HLB+HP-500N)

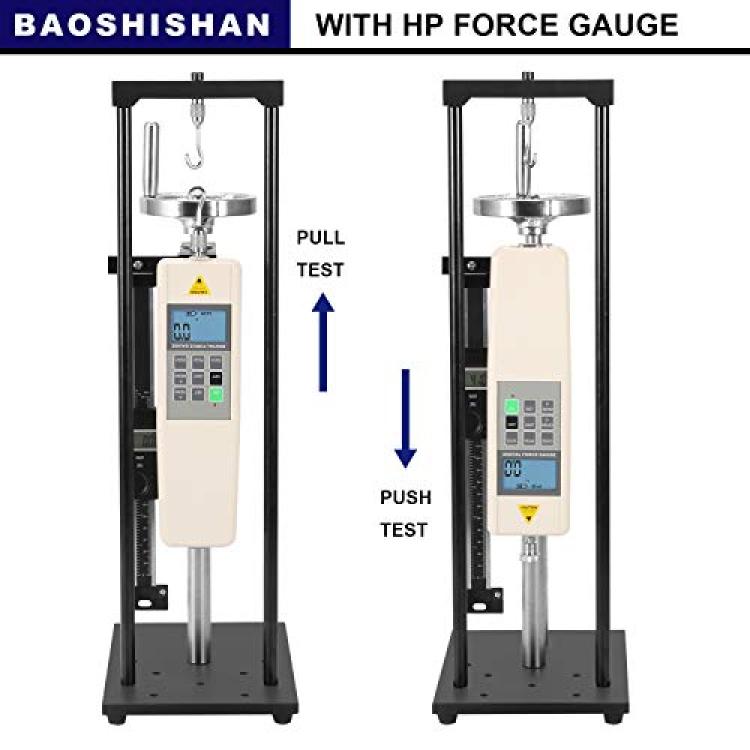

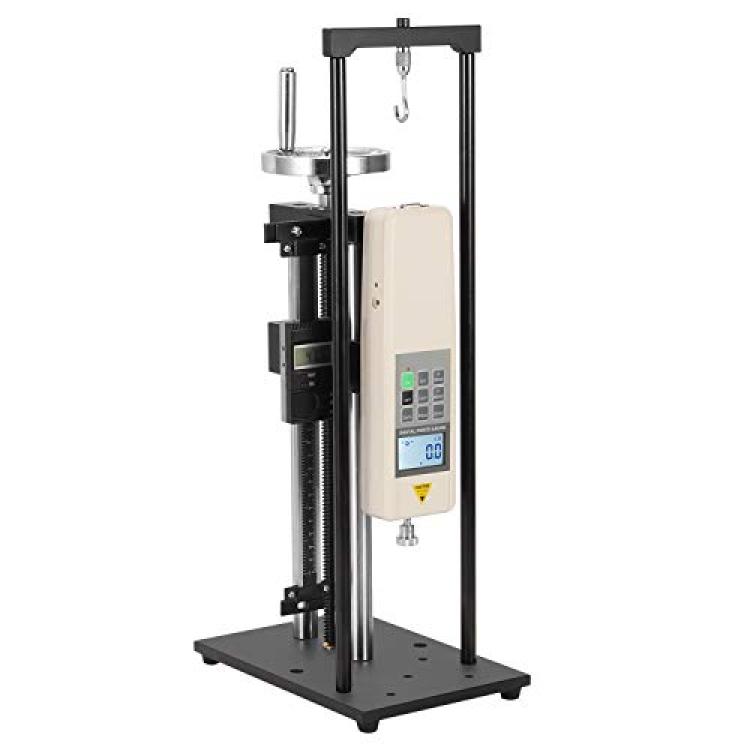

BAOSHISHAN HLB Force Test Stand with HP Digital Force Gauge

Features
[Force Test Stand] Match to NK/DL/HP series force gauge with 150mm stroke.

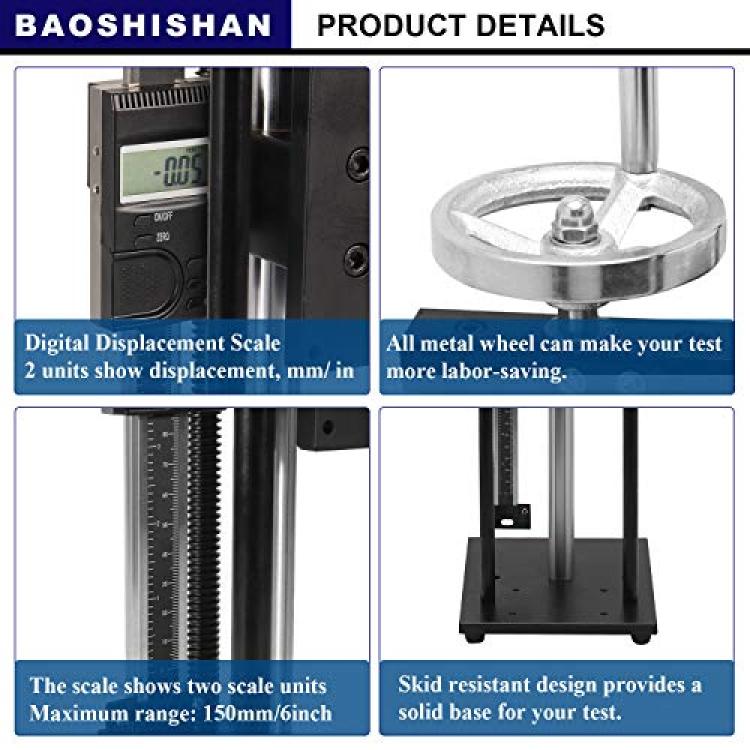

[Force Test Stand] The digital scale can help you record the displacement during the test. All metal wheel can make your test more labor-saving. Skid resistant design provides a solid base for your test.
[HP Force Gauge] HP-Series digital force gauge test up to 500N/50kg/110lbs.
[HP Force Gauge] RS-232 serial output function, extra memory storage - 888 test value storage; Induction backlight, turn on and off, free to set .
[Application] Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment.

Technical Datas

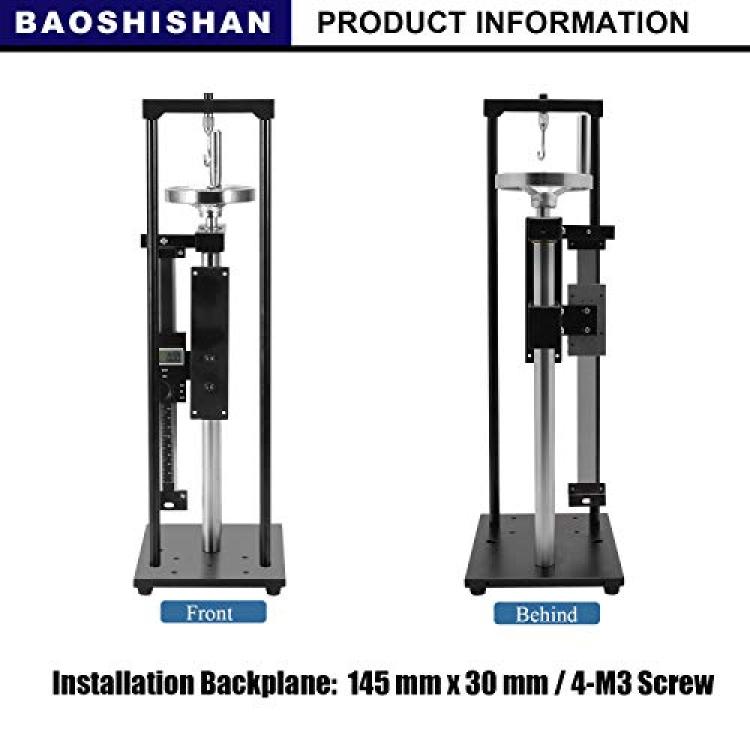

The Test Stand
Model:HLB Manual Force Test Stand
Maximum load:500N
Effective stroke:150 mm

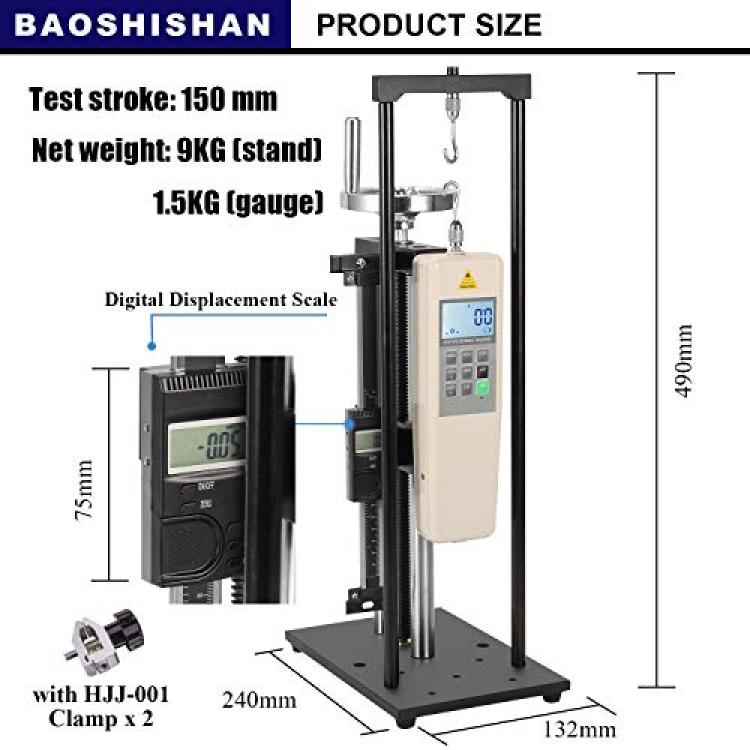

Length × Width ×Height:230×152×490 mm
Net weight:9 kg

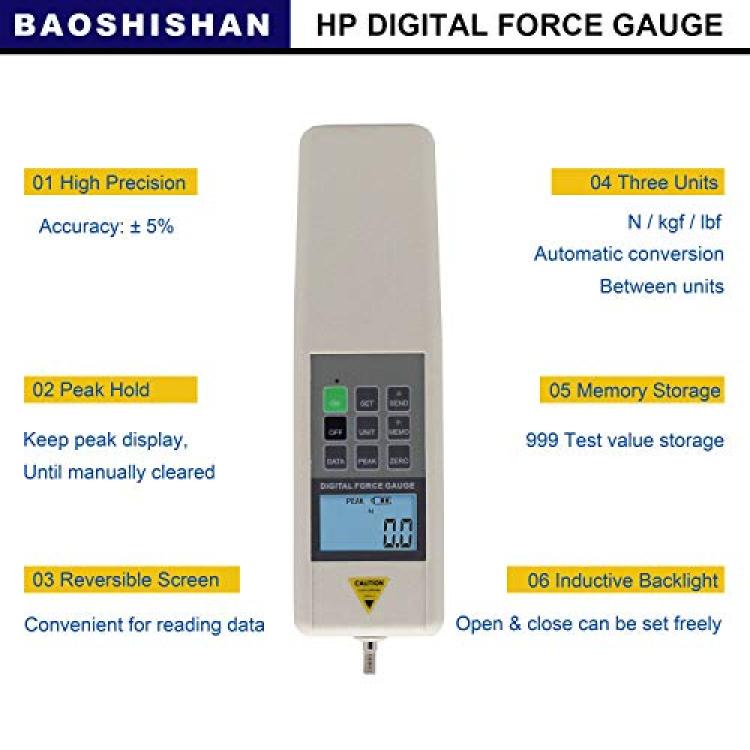

The Force Gauge
Model:HP Digital Force Gauge
Maximum load: 500N/50kg/110Lbs
Units : N, Kg and LB for your selection, which can make conversion each.
Super memory function - deposit 888 test values.
LCD screen turn direction function.
RS-232 output
a. match a free software for analysis (without graph).
b. match a synchronous test software (software is optional), it can connect to PC to get synchronous graph, and also can reserve ,print, analysis, and so on.

Note
All products have been checked and packaged in good condition before shipping.
Our store provide One Year Warranty including technical support and free accessories if needed ( Consumables not included ).
If you have any question, please feel free to contact with us .
