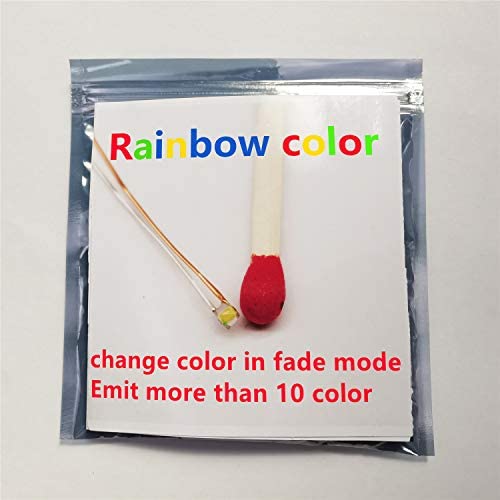

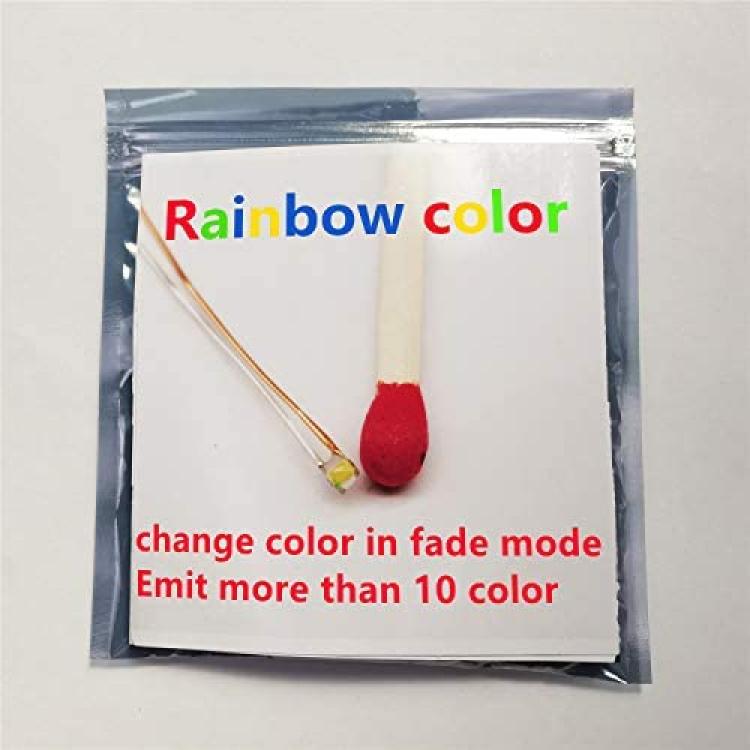

25pcs Pre-soldered Wired Micro Litz Wired Leads Rainbow RGB Color Fade Mode SMD Led 0603 + Muti-Resistor, Bowerful

This pre-wired LED is Super small with resin cover to protect, with 10cm wired,Super strong LEDs and wire,
The wire is bendable, it easy to fix any shape as you like

You can connect with any 3V battery directly

All LEDs work in 3-3.3 Vdc
Do not need add any resistor, it can work with normal 3V battery (Example: CR 2032 battery, CR 2025, ..."3A X 2", 2A X 2 or any 3V battery , )

If you want the LEDs work in other voltage,we provide below resistors in the package too
100pcs resistors (not pre-soldered) for 3.5~5V are included .
100pcs resistors (not pre-soldered) for 5~9V are included .
100pcs resistors (not pre-soldered) for 9~14V are included .

Specifications :
The LEDs size is : (length)06" X '03"(width) X 03"(height)
- Luminance intensity: 350 mcd / 120¡ã Viewing Angle
-Emitting color: Green
-Forward voltage:3-3.3VDC Compatible.
(if you need the LEDs work in other voltage, please add resistor)
-Forward current Typical: 15mA or below; Max: 20mA
-Viewing angle:120¡ã Viewing Angle


Applications & Installations:
Suitable used in any small model, cosplay, small model building,
Very low power consumption, and high luminous intensity
Recommended voltage is 3-3.3VDC

Package included :
100pcs pre-wired SMD LEDs (pre-soldered) with 10cm wire length
100pcs resistors (not pre-soldered) for 3.5~5V are included .
100pcs resistors (not pre-soldered) for 5~9V are included .
100pcs resistors (not pre-soldered) for 9~14V are included .
