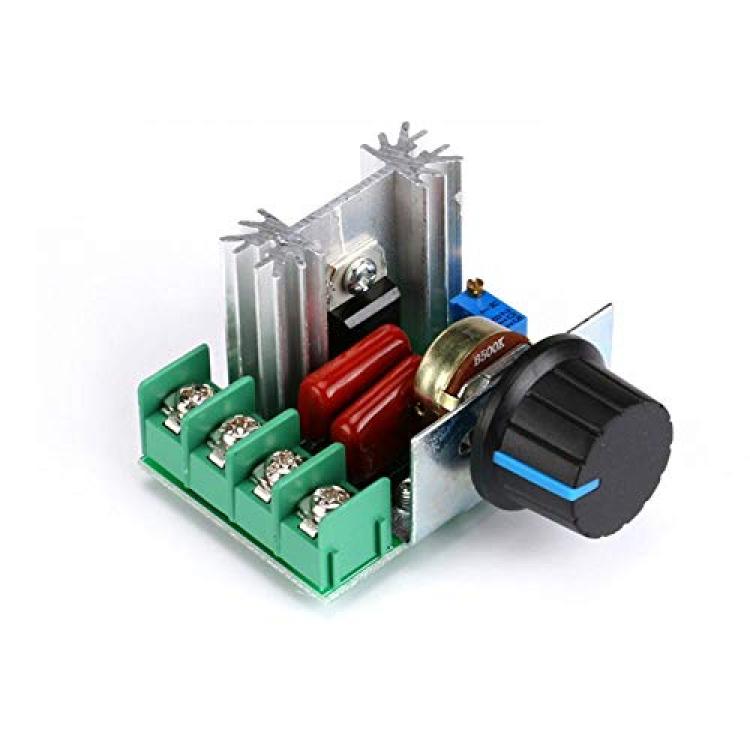

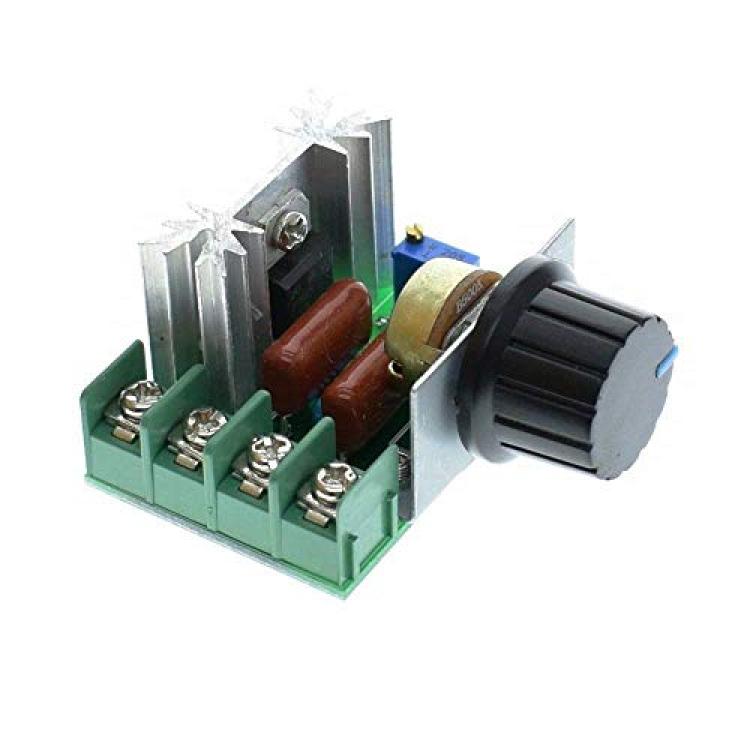

DAOKI 2Pcs Motor Speed Controller AC 220V 2000W SCR Voltage Regulator Dimming Dimmers Thermostat Electronic Voltage Regulator Module

Description:

Specification:
Input supply voltage: 110V ~ 220V AC.
Output voltage 50V-220V (Output voltage ? Input supply voltage).
Maximum output power 2000W.
Maximum output current 25A.
Operation environment temperature -20? - 40?.
Module size: 1.85×1.38×1.06 inches (No knobs included).
Knob diameter: 0.79 inches.
Net weight: 1.76 ounce.

Features:
This controller uses high-quality SCR. And the max current is up to 25A.
For the safety, we suggest the continuous load current is within 5A.
This AC voltage regulator can be used to control AC motor speed, AC light and heating wire temperature.
Inductive or Capacitive Load power should be reduced. For example, recommended for motors within 1000W.

Instruction:
Before you attempting to wire the controller, make sure all power is disconnected.
Cut any one of the battle line or zero line of the lamp or electrical appliances, and connect wires refer to the “wiring diagram”.

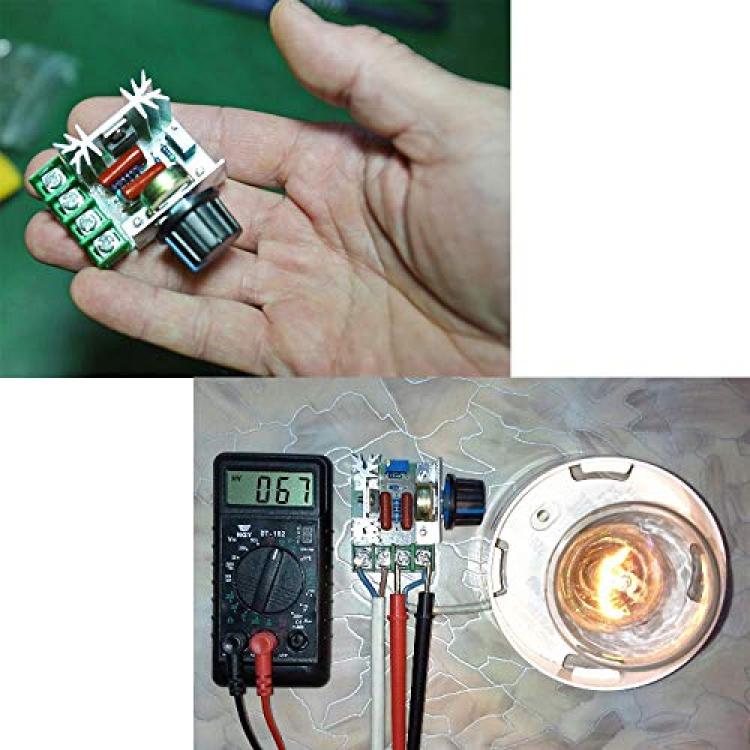

Turn on the power, and adjust the potentiometer.

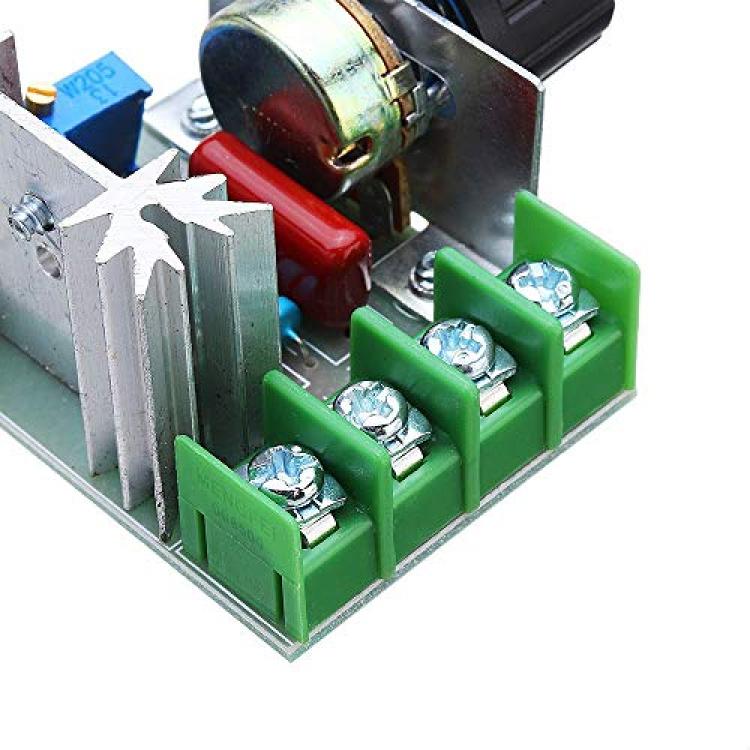

If the adjustment range is found to be narrow, please adjust the blue potentiometer on the product counterclockwise to set the maximum adjustment range to 50V to input voltage.

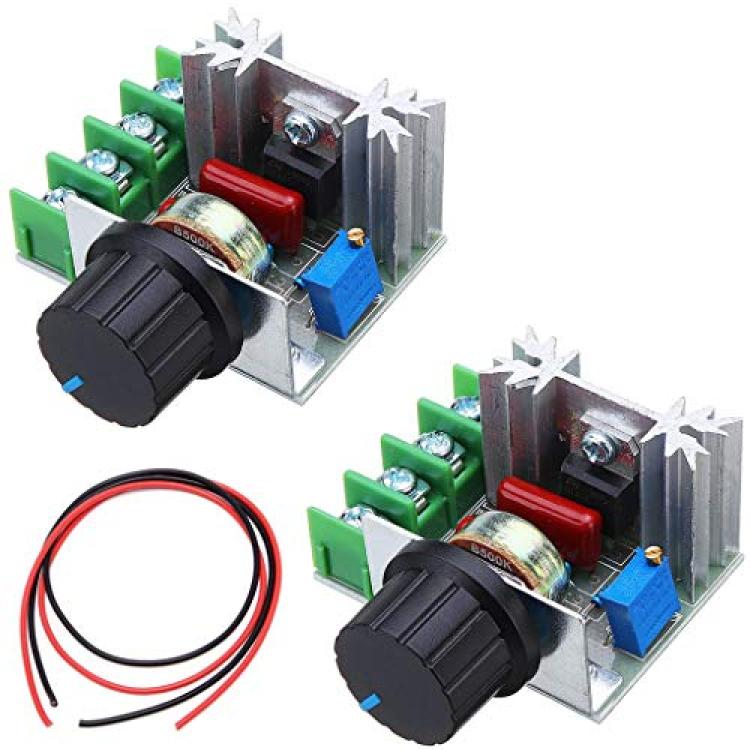

Package Included:
2 × AC Motor Speed Controller
1 x 50cm/19.6inch Power Wire
