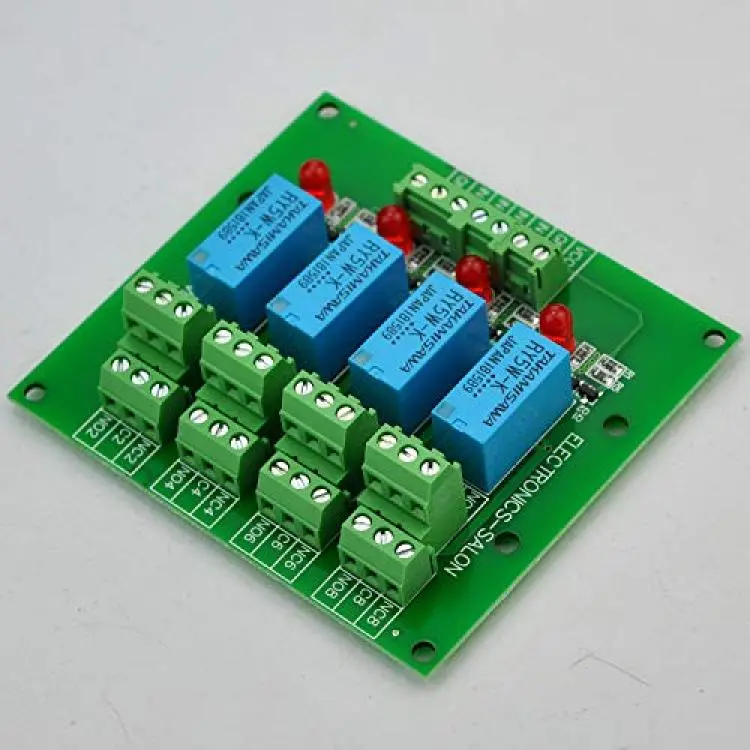

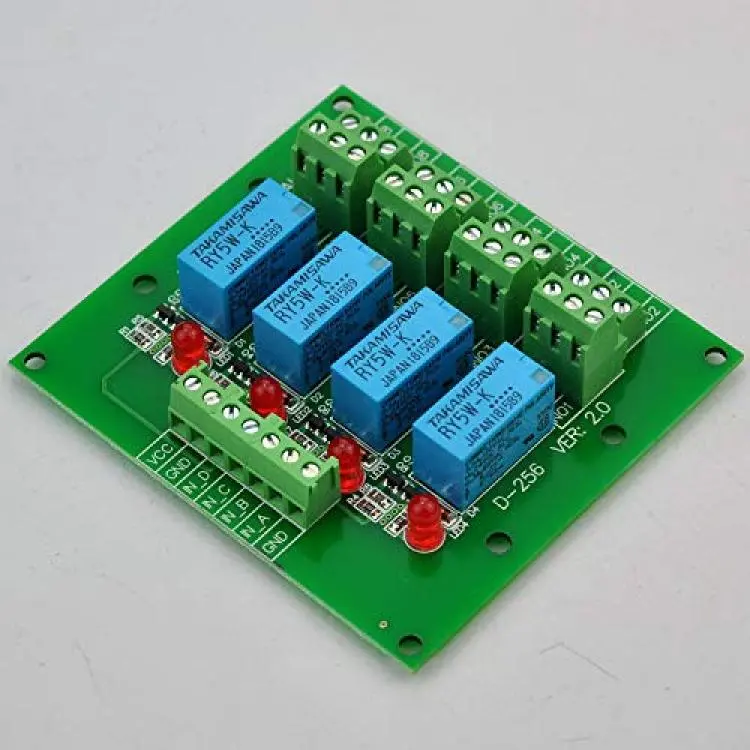

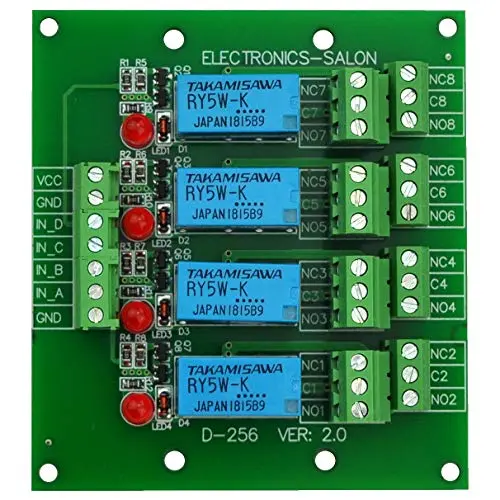

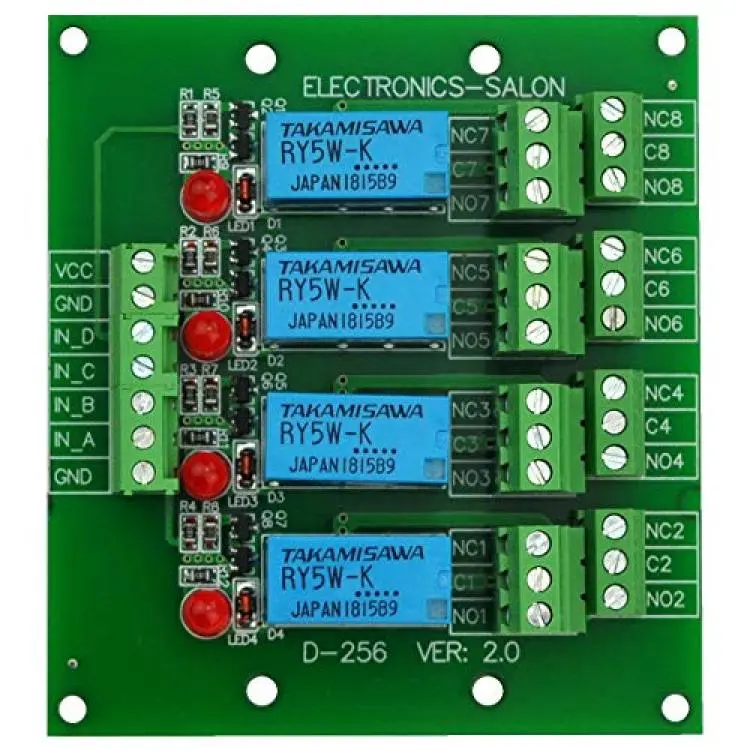

Electronics-Salon 4 DPDT Signal Relay Module Board, DC 5V Version, for Arduino Raspberry-Pi 8051 PIC.

August-24, 2018, upgrade to version 2.0

4 DPDT signal relay module. TAKAMISAWA RY5W-K high quality relays, switch contact material - gold overlay silver-palladium.
Darlington transistor circuits drive relay coil, LED indicator for each relay channel.

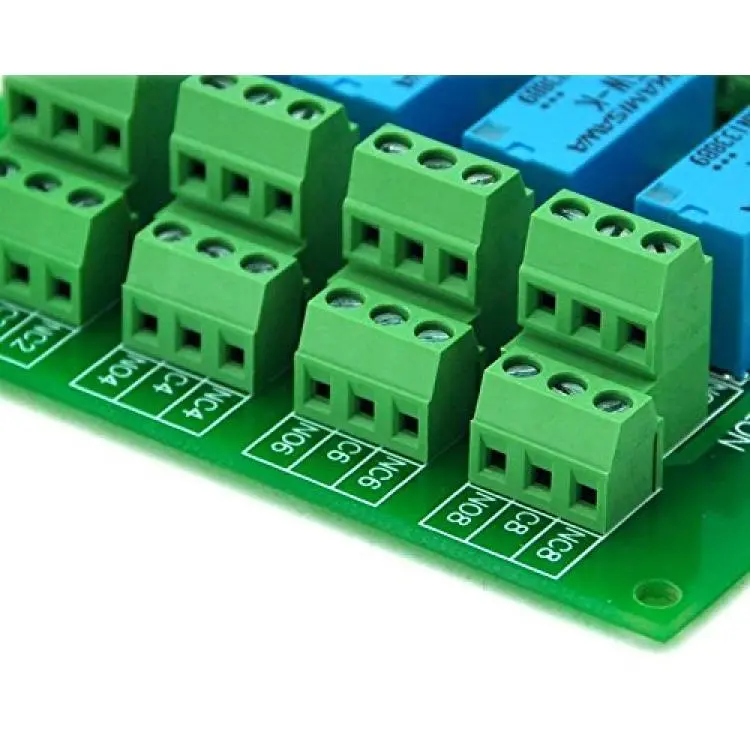

High quality screw terminal block.
FR-4 fiber glass PCB, dual copper layers.
Dimensions: L72.5mm x W80mm x H18.1mm

Operating Voltage / Current (VCC): 3.6 to 6.5VDC / 200mA(at 5VDC).
Control signal voltage (IN-X):
0V - 0.5Vdc (low level), relay not action.
2.5V - 24Vdc (high level), relay action.

Output (relay switch) contact rating for each switch:
For AC, 120VAC / 0.5Amp
For DC, 24 VDC / 1.0Amp

The item no paper specifications,
