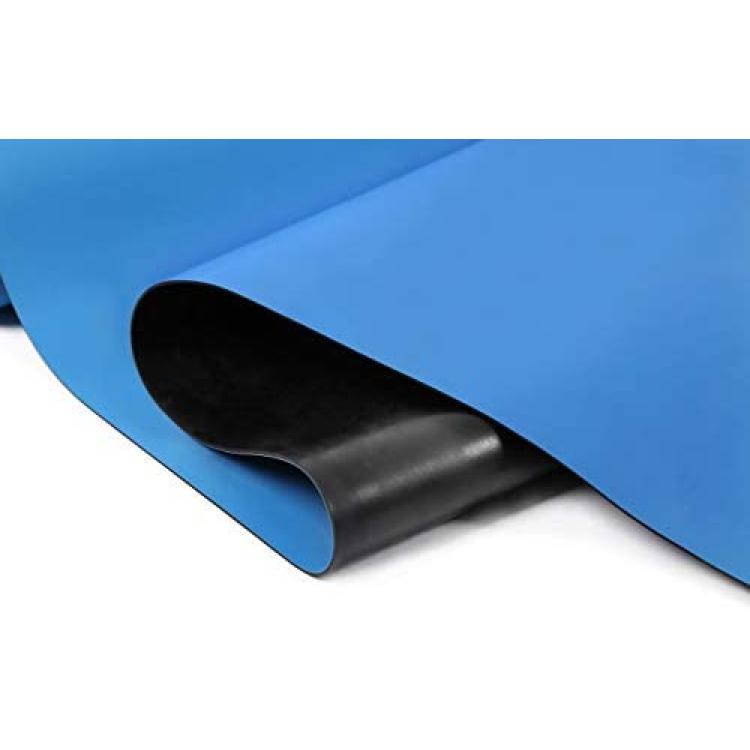

Swwip ESD mat Package is 1 mat/Bag,Size is 24x27.5(24inchesx27.5 inches) it Offers an Excellent Resistance to Oil, Grease and Most solvents, and are Lighter Than Our Single and Three Layer mats.
About this product
*1) 2-layers mat -Top layer: Static dissipative NBR. Resistivity of top layer: 10^8-9/Sq -Bottom layer: Conductive NBR. Resistivity of bottom layer: 10^4-5 /Sq
*2) Colors: Blue
*3) Thickness: (2mm)
*4) Tensile Strength (MPa): 27.9 Elongation(%): 295 Resistance to Group: Less than 107 /Sq Chemical Resistance: Solvent, Acidic, Alkali, Oil, Aromatics Non Chemical Resistance: D. O. P Ketone 5KV decay time: < 0.01sec.
*5) Applicatin: It is useful for semiconductor,computer & electronic parts factories, electronic exchange or OA machinery rooms,and chemical laboratories, will not peel, chip, or curl.
Description
Cleanmo ESD mats are designed for an electronic assembly where static charge is a concern. The ESD High Temperature Mat Kits have a top layer made of static dissipative rubber and a bottom layer made of black conductive rubber. The mats offer an excellent resistance to oil, grease and most solvents, and are lighter than our single and three layer mats.
