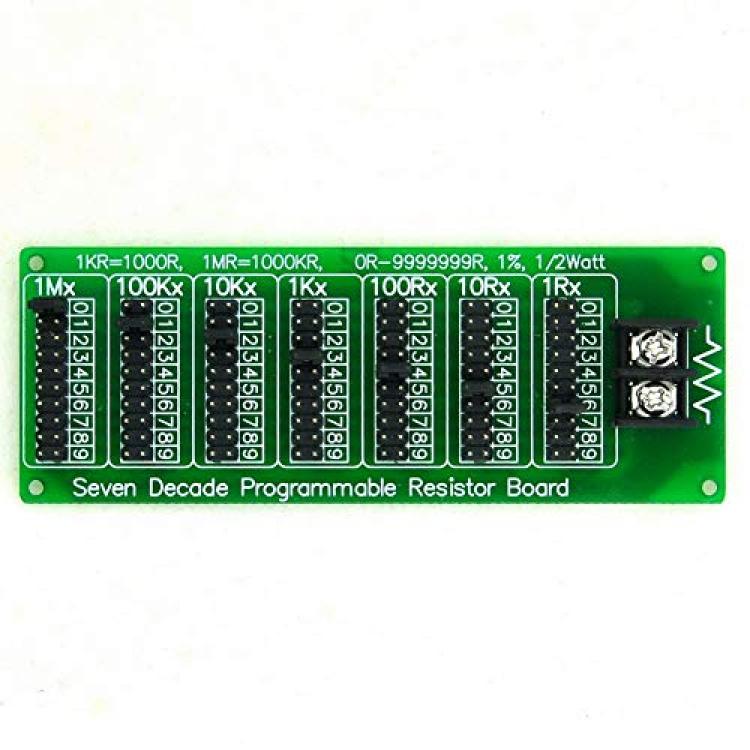

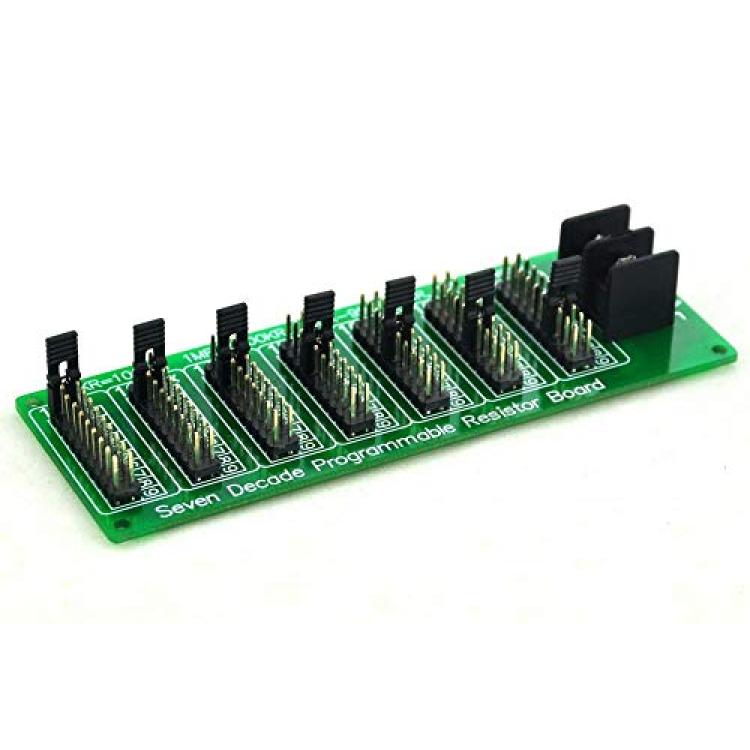

Electronics-Salon 1R - 9999999R Seven Decade Programmable Resistor Board, Step 1R, 1%, 1/2 Watt.
Availability: Pre-Order, Inquiry Price
About this product
*Quantity: a lot of 1 unit.
*This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.
*Design based on "resistors series" theorem. 1/2 watt tolerance +/-1% SMD resistors. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces).
*Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step. Resistance Tolerance: +/-1%. Rated Power: 1/2 Watt. Max. Working Voltage: 200V.
*PCB Size: 110mm x 40mm / 4.4" x 1.6"
Description
This is "resistance substitution box" good low-cost alternative solution, can flexible and quick setting resistance range from 1R to 9999999R, step accuracy 1R. for educational experiments, electronic engineering design or test trimming are excellent applications.
Features:
Design based on “resistors series” theorem.

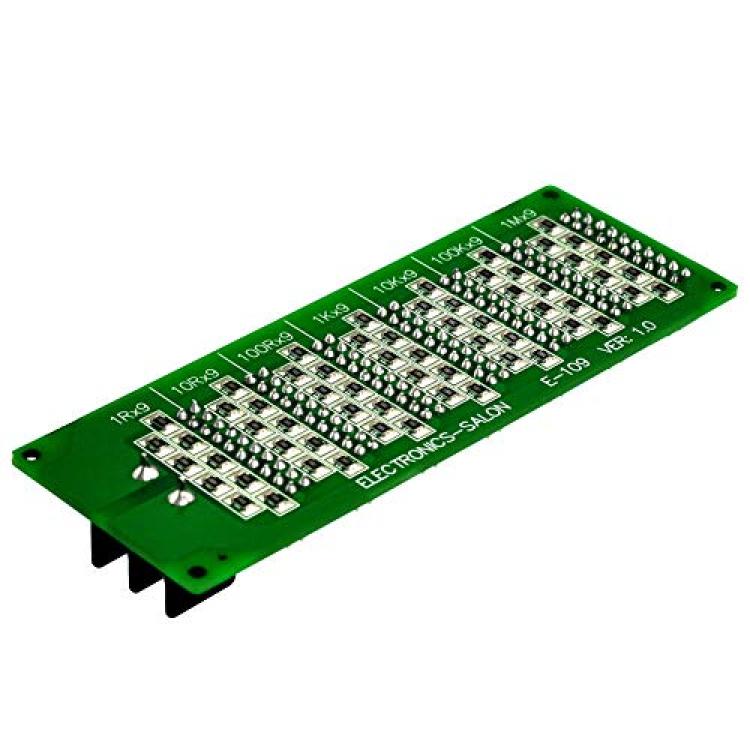

1/2 watt tolerance +/-1% SMD resistors.
Screw terminal block easy to connect wires.
High quality FR4 glass fiber PCB.

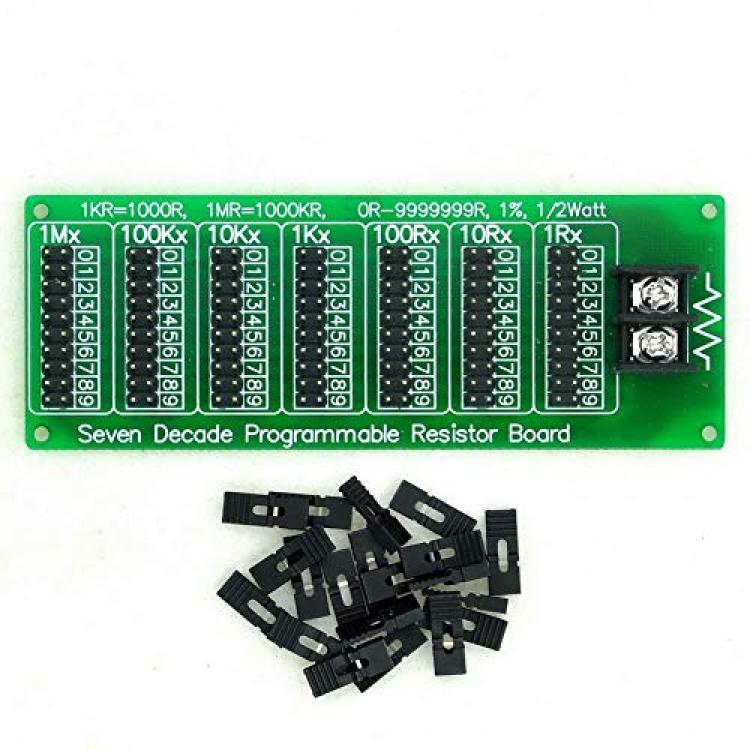

With spare parts 10 pieces jumper caps (on board 7 pieces, total 17 pieces).
Programmable Resistance: 0 to 9,999,999 ohm, 1 ohm per step.
Resistance Tolerance: +/-1%
Rated Power: 1/2 Watt.
Max. Working Voltage: 200V.

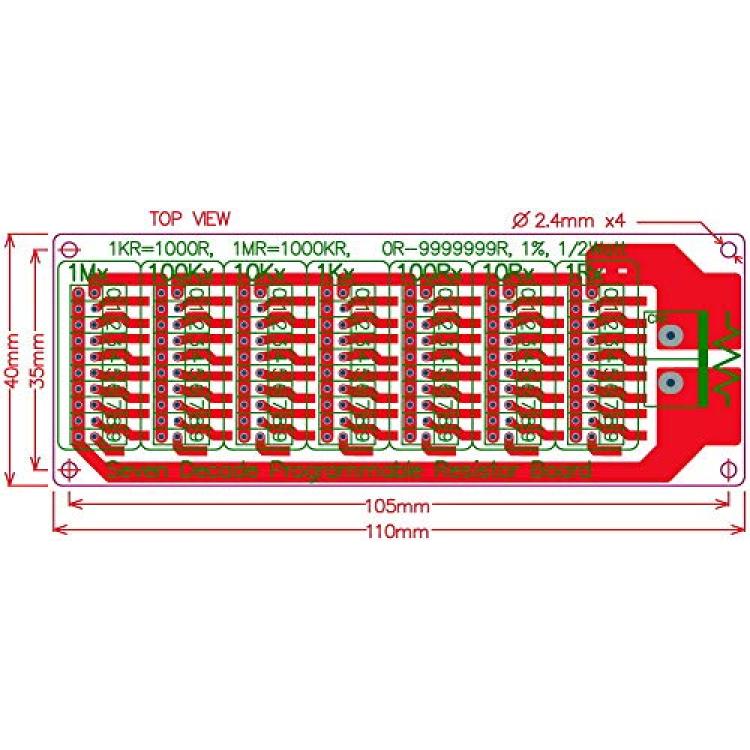

PCB Size: 110mm x 40mm / 4.4" x 1.6"
?
