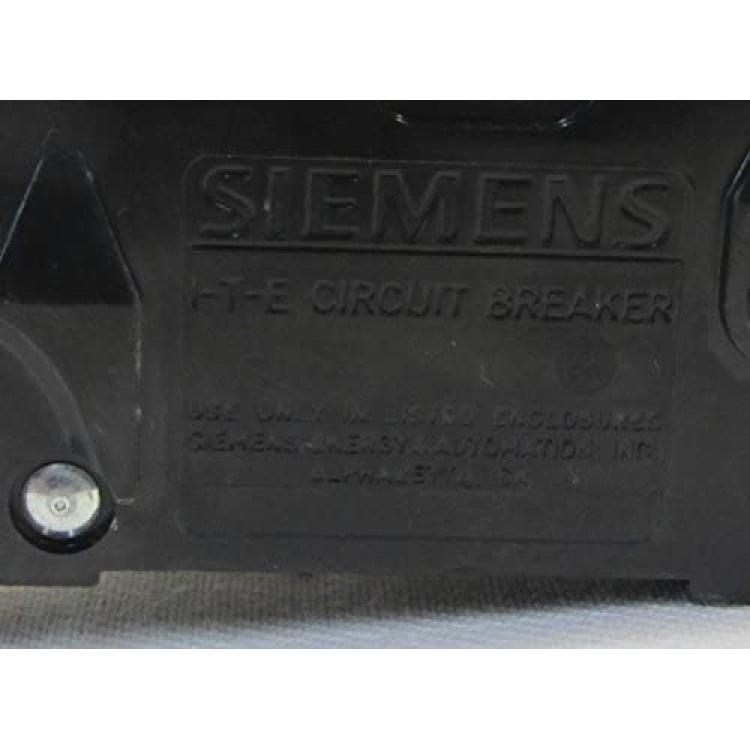

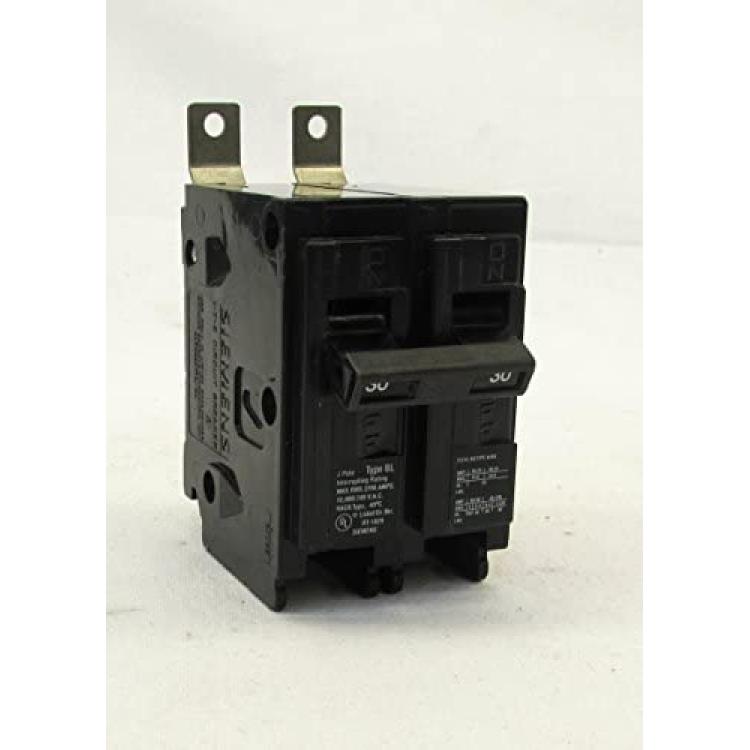

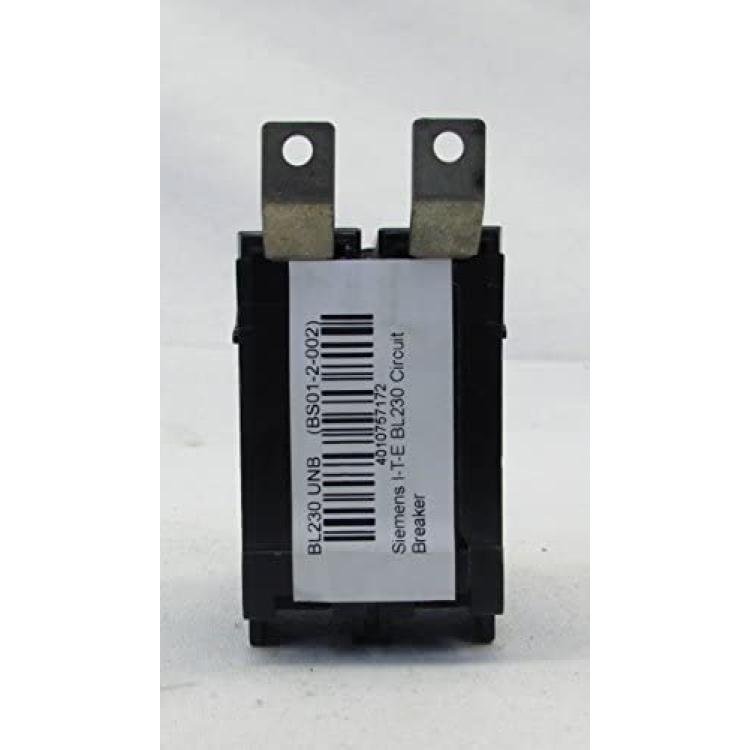

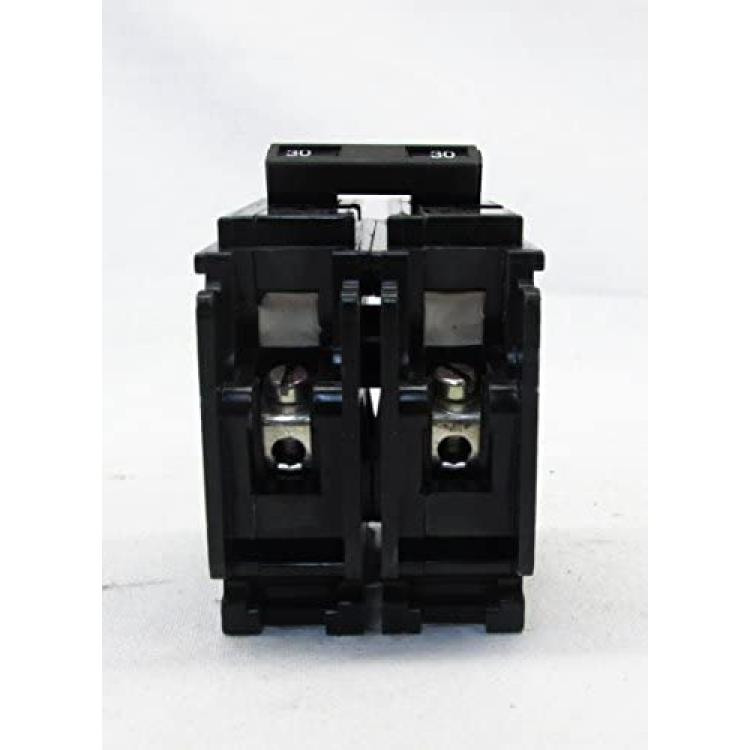

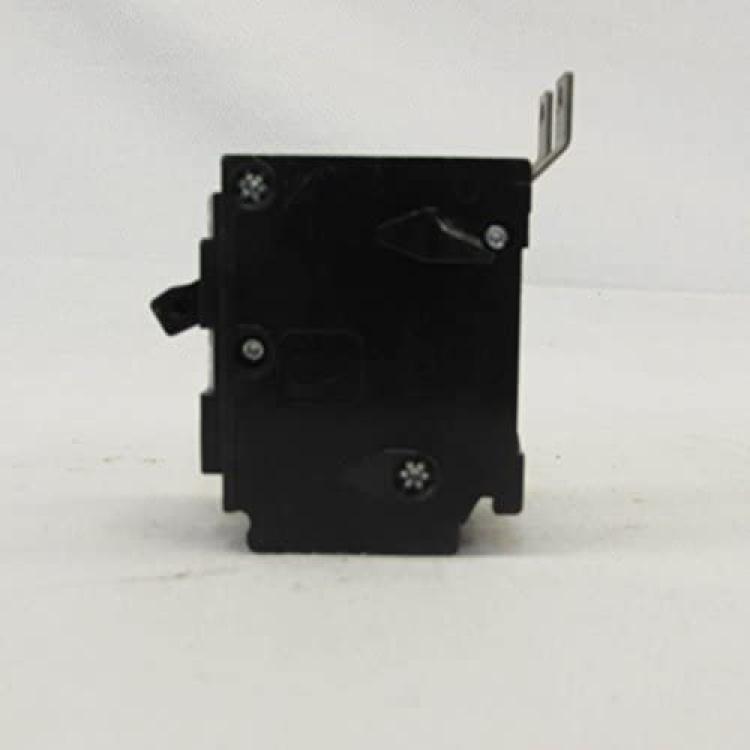

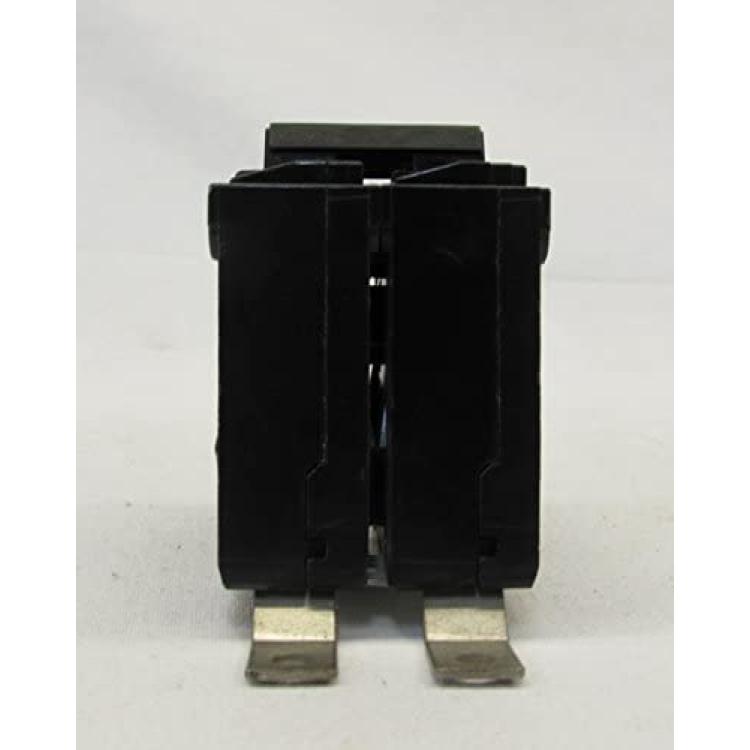

Siemens B230 Panelboard/Bolt-On Mount Type BL Low Tab Molded Case Circuit Breaker 2-Pole 30 Amp 120/240 Volt AC
Product Code: HSM22566
Availability: Pre-Order, Inquiry Price
Availability: Pre-Order, Inquiry Price
About this product
*240 Volts
Description

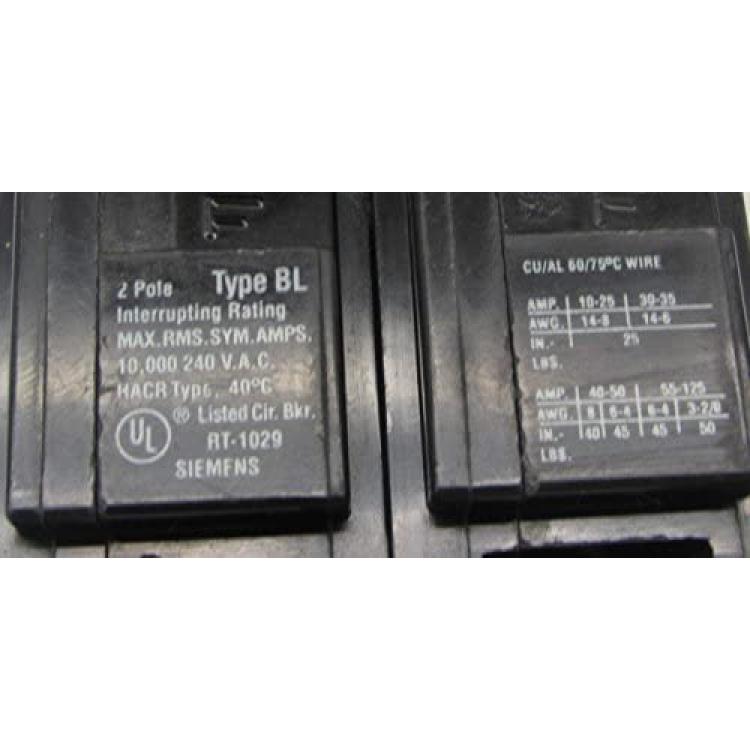

Bolt on circuit breaker 30 amps number of poles 2 circuit breaker type standard ac voltage rating 120/240vac dc voltage rating not rated for use with siemens panelboards series b terminal connection lug max air rating 10 ka frame size 125a/bl min wire size 14 awg (cu) 12 awg (al) max wire size 6 awg length 3.57 in. Width 2.00 in. Depth 3.00 in. Standards ul listed csa certified hacr rated nom certified
