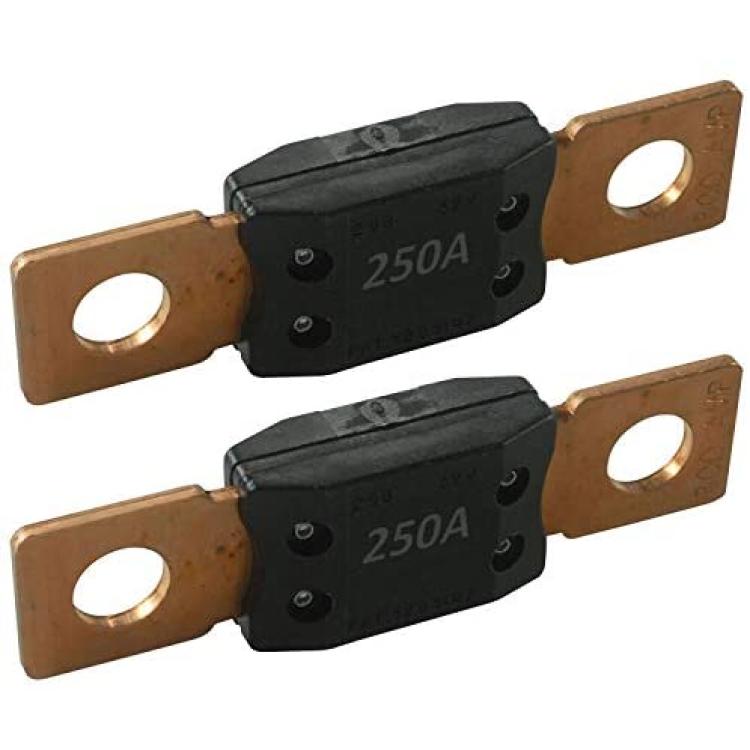

2 Pack High-Current Stud Mount Fuse - 250 Amp Rating 32V, 298 Series, Time Delay, Bolt Down - Automotive/Marine

2 Pack High-Current Stud Mount Fuse - 250 Amp Rating 32V, 298 Series, Time Delay, Bolt Down - Automotive/Marine

Product Code: HSM22320
Availability: In Stock

US$6.99

- +

For Bulk Order, Get Better Price.

About this product

*Designed for high current applications that require a robust, fast-acting fuse

*Bolt down design features rugged tin plated copper terminals and color-coded amperage ratings

*Designed for high current applications that require a robust, fast-acting fuse

*Bolt down design features rugged tin plated copper terminals and color-coded amperage ratings

Description

Interrupting Rating: 2000A @ 32 VDC Voltage Rating: 32 VDC Operating Temperature Range: -40?C to + 125?C Housing Material: PPA Terminals: Copper, Nickle Plated Mounting Torque: 8-14 Nm M6, 12-18 Nm M8 Complies with: ISO 8820 Rating / Blow Time 110% / 4 Hours - Min. 135% / 10 Minutes - Max. 200% / 5 Seconds - Max.
