Blue Sea 5046 Atc Compact Fuse Block With Cover, 8 Circuit 19-143
Availability: Pre-Order, Inquiry Price
About this product
*Brand / K4 Switches
*Quality Switches For Automotive / Industrial / Marine And Many Other applications
*8 Circuit, Rated For 6 To 32 Volts. Maximum Load Per Fuse/Circuit Is 30 Amps, Max Load Capacity For All Circuits Combined Is 100 Amps
*Sold As Each
*K Four Item #19-143
Description

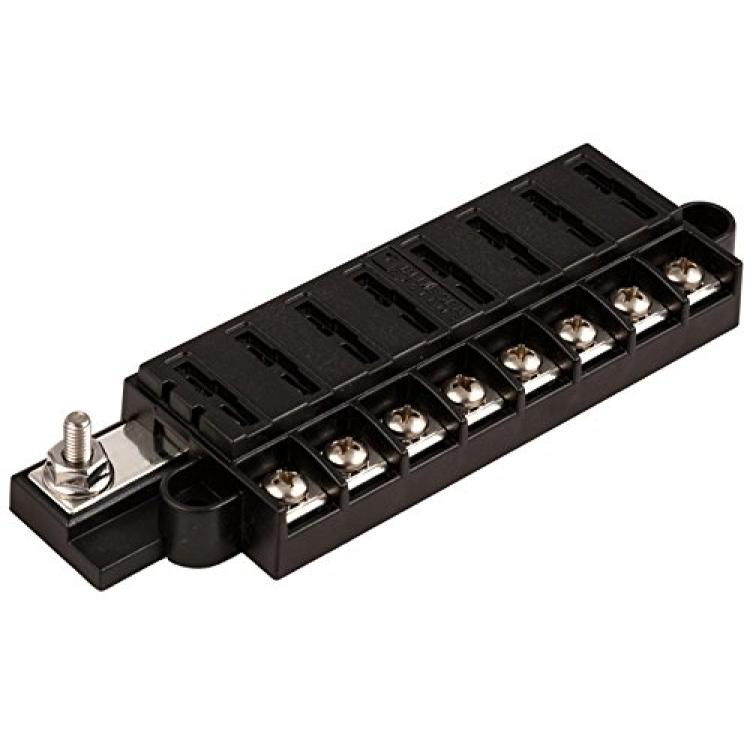

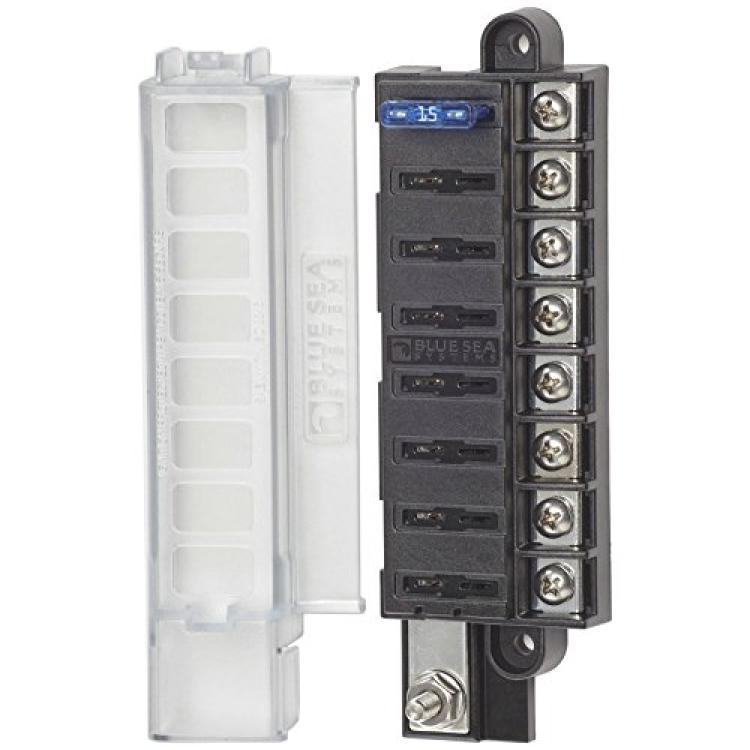

Blue Sea 5046 Compact ATO / ATC Fuse Block, 8 Circuits.
Features:
Provides Surface Mount Circuit Protection For ATO/ATC Fuses In A Compact Footprint
Ignition Protected When Cover Is Secure - Meets ISO 8846 And SAE J1171 For Use In A Gasoline Engine Compartment
Single Side Design Allows Wire Entry From One Side To Minimize Footprint

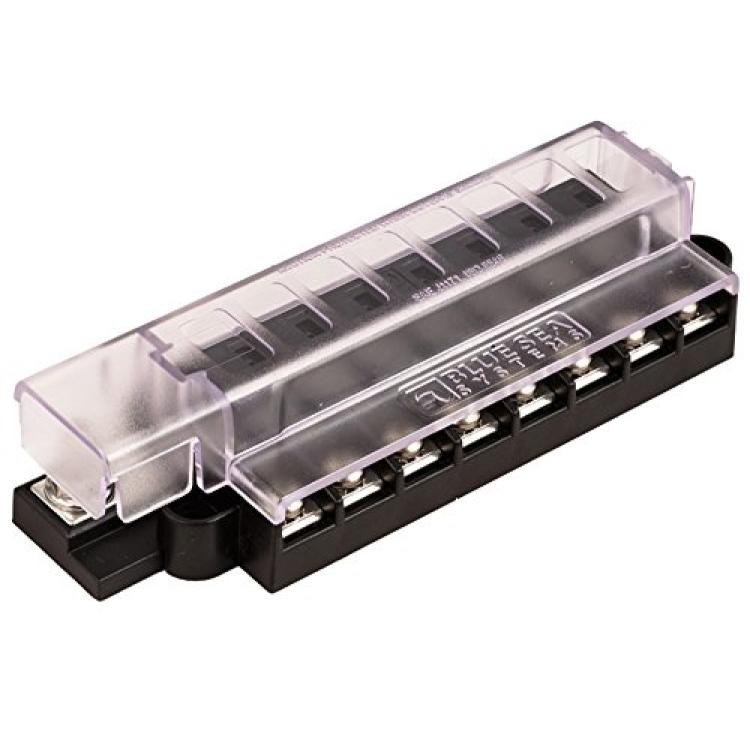

Insulating Cover Meets ABYC/USCG Insulation Requirements
Tin-Plated Copper Buses And Fuse Clips
Accepts Ring Or Snap Fork Type Terminals
Fuses Sold Separately
Specs:
Blue Sea 5046 ST Blade Fuse Block
Circuits 8
Maximum Amperage 100A Per Block / 30A Per Circuit
Maximum Voltage 32V DC
Mounting #8 Screw (M4)
Screw Terminal Type #8-32 Screws With Captive Star Lock Washer
Terminal Stud Size #10-32
Fuses Not Included
Sold As Each
19-143 K-Four Switches
