Tubular Cam Lock with 1 1/8'' Cylinder and Chrome Finish, Keyed Alike with 2 Keys, 1 1/4'' Cam and Offset Cam
Availability: In Stock
About this product
*KEYED ALIKE - Westway Locks 1 1/8" tubular cam locks (sometimes called the ace cam lock) are keyed alike at 72351 with two keys per lock. Each key will fit with each lock that you purchase.

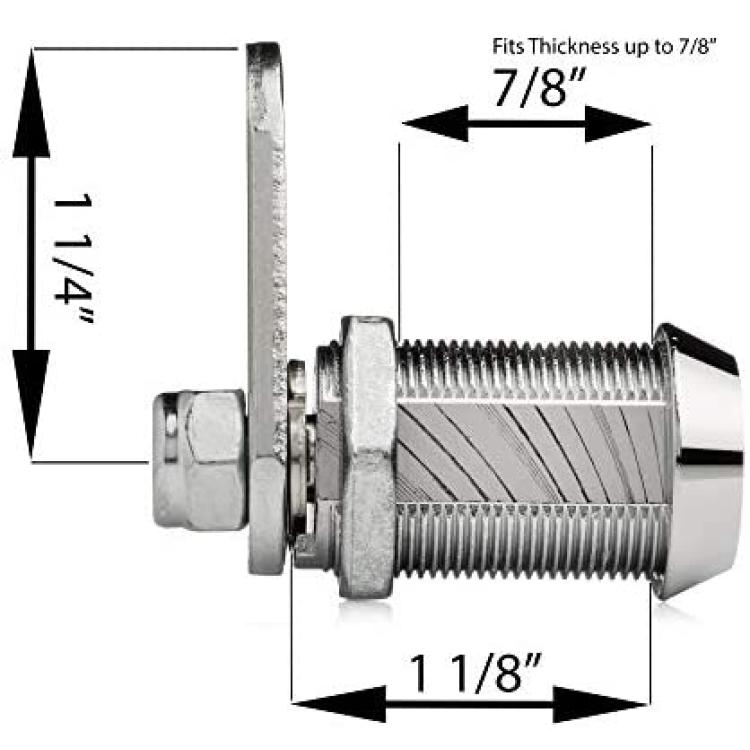

*FITS LONGER SPACES- The locks cylinder length are 1 1/8"long. They can fit a material thickness of up to 7/8". They are standard sized cam locks with 3/4" diameter. (see diagram for a more detailed picture).
*VERSATILE INSTALLATION - The locks versatility allows it to be installed in multiple positions. The cam can be installed on the lock at the 3, 6, 9, or 12 oclock position and opens with a 90 degree turn.
*NON-KEY RETAINING - Ships with reversible stop cam and is non-key retaining, allowing you to remove the key from the locked and unlocked position.

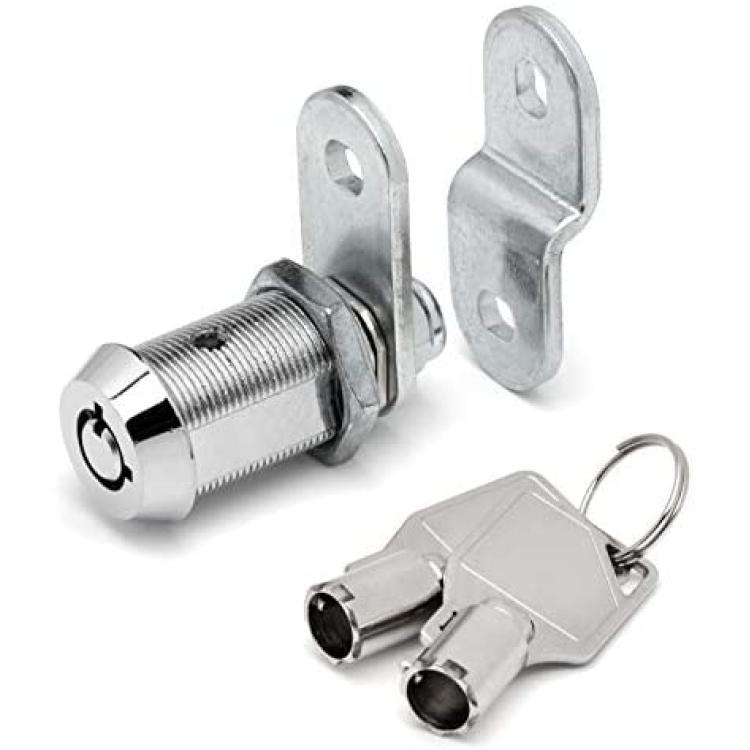

*INCLUDES - Ships with (1) 1 1/4"locks, (1) 1/4" cams (latching part), (1) 33" offset cams, two keys, a steel cylinder nut, a stop cam , and a cam nut. They are constructed of zinc alloy and are chrome plated. Please refer to the diagram for more details on dimensions.
Description
7 Pin Tubular Cam Lock - 1 1/8" Cylinder Length The Tubular Cam Lock (sometimes called the ace cam lock) has a 1 1/8" cylinder length and can accommodate material thickness up to 7/8" thick. The 1-1/4" cam can be installed at the 12, 3, 6 and 9 o’clock positions with a 90 degree turn. The stop cam is reversible so that the lock key can either be turned to the right or left to open. The cylinder diameter is standard at 3/4". The small cam lock is constructed of zinc alloy and is chrome plated. The hex nut, cam, screw and keys are all steel with chrome plating. Secure Keyway The tubular cam lock is keyed alike (all keys to all the locks you buy will work with each on all of your locks) with 7 pin security. It is also non-key retaining - The key can be removed in the locked and unlocked positions. Included In The Box Tubular Cam Lock Two Keys Cylinder Nut 1-1/4" Cam , Offset Cam and Cam Nut Accessories The locks are compatible with dual hole cams. Applications Furniture Electronics Enclosures HVAC Industrial Enclosures Industrial Equipment Medical Cabinets and Equipment Recreation Vehicles Transportation Vending POS Replaces Any Current Cam Lock Application
