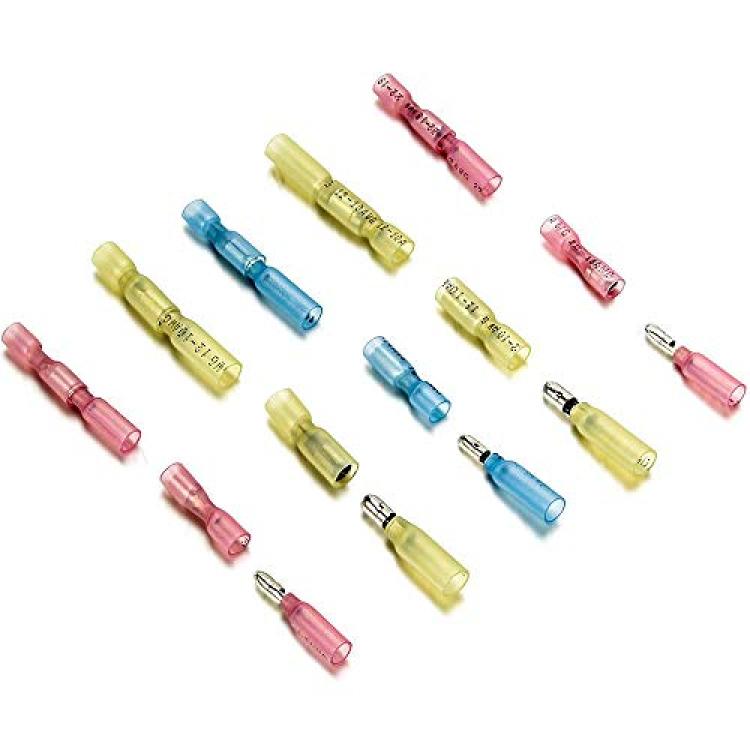

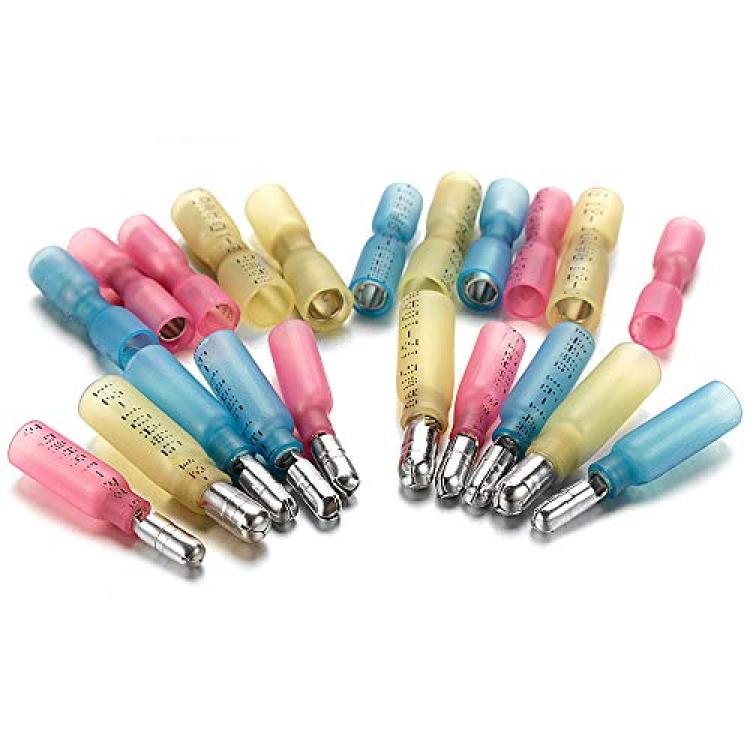

Qibaok 320PCS Heat Shrink Bullet Connectors Kit Female & Male Bullet Butt Terminals Insulated Waterproof Electrical Marine Crimp Automotive Connectors
Availability: Pre-Order, Inquiry Price
About this product
*Heat Shrink Bullet terminals protects splices from water and corrosion.Providing strain relief and against vibration in rugged environments，which excellently insulates and protects electronic connections.
*Copper barrel provides increased current flow, and ensures less voltage drop, preventing wiring failures and reducing equipment downtime.
*Thick copper barrel ensures a strong wiring connection every time. Your wire will never slip out of these heat shrink connectors.
*Package includes: Total 320 PCS Heat Shrink Male/Female Bullet Connectors.Wire range: 22-18 ( red ) / 16-14 ( blue ) / 12-10 ( yellow ) A.W.G., Wire range: 0.5-1.5mm² / 1.5-2.5mm² / 4-6mm²,Max current=19A / 27A / 48A.
*Strip wire insulation, crimp terminal barrel with a wire crimper, and apply heat with a heat gun while rotating a connector. Heat shrink tubing will reduce in size and adhere to the wire. No soldering kit needed. Start making secure and durable connections in seconds.
Description
Qibaok 320 Heat Shrink Male/Female Bullet Connectors Wire Terminal Kit

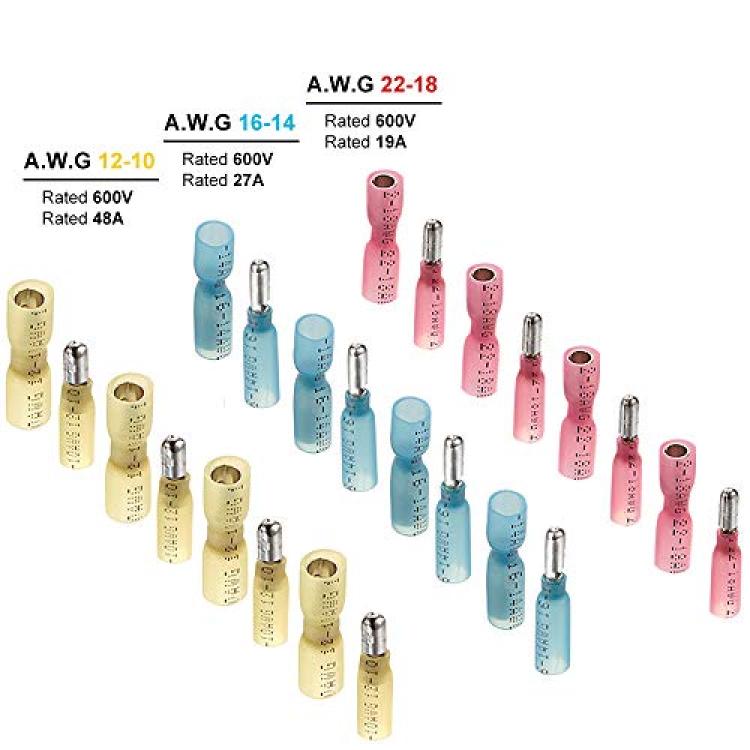

Detailed dimensions:
Red
Wire range: 0.5~1.5mm², A.W.G.:22~18, Max.current = 19A
Blue
Wire range: 1.5~2.5mm², A.W.G.:16~14, Max.current = 27A
Yellow
Wire range: 4~6mm², A.W.G.:12~10, Max.current = 48A

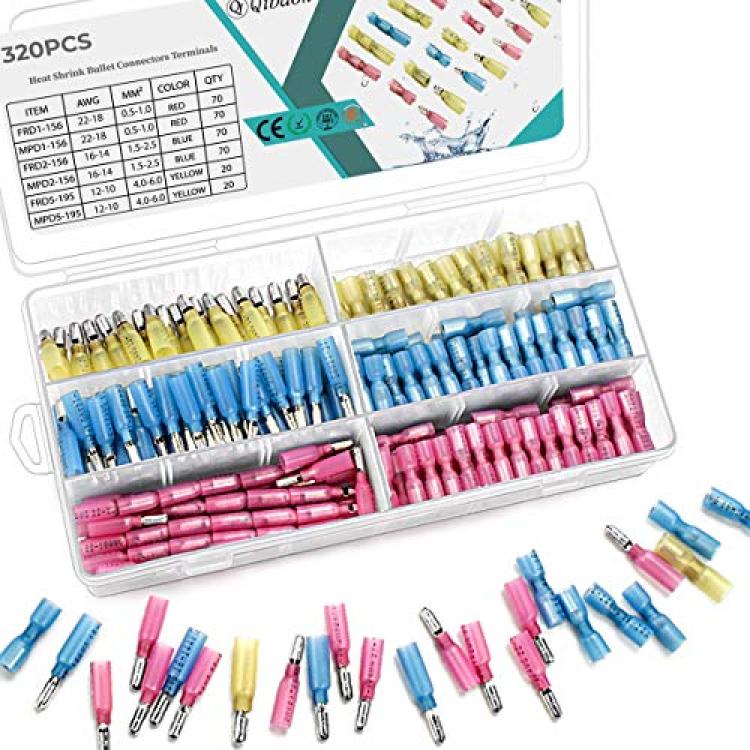

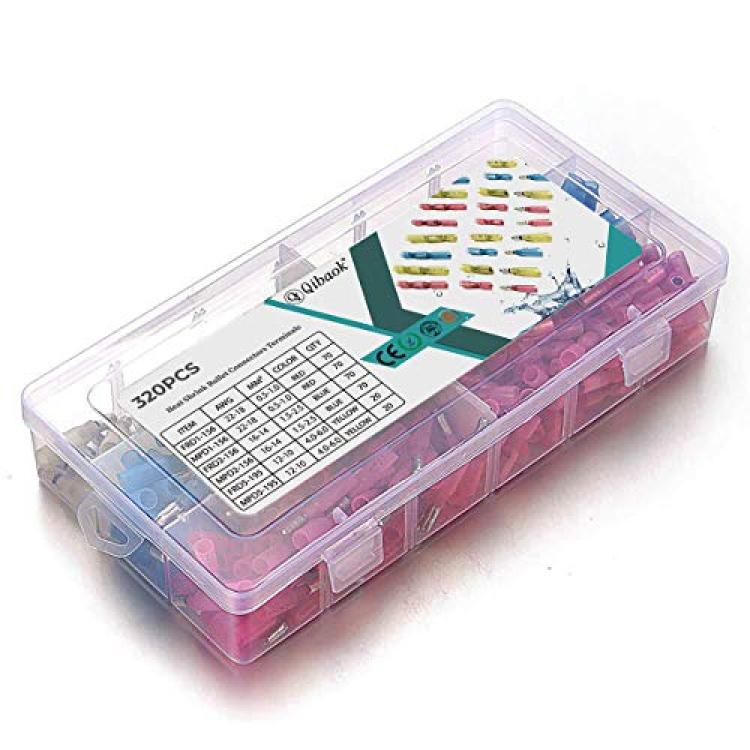

Package includes:
Total:320pcs
140 x Red Insulated Male/Female Bullet Connectors:70pcs male, 70pcs female
140 x Blue Insulated Male/Female Bullet Connectors:70pcs male, 70pcs female
40 x Yellow Insulated Male/Female Bullet Connectors:20pcs male, 20pcs female
Features:
 Shrinkage ratio 3?1
Operating temperature: -55 ? -125 ?
Minimum shrink temperature : 80?C.
Fully recovery temperature : 130?CÂ
Friendly Customer Service & Warranty
As trusted company, we always provide the best product, pre-sale and after-sale service, We guarantee that all our products are 100% Strict QC to assure the quality.
If for any reason you are not satisfied with your purchase, please do not hesitate to contact us.
